Applying Special Effects (Edge Effects) 299
Chapter
11
DME
Operations
Flex shadow

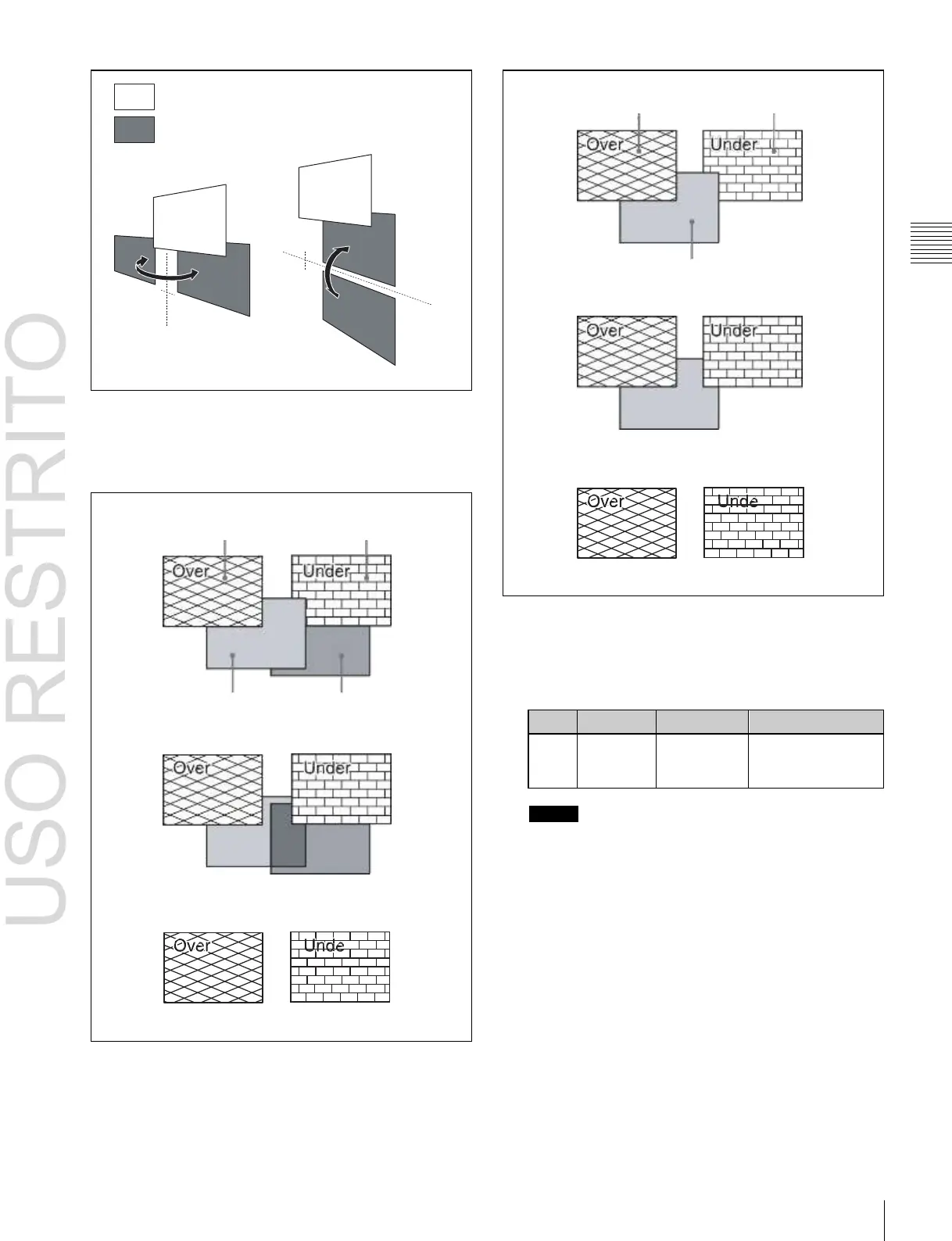

Example 2: Flex Shadow is enabled on one channel only.
Video Video
After
inversion
Before
inversion
Before
inversion
After
inversion
Shadow
No combine shadow is set.
When H is enabled When V is enabled
Setting a combine shadow
When there are several images, adds a flex shadow in the
depth of an image or overlays multiple flex shadows.
Combine shadow is enabled.
Density is set to 100.00.
Example 1: When Flex Shadow is enabled on both of two channels.
Video Video
Shadow Shadow
No combine shadow is set.
Combine shadow is enabled.
Density is set to 100.00.
Combine shadow is enabled.
Density is set to 0.00.
Combine shadow is enabled.
Density is set to 0.00.
1 In the Flex Shadow menu, press [Combine Shadow],
turning it on.
2 Adjust the following parameter.
Knob
Parameter
Adjustment
Setting values
1
Density
Density of
combine
shadow
0.00 to 100.00
Notes
• The Combine Shadow effect is applied to all
shadows, not only the sections where shadows
overlap.
• Combine Shadow is enabled when the Flex Shadow
effect and the global effect Combiner are enabled. In
this state, Combine Shadow remains enabled even if
the global effect is disabled.
• In Combine Shadow, the settings for the channel
with the lowest number among the channels being
combined are enabled.
Flex shadow creation example
The flow of flex pattern creation will be explained using
the following pattern as an example.
