Sony NEX-5T Instruction Manual

GB
12
Preparing the camera

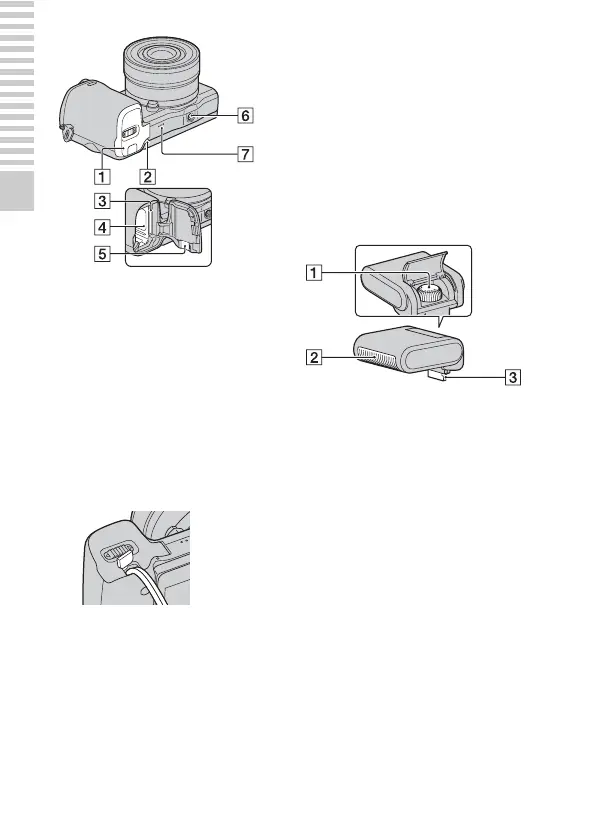

A Battery/memory card cover (14,
21)
B Access lamp (22)
C Memory card insertion slot (21)
D Battery compartment (14)
E Connection plate cover
Use this when using an AC-PW20
AC Adaptor (sold separately).
Insert the connection plate into the
battery compartment, and then pass
the cord through the connection
plate cover as shown below.
• Make sure that the cord is not
pinched when you close the
cover.
F Tripod socket hole
• Use a tripod with a screw length
of less than 5.5 mm (7/32 inch).
You will be unable to firmly
secure the camera to tripods
using screws longer than 5.5 mm
(7/32 inch), and may damage the
camera.
G Speaker
x Flash HVL-F7S
A Screw
B Flash
1)
C Connector
1)
1)
Do not touch this part directly.
If it is dirty, wipe it off with a soft
clean cloth.

Sony NEX-5T Specifications

General

Sensor Type	CMOS
Sensor Size	APS-C (23.5 x 15.6 mm)
Effective Pixels	16.1 MP
ISO Range	100-25600
Autofocus Points	25
Lens Mount	Sony E-mount
Image Processor	BIONZ
Screen Size	3.0"
Screen Resolution	921, 600 dots
Video Resolution	1920 x 1080
Video Frame Rate	60p, 60i, 24p
Maximum Shutter Speed	1/4000 sec
Minimum Shutter Speed	30 sec
Continuous Shooting	10 fps
Built-in Flash	No
External Flash	Yes (via hot shoe)
Wireless Connectivity	Wi-Fi, NFC
Battery	NP-FW50
Battery Life	330 shots
Dimensions	110.8 x 58.8 x 38.9 mm
Weight	276 g (with battery and memory card)
