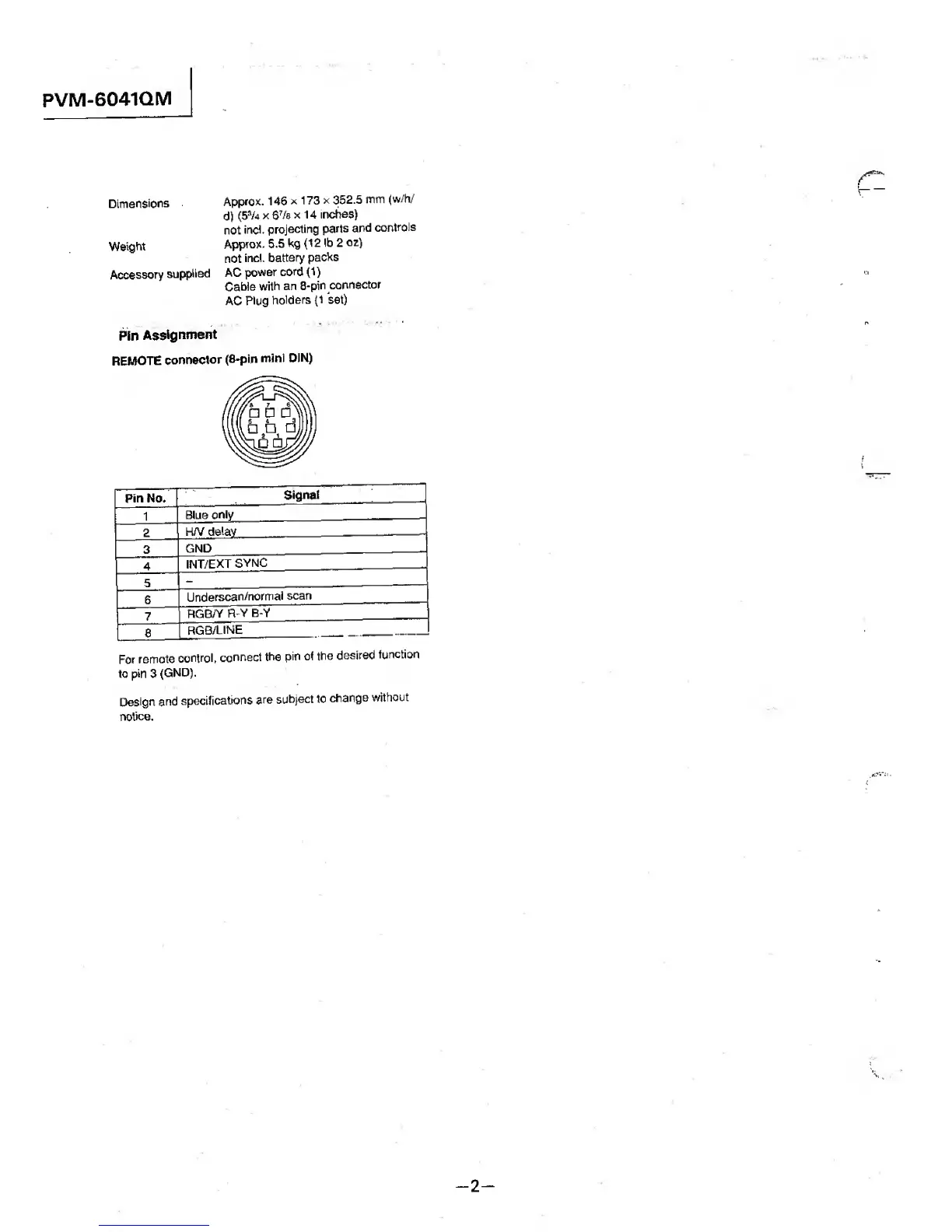

Sony PVM-6041QM - Page 2

PVM-6041QI\/I
Dimensions
Weight
Accessory
supplied
Approx.
146
X 173
X 352.5
mm
(w/h/
d)
(5V4
X 6Vs
X 1 4
inches)
not
inch
projecting
parts
and
controls
Approx.
5.5 kg (12
lb 2
oz)
not
ind.
battery
packs
AC
power
cord
(1)
Cable
with
an
8-pin
connector
AC
Plug
holders
(1
set)
Plrj
Assignment
REMOTE
connector
(8-pin
mini DIN)
Pin
No.
Signal
1
Blue
only
2
H/V
delay
3
GND
4
INT/EXT
SYNC
5
_
6
Underscan/normai
scan
7
RGB/Y
R-Y
B-Y
e
RGB/LINE
For
remote
control,
connect
the
pin of
the
desired
function
to
pin
3
(GND).
Design and
specifications
are
subject to
change
without
notice.
