6-8
YES
YES
YES
YES
YES
YES
YES
YES
YES
YES

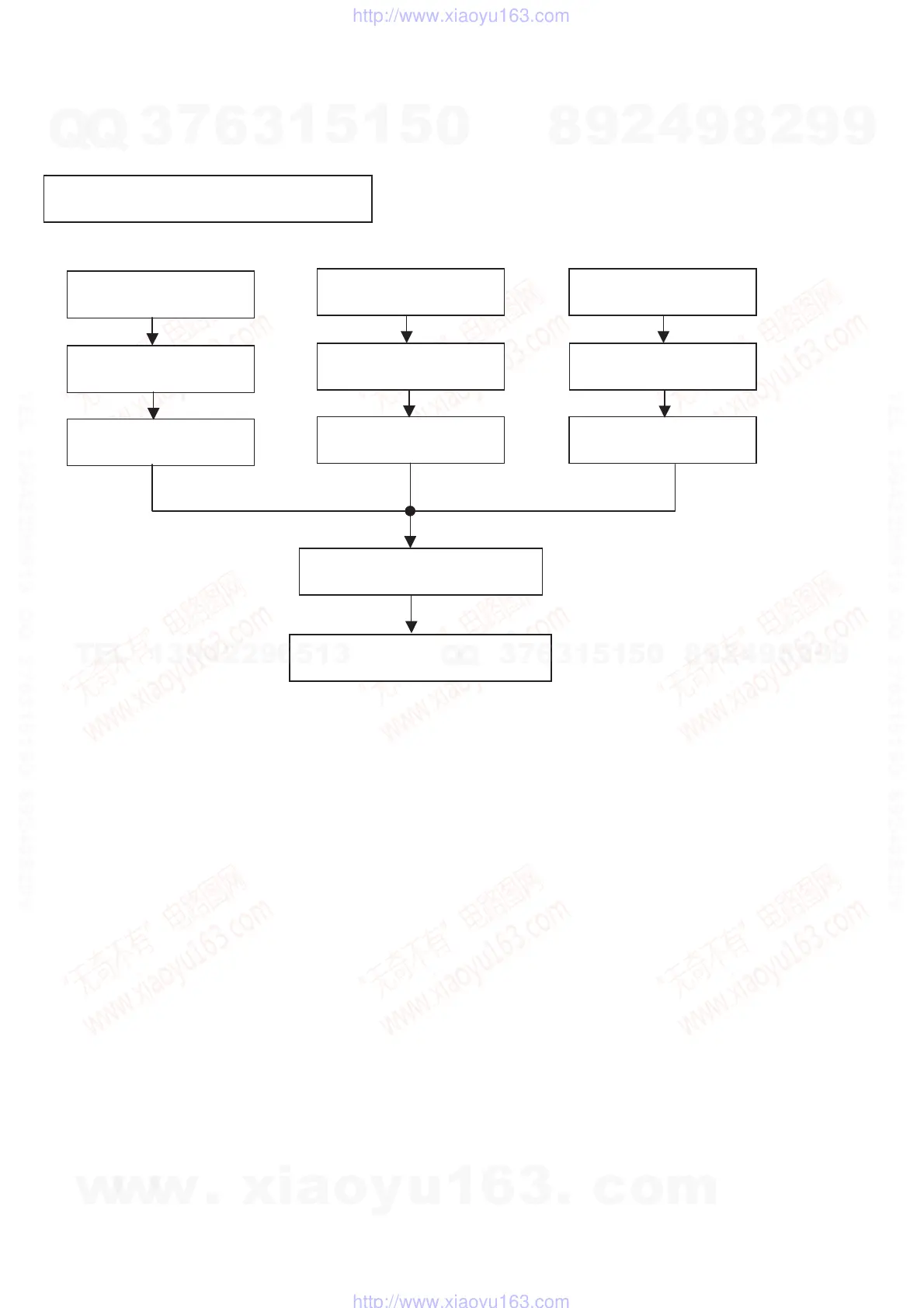

NO Composite/S-video when playing DISC
No Composite signal?
Check IC708(4,23)
Check IC301(157)
S_VIDEO:No Y signal?
Check IC708(6)
Check IC301(154)
Check IC301(131):VIN_CLK
Check IC301:ATAPI interface
Power,System CLK
S_VIDEO:No C signal?
Check IC708(2)
Check IC301(151)
