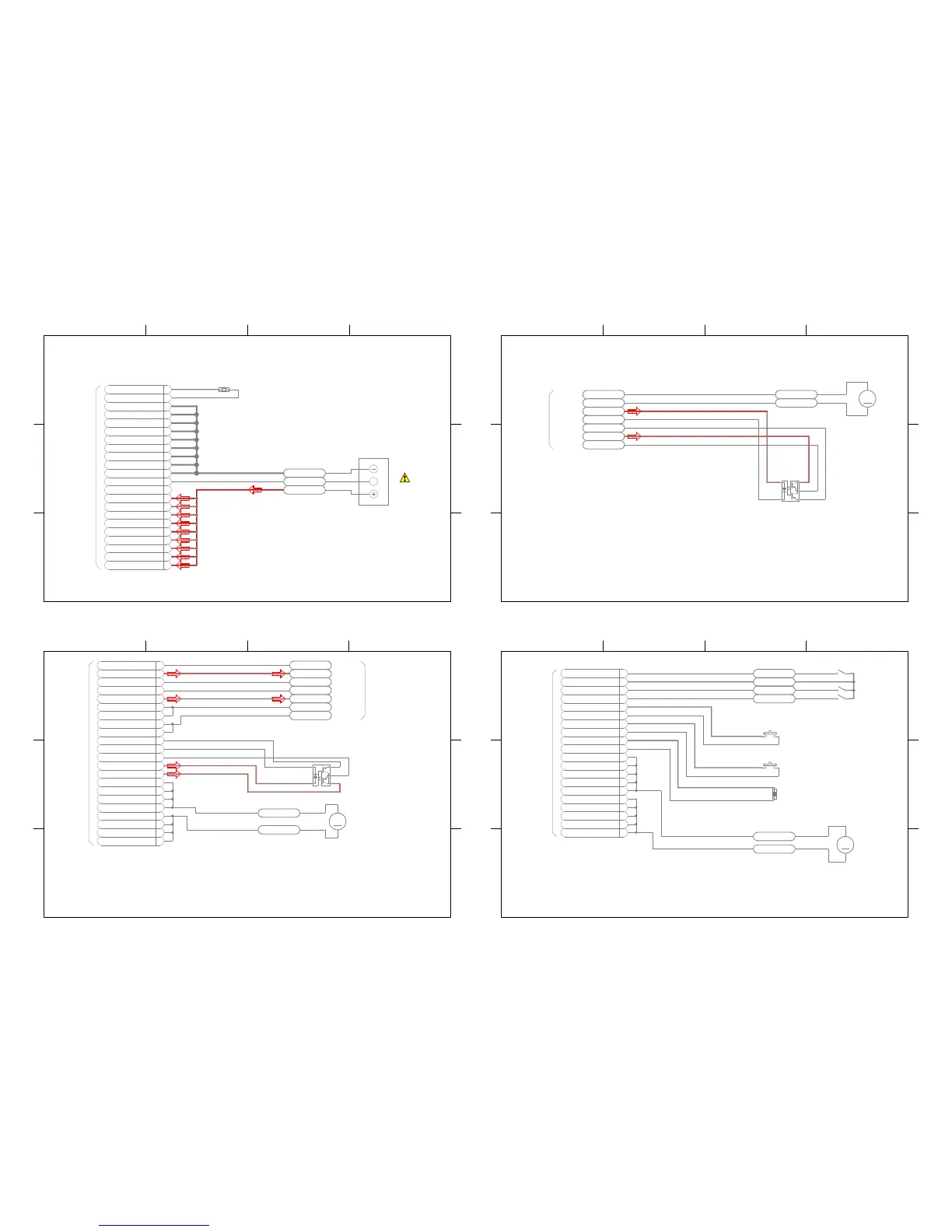

SLT-A33/A33L/A33Y/A55/A55V/A55L/A55VL/A55VY_L3
6-30
1 2 3 4
A
B
C
A
B
C
29
(2/22)
(PAGE 6-6)
CN0501
AM-022
TH7201
LN7204
BATT_UNREG
LN7203
BATT_IB_1
LN7202
PGND
LN7201 22P
1REG_GND
2BATT_TEMP
3PGND
4PGND
5PGND
6PGND
7PGND
8PGND
9PGND
10PGND
11PGND
12BATT_IB_1
13NC
14BATT_UNREG
15BATT_UNREG
16BATT_UNREG
17BATT_UNREG
18BATT_UNREG
19BATT_UNREG
20BATT_UNREG
21BATT_UNREG
22BATT_UNREG
TERMINAL
( )
BATTERY
BT901
s
BOARD
Note: TH7201 is not supplied, but this is included in BT-062 flexible complete board.
BATTERY TERMINAL
BT-062 FLEXIBLE BOARD
1 2 3 4
A
B
C
A
B
C
29
PH8101
RPI-151
1
2
5
4
3
LN8109
AF_M+
LN8110
AF_M-
LN8107
FM-
LN8104
IRIS_PI_E_2
LN8105
IRIS_PI_K
LN8102
IRIS_PI_E_1
LN8106
IRIS_PI_A
LN8103
IRIS_PI_C
LN8108
FM+
LN8101 22P
1IRIS_PI_E_1
2IRIS_PI_C
3IRIS_PI_E_2
4IRIS_PI_K
5IRIS_PI_A
6IRIS_M-
7IRIS_M-
8IRIS_M+
9IRIS_M+
10AF_PI_E_2
11AF_PI_K
12AF_PI_E_1
13AF_PI_A
14AF_PI_C
15AF_M+
16AF_M+
17AF_M+
18AF_M+
19AF_M-
20AF_M-
21AF_M-
22AF_M-
AF MOTOR
ROTATION DETECT
M901
(AF MOTOR)
(20/22)
(PAGE 6-22)
CN3401
AM-022
LN8201-LN8207
FLEXIBLE
(PAGE 6-30)
AP-035
Note: AFP-006 flexible complete board and all mounted parts are not supplied,
but they are included in AF driving unit.
M
AFP-006 FLEXIBLE BOARD
AF MOTOR
AFP-006 flexible complete board is replaced as AF driving unit,
( )
so that PRINTED WIRING BOARD is omitted.
1 2 3 4
A
B
C
A
B
C
29
Note: AP-035 flexible complete board and all mounted parts are not supplied,
but they are included in AP aperture unit.
PH8201
RPI-151
APERTURE MOTOR
ROTATION DETECT
LN8201
FM+
LN8209
FM-
LN8202
FM-
LN8203
IRIS_PI_A
LN8207
IRIS_PI_E_1
LN8206
IRIS_PI_C
LN8205
IRIS_PI_E_2
LN8204
IRIS_PI_K
LN8208
FM+
1
2
5
4
3
M902
(APERTURE MOTOR)
LN8102-LN8108
FLEXIBLE
(PAGE 6-30)
AFP-006
M
AP-035 FLEXIBLE BOARD
APERTURE MOTOR
( )
AP-035 flexible complete board is replaced as AP aperture unit,
so that PRINTED WIRING BOARD is omitted.
1 2 3 4
A
B
C
A
B
C
29
LN8406
CM-
LN8407
CM+
LN8403
XCHARGE_CAM_GND
LN8404
XCHARGE_CAM_3
LN8405
XCHARGE_CAM_1
LN8402
XCHARGE_CAM_2
S8402
S8401
LN8401
20P
1CM+
2CM+
3CM+
4CM+
5CM+
6CM-
7CM-
8CM-
9CM-
10CM-
11CM_TEMP
12TEMP_GND
13XAF_MODE_SW
14REG_GND
15XLENS_RELEASE_SW
16XLENS_RELEASE_GND
17XCHARGE_CAM_1
18XCHARGE_CAM_3
19XCHARGE_CAM_GND
20XCHARGE_CAM_2
TH8401
(20/22)
(PAGE 6-22)
CN3402
AM-022
(LENS RELEASE)
(FOCUS MODE)
DETECT
CHARGE CAM
( )
M903
(CHARGE MOTOR)
Note: SLK-008 flexible complete board and M903 are not supplied,
but they are included in MB shutter charge unit.
M
SLK-008 FLEXIBLE BOARD
CHARGE MOTOR
