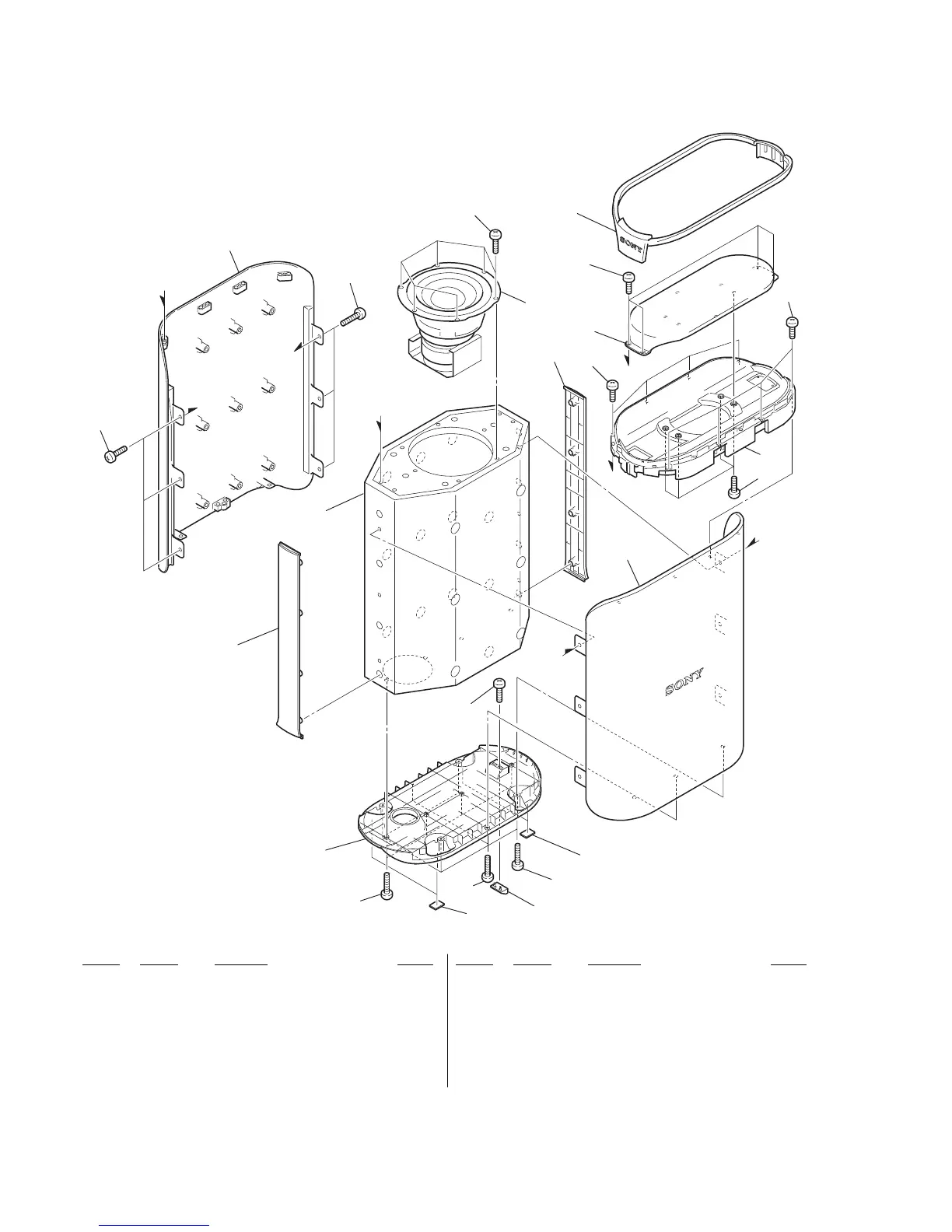

Sony SS-TS7 - SS-WS6 Speaker Assembly Details; SS-WS6 Exploded View and Parts

SS-CT6/SC6/TS6/TS7/WS6
6
SS-WS6
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201 4-249-110-01 DECORATION
202 4-249-109-01 TOP COVER
203 X-4955-864-1 SUB ASSY, TOP CASE
204 4-229-966-01 SCREW (4X16), +BV TAPPING
205 4-249-717-01 SIDE PANEL(LH)
206 4-249-716-01 SIDE PANEL(RH)
207 4-249-718-01 FRONT COVER
208 4-249-106-01 FOOT
209 4-249-105-01 TERMINAL
211 4-247-528-01 SCREW (3.5X12)
210 4-241-456-01 SCREW (4X20), (+B)(BZN), WOOD
212 7-685-661-19 SCREW (4X12), +BV
213 4-252-301-01 SCREW (4X24), TAPPING
SP5 1-825-590-11 SPEAKER (16cm)
a
b
b
c
c
d
d
a
SP5
not supplied
not supplied
204
205
207
207
201
213
211
210
211
204
206
208
208
209
204
212
203
202
204
204
204
