SS-WMSP80

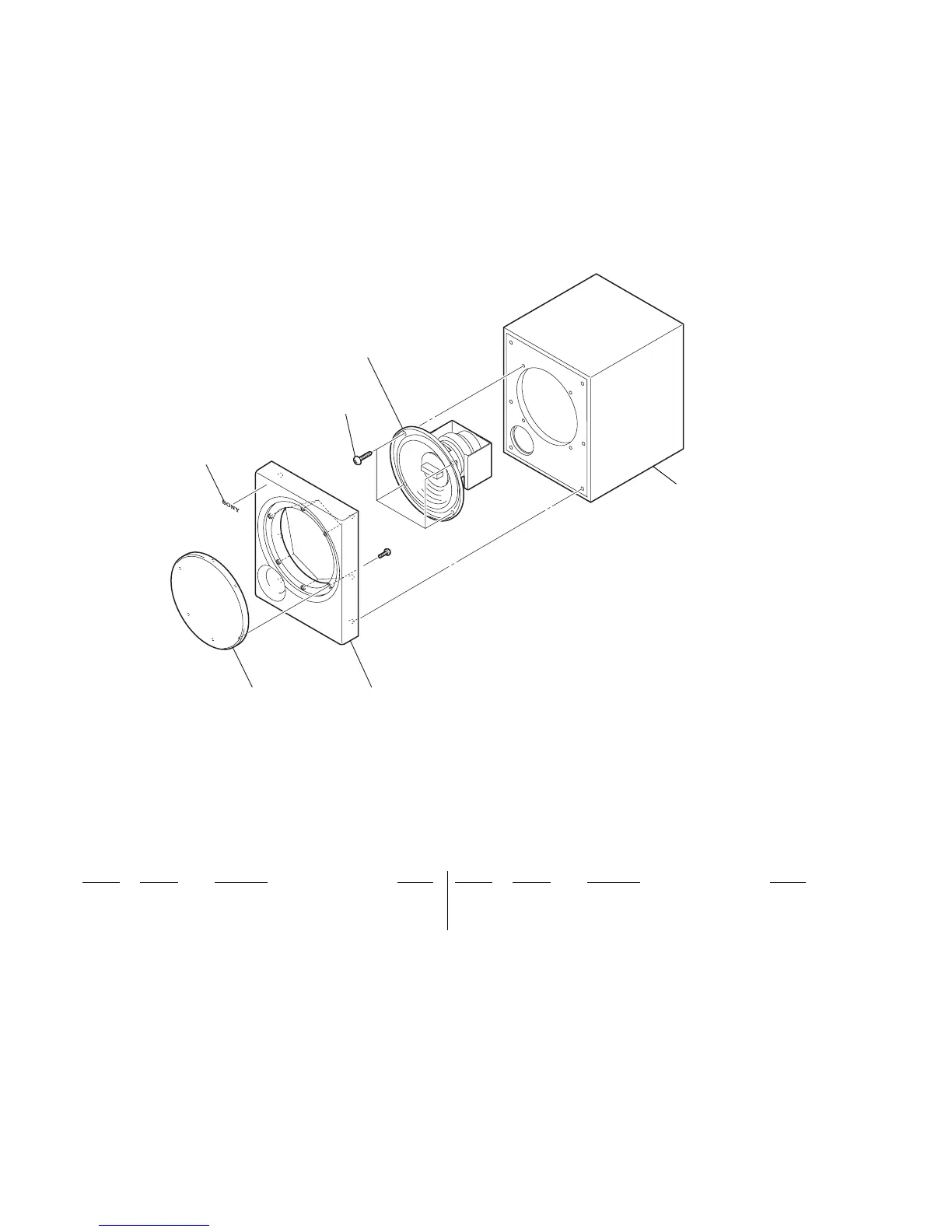

EXPLODED VIEW AND PARTS LIST
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
1 4-243-842-01 FRAME, GRILLE
2 4-998-417-02 EMBLEM (NO.5), SONY
3 4-244-708-01 FRONT (PANEL)
4 4-235-677-01 SCREW (4X20) (TYPE1), +BVTP
SP1 1-825-004-13 SPEAKER (20cm)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
1
2
3
4
#1
SP1
not
supplie
