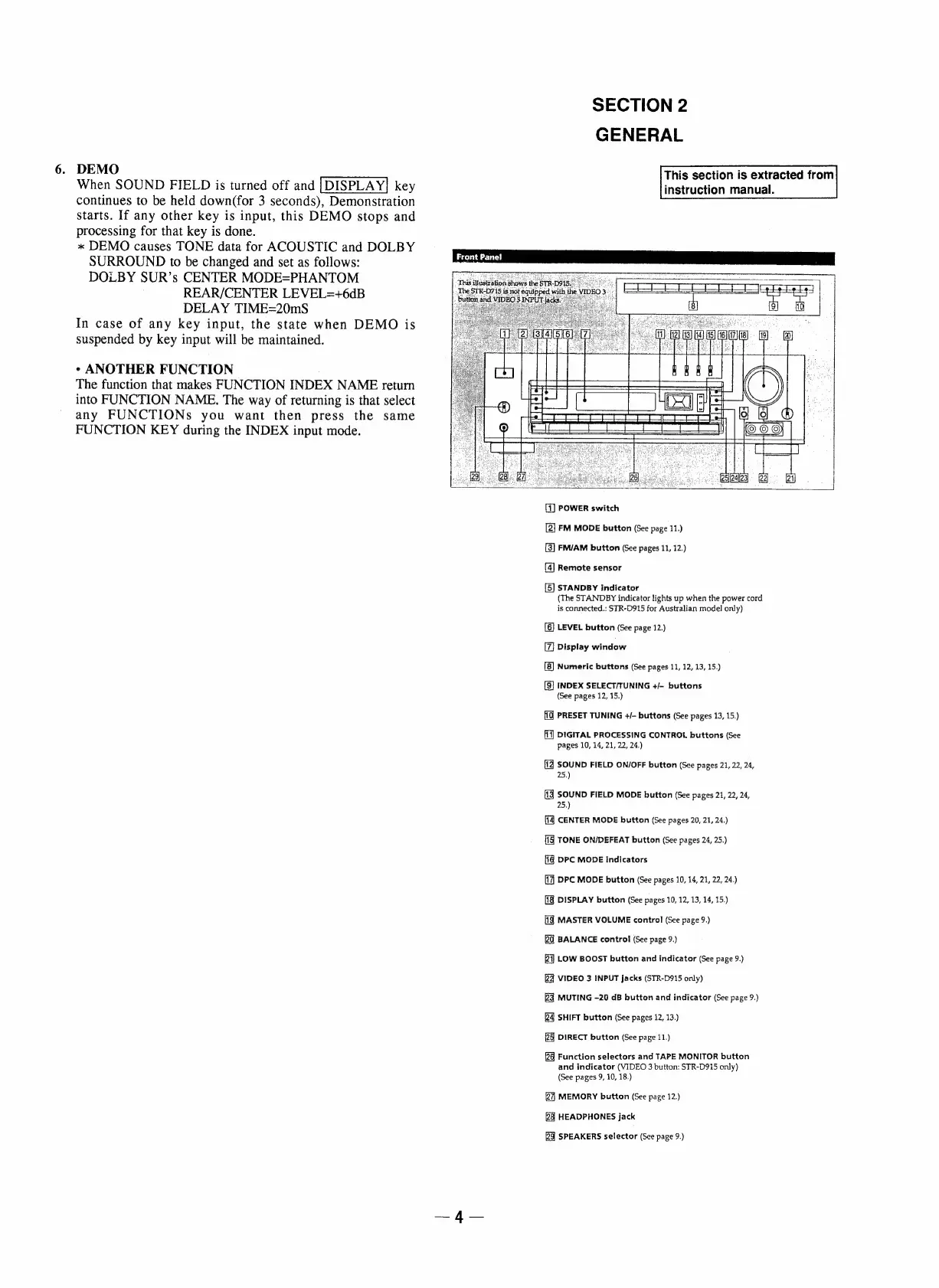

Sony STR-D715 Service Manual

SECTION 2
GENERAL
6.
DEMO
i
ion
is
extracted
from
When
SOUND
FIELD
is
turned
off
and
key
continues
to
be
held
down(for
3
seconds),
Demonstration
starts.
If
any
other
key
is
input,
this
DEMO stops
and
processing
for that
key
is
done.
* DEMO causes TONE data for ACOUSTIC and DOLBY ;
SURROUND to be changed and set as follows: comes
DOLBY SUR’s CENTER MODE=PHANTOM rig Maat
REAR/CENTER LEVEL=+6dB
DELAY TIME=20mS
In case of any key input, the state when DEMO is
suspended by key input will be maintained.
* ANOTHER FUNCTION
The function that makes FUNCTION INDEX NAME return
into FUNCTION NAME. The way of returning is that select
any FUNCTIONs you want then press the same
FUNCTION KEY during the INDEX input mode.
se lesledieg. 2g |
POWER switch
[2] FM MODE button (See page 11.)
FM/AM button (See pages 11, 12.)
[4] Remote sensor
STANDBY indicator
(The STANDBY indicator lights up when the power cord
is connected.: STR-D915 for Australian model only)
[6] LEVEL button (See page 12.)
Display window
Numeric buttons (See pages 11, 12, 13, 15.)
[9] INDEX SELECT/TUNING 4+/- buttons
(See pages 12, 15.)
ff PRESET TUNING +/- buttons (See pages 13, 15.)
DIGITAL PROCESSING CONTROL buttons (See
pages 10, 14, 21, 22, 24.)
SOUND FIELD ON/OFF button (See pages 21, 22, 24,
25.)
[{[3 SOUND FIELD MODE button (See pages 21, 22, 24,
25.)
{4 CENTER MODE button (See pages 20, 21, 24.)
[9 TONE ON/DEFEAT button (See pages 24, 25.)
{fig DPC MODE indicators
DPC MODE button (See pages 10, 14, 21, 22, 24.)
{f§ DISPLAY button (See pages 10, 12, 13, 14, 15.)
[ig MASTER VOLUME control (See page 9.)
BALANCE control (See page 9.)
21] LOW BOOST button and indicator (See page 9.)
22 VIDEO 3 INPUT jacks (STR-D915 only)
MUTING -20 dB button and indicator (See page 9.)
24 SHIFT button (See pages 12, 13.)
DIRECT button (See page 11.)
26 Function selectors and TAPE MONITOR button
and indicator (VIDEO 3 button: STR-D915 only)
(See pages 9, 10, 18.)
2] MEMORY button (See page 12.)
HEADPHONES jack
29 SPEAKERS selector (See page 9.)
