Sony STR-DB840 Service Manual

59

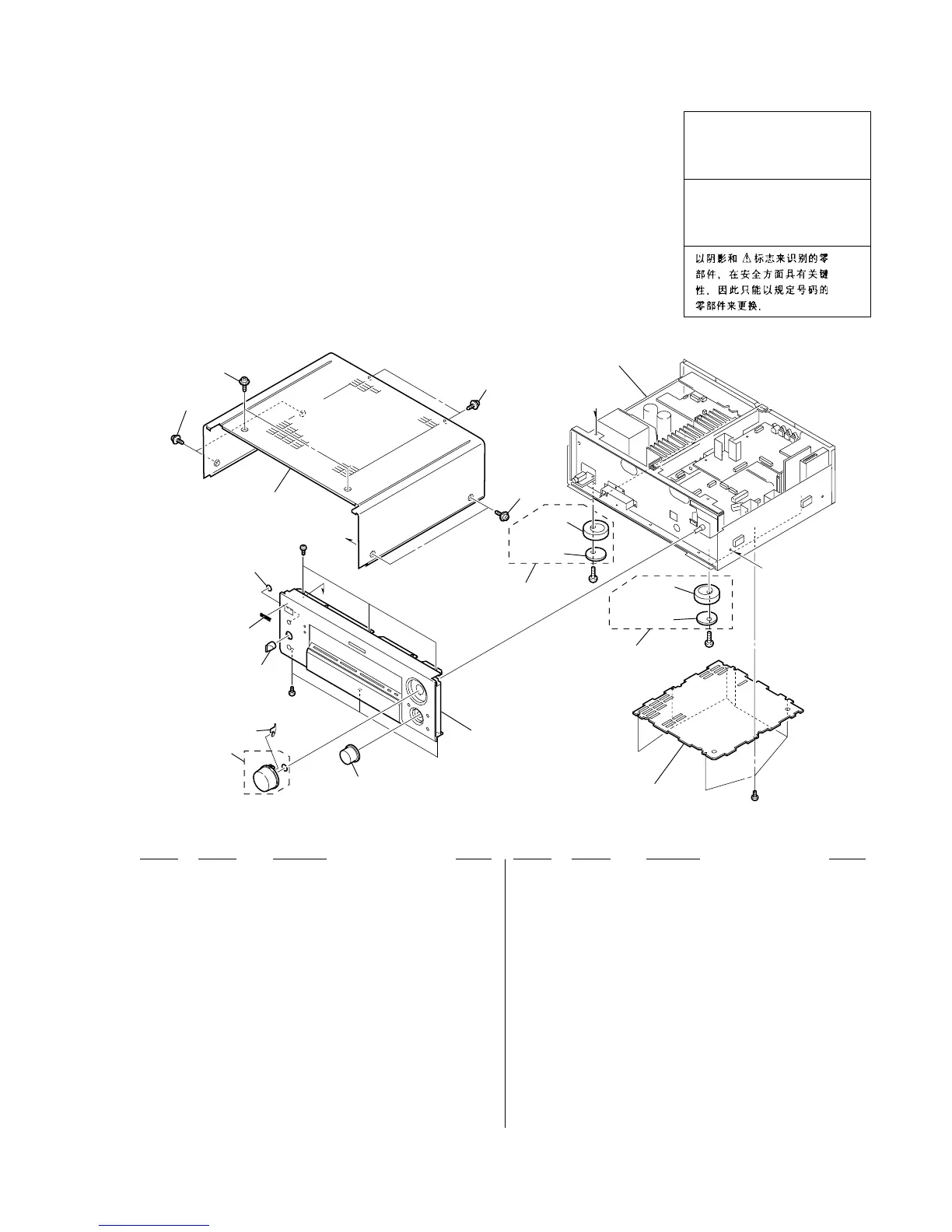

(1) CASE SECTION
SECTION 5
EXPLODED VIEWS
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
AUS : Australian model
CH : Chinese model
CND : Canadian model
A
B
B
A
#1
#1
#1
#5
#5
2
3
4
5
12
10
6
7
7
7
7
front panel section
chassis section
8
11
11
8
not
supplied
not
supplied
not
supplied
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
2 X-4948-601-1 KNOB (FUNC) ASSY (BLACK)
(US, CND, AEP, UK, AUS)
2 X-4948-634-1 KNOB (FUNC) ASSY (E, CH)
2 X-4950-280-1 KNOB (FUNC) ASSY (SILVER) (AEP, UK, AUS)
3 X-3375-592-1 KNOB (VOL) ASSY (BLACK)
(US, CND, AEP, UK, AUS)
3 X-4949-977-1 KNOB (VOL) ASSY (E, CH)
3 X-4950-340-1 KNOB (VOL) ASSY (SILVER) (AEP, UK, AUS)
4 4-998-207-11 INDICATOR (VOL)
5 4-957-383-01 KNOB (F14) (BLACK) (US, CND, AEP, UK, AUS)
5 4-957-383-21 KNOB (F14) (E, CH)
5 4-957-383-41 KNOB (F14) (SILVER) (AEP, UK, AUS)
* 6 X-4950-431-1 CASE ASSY (BLACK) (US, CND, AEP, UK, AUS)
* 6 X-4950-432-1 CASE ASSY (SILVER) (AEP, UK, AUS)
* 6 X-4950-437-1 CASE ASSY (CH)
6 X-4952-845-1 CASE ASSY (E)
7 4-227-843-01 SCREW (TP), FLAT HEAD (BLACK)
(US, CND, AEP, UK, AUS)
7 4-227-843-11 SCREW (TP), FLAT HEAD (SILVER)
(AEP, UK, E, AUS, CH)
8 4-970-123-41 FOOT (F50180S) (US, CND)
8 4-970-123-51 FOOT (F50180S) (AEP, UK, AUS)
8 4-970-123-61 FOOT (F50180S) (E, CH)
10 4-980-776-01 WINDOW, REMOTE CONTROL
11 X-4952-818-1 FOOT ASSY (F50180S) (US, CND)
11 X-4949-523-1 FOOT ASSY (F50180S) (AEP, UK, AUS)
11 X-4949-878-1 FOOT ASSY (F50180S) (E, CH)
12 4-942-568-41 EMBLEM (NO.5), SONY (BLACK)
(US, CND, AEP, UK, AUS)
12 4-942-568-51 EMBLEM (NO.5), SONY (E, CH)
12 4-942-568-61 EMBLEM (NO.5), SONY (SILVER)
(AEP, UK, AUS)

Sony STR-DB840 Specifications

General

Digital inputs	2 Optical, 1 Coaxial
Power output	100 watts per channel into 8Ω (stereo)
Frequency response	10Hz to 100kHz
Total harmonic distortion	0.09%
Input sensitivity	2.5mV (MM), 200mV (line)
Speaker load impedance	8 ohms
Dimensions	430 x 157mm
Tuning range	FM, MW
Video Connections	composite
