Sony TA-E1000ESD Operating Instructions

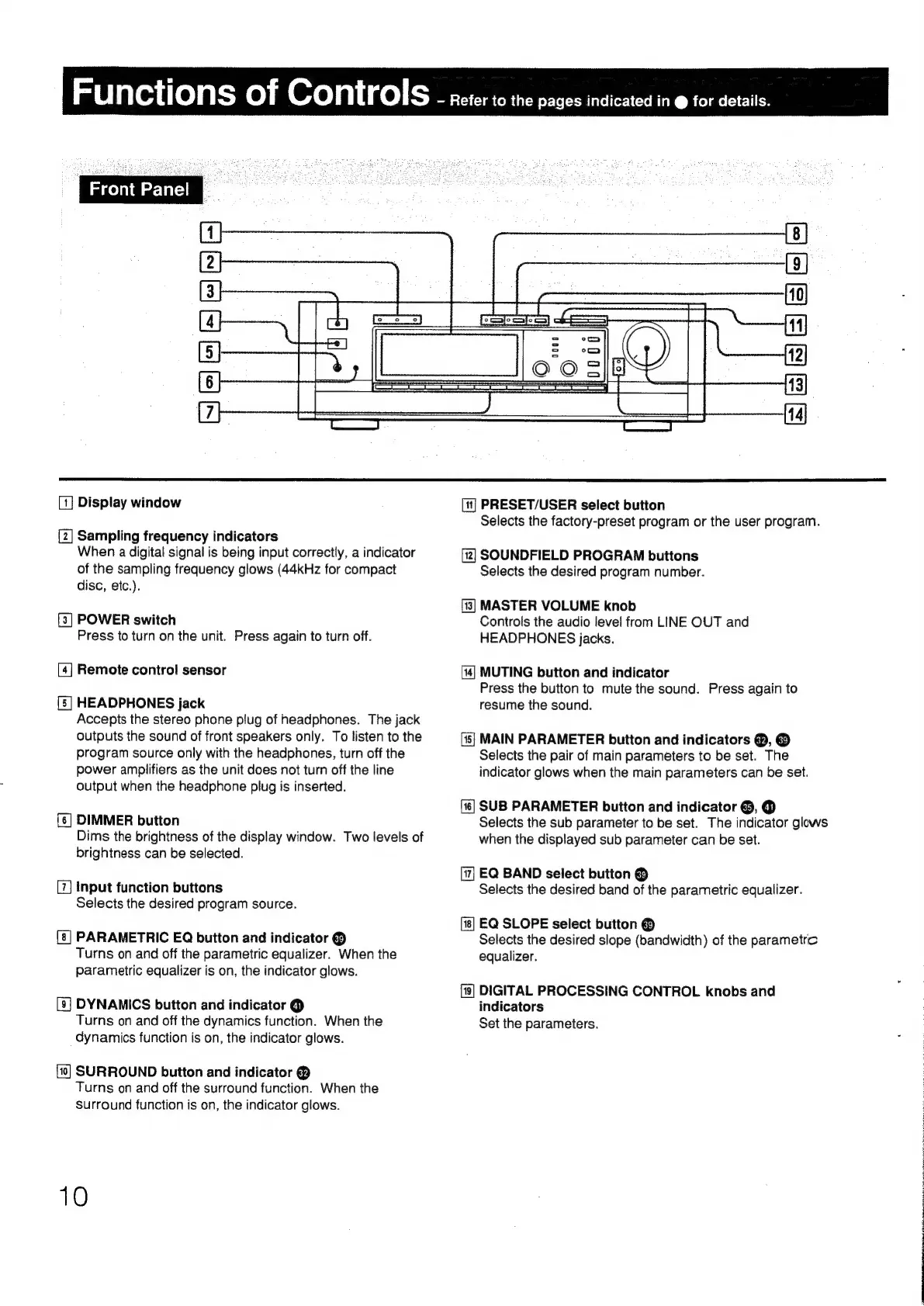

Front Panel §
al Ula vey ice) ats re) j ‘Oey aiige) t= - Refer to the pages indicated in @ for details.
=] &] S) &) &S) (>) (|
SI} ] ) &) eS)
[1] Display window
[2] Sampling frequency indicators
When a digital signal is being input correctly, a indicator
of the sampling frequency glows (44kHz for compact
disc, etc.).
(3] POWER switch
Press to turn on the unit. Press again to turn off.
[4] Remote contro! sensor
[5] HEADPHONES jack
Accepts the stereo phone plug of headphones. The jack
outputs the sound of front speakers only. To listen to the
program source only with the headphones, turn off the
power amplifiers as the unit does not turn off the line
output when the headphone plug is inserted.
[6] DIMMER button
Dims the brightness of the display window. Two levels of
brightness can be selected.
Input function buttons
Selects the desired program source.
PARAMETRIC EQ button and indicator ©
Turns on and off the parametric equalizer. When the
parametric equalizer is on, the indicator glows.
[9] DYNAMICS button and indicator @
Turns on and off the dynamics function. When the
dynamics function is on, the indicator glows.
SURROUND button and indicator @
Turns on and off the surround function. When the
surround function is on, the indicator glows.
10
[it] PRESET/USER select button
Selects the factory-preset program or the user program.
[2] SOUNDFIELD PROGRAM buttons
Selects the desired program number.
{3} MASTER VOLUME knob
Controls the audio level from LINE OUT and
HEADPHONES jacks.
MUTING button and indicator
Press the button to mute the sound. Press again to
resume the sound.
[6] MAIN PARAMETER button and indicators @, ©
Selects the pair of main parameters to be set. The
indicator glows when the main parameters can be set.
SUB PARAMETER button and indicator @, @
Selects the sub parameter to be set. The indicator glows
when the displayed sub parameter can be set.
EQ BAND select button ©
Selects the desired band of the parametric equalizer.
EQ SLOPE select button @
Selects the desired slope (bandwidth) of the parametric
equalizer.
DIGITAL PROCESSING CONTROL knobs and
indicators
Set the parameters.

Sony TA-E1000ESD Specifications

General

Total Harmonic Distortion	0.005%
Signal to Noise Ratio	110dB
Release Year	1990
Input Sensitivity	150mV
Input Impedance	50k ohms
Output	2V (Pre out)
Output Impedance	1 kOhm
Frequency Response	2Hz-200kHz
