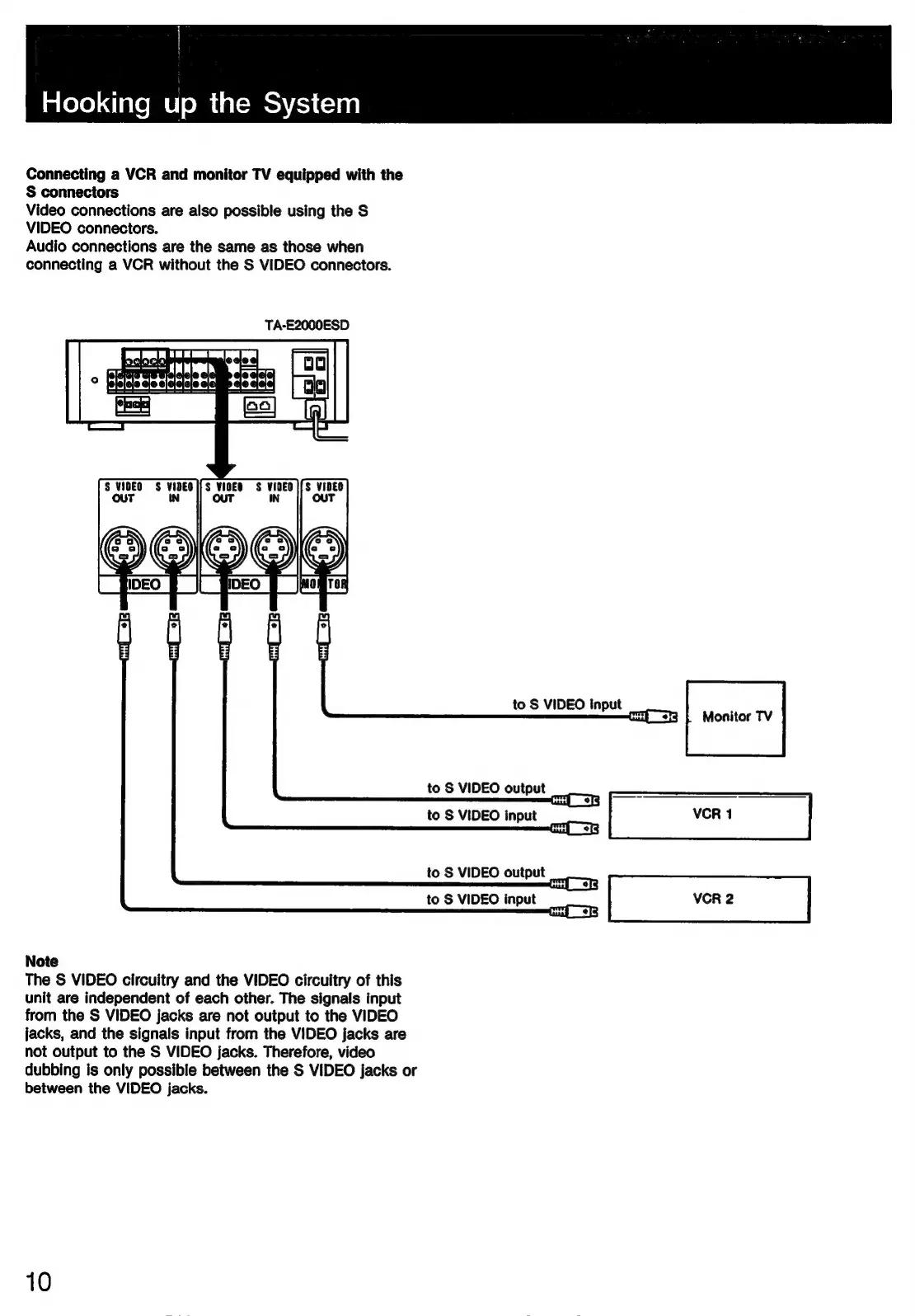

Connecting a VCR and monitor TV equipped with the
S connectors
Video connections are also possible using the S
VIDEO connectors.
Audio connections are the same as those when
connecting a VCR without the S VIDEO connectors.
TA-E2000ESD
Deloclobieblmviggle cle
o RRSeSeicele seem ses EE
S$ VIDEO $ VIDEO]; S YIOE
OUT IN
OuT
to S VIDEO input
Lanne
to S VIDEO output
to S VIDEO input
to S VIDEO output
easel
Note
to S VIDEO input
The S VIDEO circuitry and the VIDEO circuitry of this
unit are independent of each other. The signals input
from the S VIDEO jacks are not output to the VIDEO
jacks, and the signals input from the VIDEO jacks are
not output to the S VIDEO jacks. Therefore, video
dubbing is only possible between the S VIDEO jacks or
between the VIDEO jacks.
