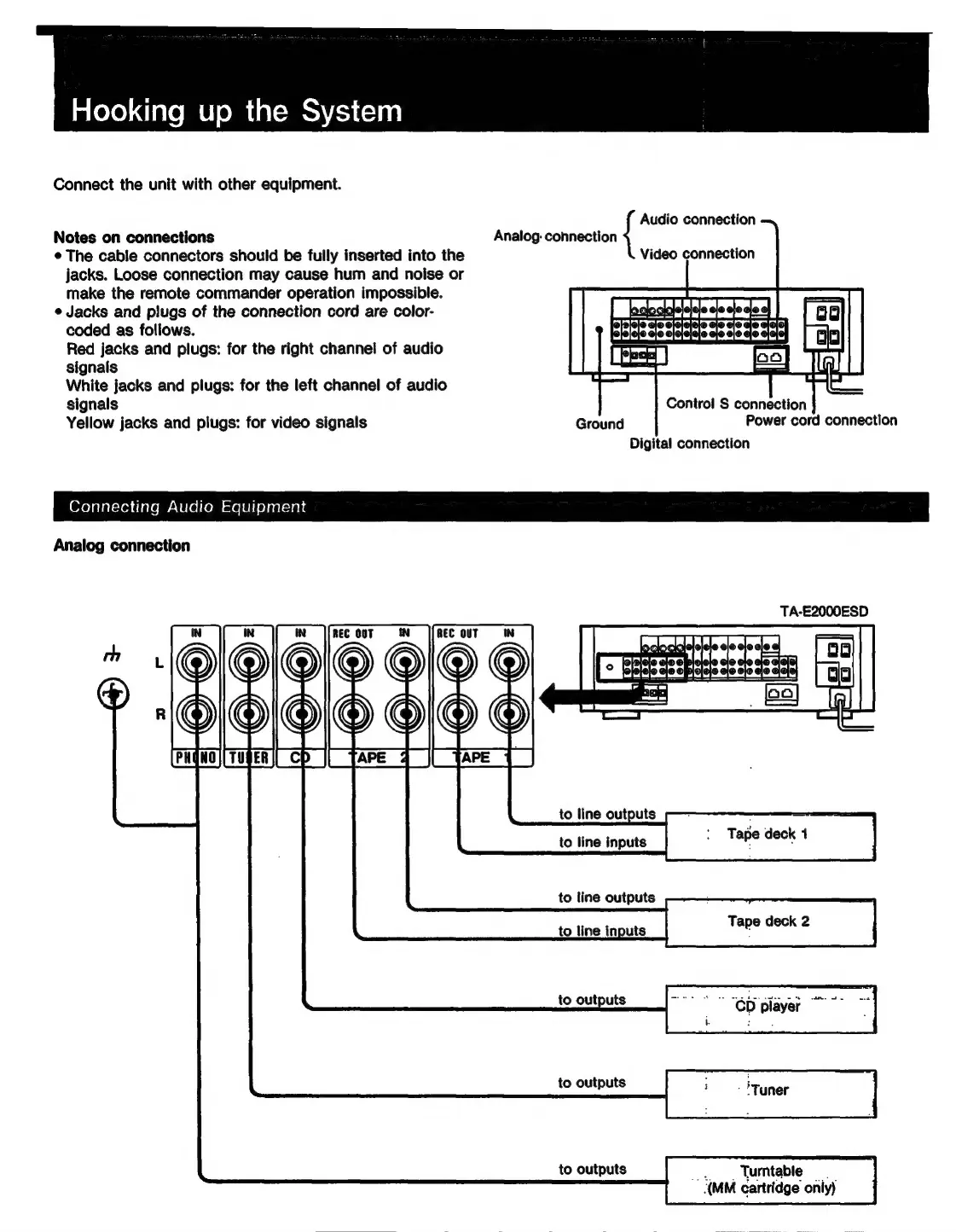

Hooking up the System
Connect the unit with other equipment.
Audio connection
Notes on connections Analog: connection {
¢ The cable connectors should be fully inserted into the
jacks. Loose connection may cause hum and noise or
make the remote commander operation impossible.
e Jacks and plugs of the connection cord are color-
coded as follows.
Red jacks and plugs: for the right channel of audio
signals
White jacks and plugs: for the left channel of audio
signals
Yellow jacks and plugs: for video signals
Video connection
Power cord connection
Digital connection
(Oe) elTelsron diatom Velellemm storelie)satczens
Analog connection
TA-E2000ESD
to outputs Mees pe Turntable -
(MM cartridge only)
