Sony TA-F333ESL Service Manual

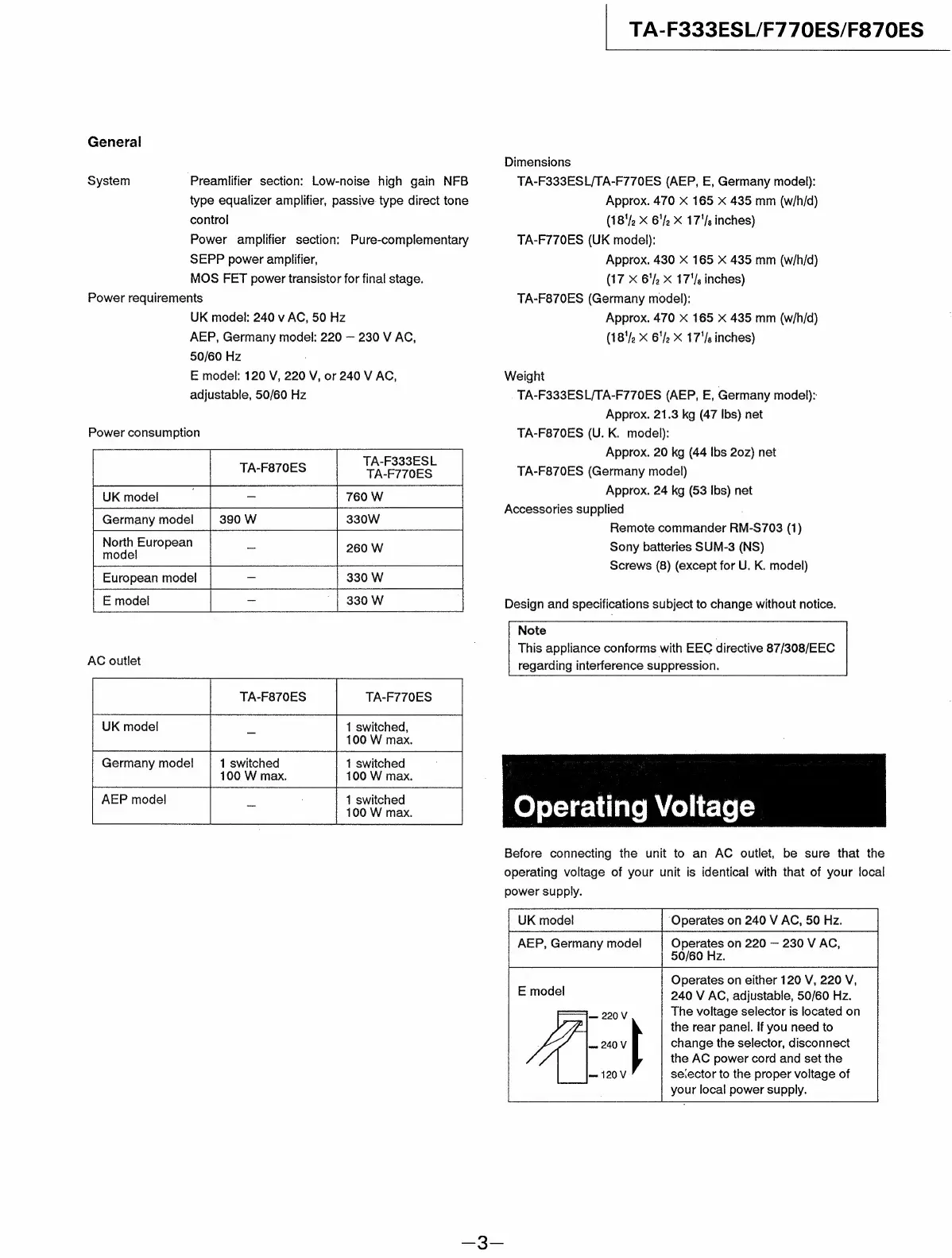

General
System Preamlifier section: Low-noise high gain NFB
type equalizer amplifier, passive type direct tone
control
Power amplifier section: Pure-complementary
SEPP power amplifier,
MOS FET power transistor for final stage.
Power requirements
UK model: 240 v AC, 50 Hz
AEP, Germany model: 220 — 230 V AC,
50/60 Hz
E model: 120 V, 220 V, or 240 V AC,
adjustable, 50/60 Hz
TA-F333ESL
TA-F870ES TA-F770ES
Germany model | 390 W
Power consumption
model
AC outlet
UK model 1 switched,
100 W max.
Germany model 1 switched 1 switched :
100 W max. 100 W max.
AEP model 1 switched
100 W max.
TA-F333ESL/F770ES/F870ES
Dimensions
TA-F333ESL/TA-F770ES (AEP, E, Germany model):
Approx. 470 X 165 X 435 mm (w/h/d)
(18'/2 X 6'/2 X 17'/s inches)
TA-F770ES (UK model):
Approx. 430 X 165 X 435 mm (w/h/d)
(17 X 6/2 X 17'/s inches)
TA-F870ES (Germany model):
Approx. 470 X 165 X 435 mm (w/h/d)
(18'/2 X 6'/2 X 17'/s inches)
Weight
TA-F333ESL/TA-F770ES (AEP, E, Germany model):
Approx. 21.3 kg (47 Ibs) net
TA-F870ES (U. K. model):
Approx. 20 kg (44 lbs 20z) net
TA-F870ES (Germany model)
Approx. 24 kg (53 Ibs) net
Accessories supplied
Remote commander RM-S703 (1)
Sony batteries SUM-3 (NS)
Screws (8) (except for U. K. model)
Design and specifications subject to change without notice.
Note
This appliance conforms with EEC directive 87/308/EEC
regarding interference suppression.
Operating Voltage
Before connecting the unit to an AC outlet, be sure that the
operating voltage of your unit is identical with that of your local
power supply.
UK model ‘Operates on 240 V AC, 50 Hz.
AEP, Germany model Operates on 220 — 230 V AC,
50/60 Hz.
Operates on either 120 V, 220 V,
E model 240 V AC, adjustable, 50/60 Hz.
— 220V The voltage selector is located on
the rear panel. If you need to
wee 240 V change the selector, disconnect
the AC power cord and set the
—120V se.ector to the proper voltage of
your local power supply.
