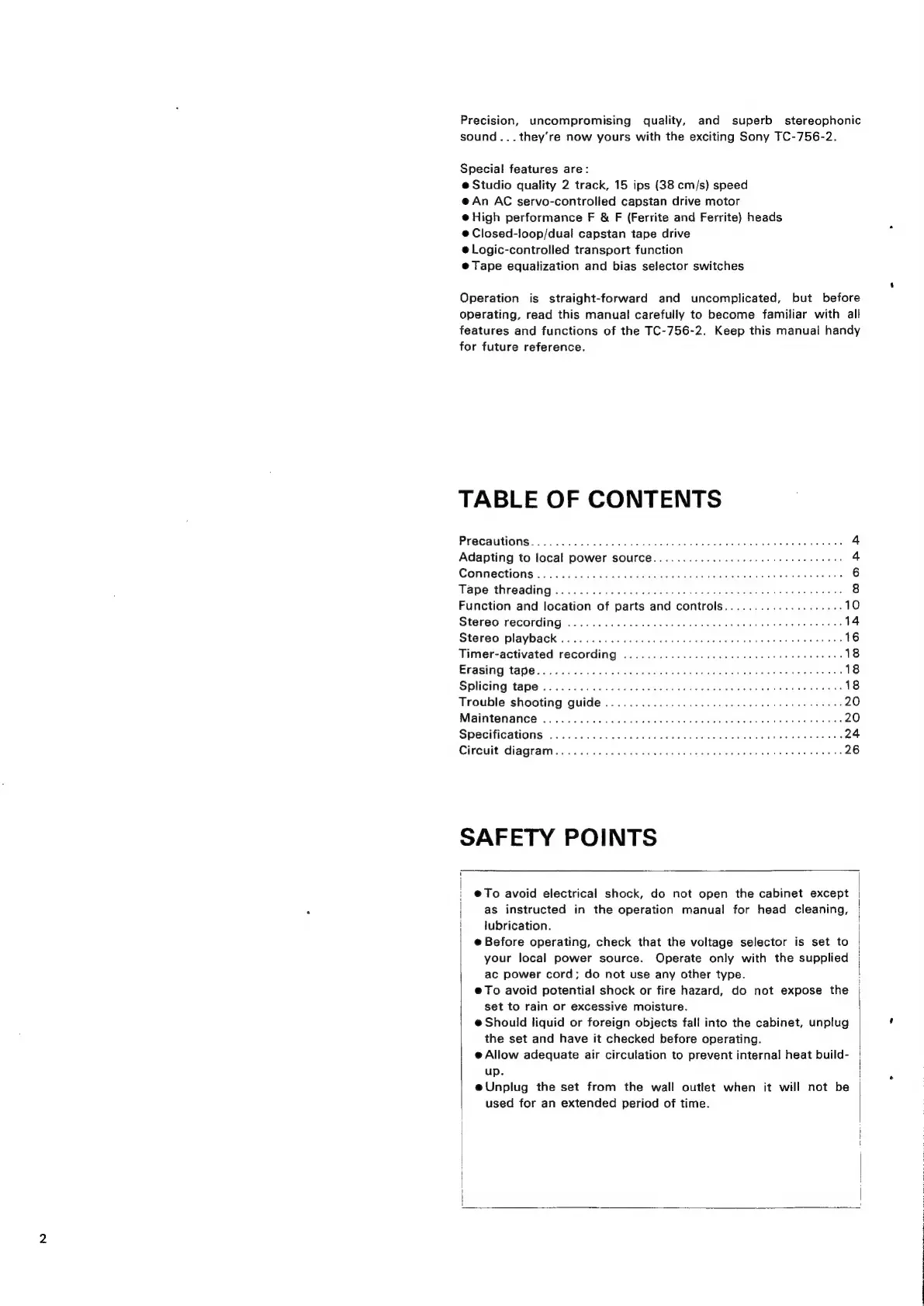

Sony TC-756-2 - Page 2

Precision, uncompromising quality, and superb stereophonic
sound...they’re now yours with the exciting Sony TC-756-2.
Special features are:
e@ Studio quality 2 track, 15 ips (38 cm/s) speed
@An AC servo-controlled capstan drive motor
@ High performance F & F (Ferrite and Ferrite) heads
@ Closed-loop/dual capstan tape drive
e@Logic-controlled transport function
@ Tape equalization and bias selector switches
Operation is straight-forward and uncomplicated, but before
operating, read this manual carefully to become familiar with all
features and functions of the TC-756-2. Keep this manual handy
for future reference.
TABLE OF CONTENTS
Precautions. . ee nee eek eared aad ihe suse ae A
Adapting to focal POWer SOUICE.... 0... ee ee eee 4
Connections . sinsbicgnin Sait abe Sethe dae we a ankisGeaetmans. eM eae Ie IO
Tape threading ... wd di sedy Soe aire eds SO
Function and iséadion ot pane and Sant hle.ak ee: Seamer 60)
Stereo recording .......... 0... cece eee eee eet e nee en TA
Stereo playback ........ 0.0... c ccc e ee ccee ce eee eter erence ee AB
Timer-activated recording ........ 0.6... cece cee eee tee eens 18
Erasing! tape cia etic tasn predate piaade cata tad eta be Dae eaG ANS 18
Splicing tape .. ; barbus aun av avaraiseeTore= diene a aus 4 tea eS
Trouble shooting guide .. Lsolstetie Vanwtia.pauree xep tee Gage ged Hie ha LO
MAnintananBe each savas oo caitdeSoteer inthe restam aieessak BO
Specifications. (4:...003c.e.oteuk ok at pe cade ha bokeh chee etree Gewe 24
Circuitsdiagtam. i. .s4 ae. ke eced ene se pee ee gateeeaval dara
SAFETY POINTS
! @To avoid electrical shock, do not open the cabinet except
\ as instructed in the operation manual for head cleaning,
i lubrication.
e@ Before operating, check that the voltage selector is set to
your local power source. Operate only with the supplied |
ac power cord; do not use any other type. |
e To avoid potential shock or fire hazard, do not expose the |
set to rain or excessive moisture.
e@ Should liquid or foreign objects fall into the cabinet, unplug ,
the set and have it checked before operating.
e@ Allow adequate air circulation to prevent internal heat build-
up.
eUnplug the set from the wall outlet when it will not be
used for an extended period of time.
