Installing and Connecting the Projection TV
23
Installing and Connecting the Projection TV

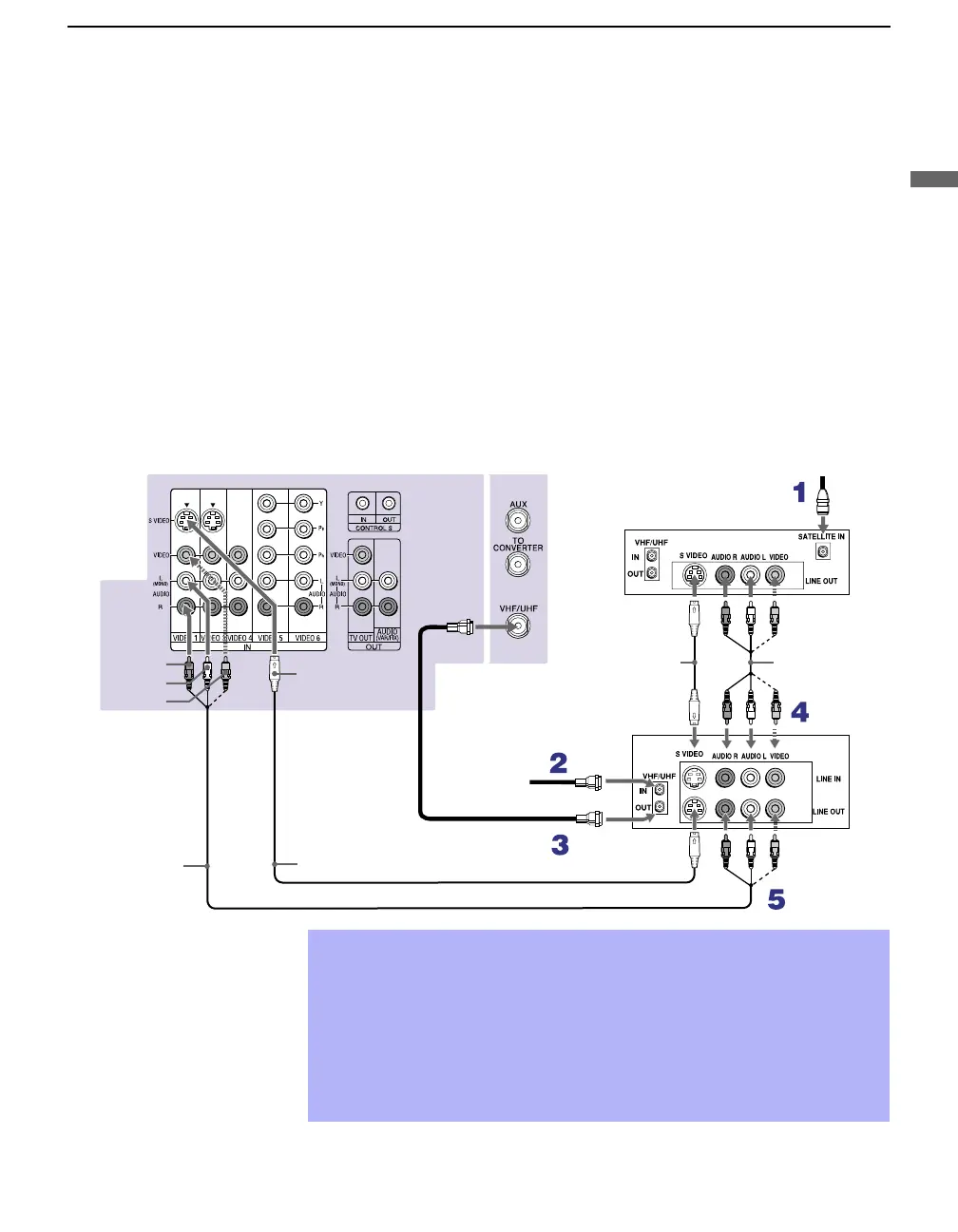

Connecting a Satellite Receiver with a VCR
Disconnect all power sources before making any connections.
1
Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2
Connect the CATV cable to the VCR’s VHF/UHF IN jack.
3
Using a coaxial cable, connect the VCR’s OUT jack to the projection
TV’s VHF/UHF jack.
4
Using AUDIO and S VIDEO cables, connect the satellite receiver’s
AUDIO and S VIDEO OUT jacks to the VCR’s AUDIO and S VIDEO
IN jacks.
5
Using AUDIO and S VIDEO cables, connect the VCR’s AUDIO and
S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.
Coaxial
cable
Rear of projection TV
S VIDEO
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
Satellite receiver
VCR
YC-15V/30V
(not supplied)
VMC-810S/
820S (not
supplied)
YC-15V/30V (not supplied)
VMC-810S/820S
(not supplied)
Satellite
antenna
cable
Cable
✍
Be sure your VCR’s video input is set correctly. Consult your VCR’s
operating manual for instructions.
✍
Use TV/VIDEO to select
- VIDEO 1 to watch satellite TV or the VCR (Your VCR must be turned on).
- VHF/UHF to watch cable TV.
✍
If your VCR or satellite receiver is not equipped with S VIDEO, use a
VIDEO cable (yellow) instead of the S VIDEO cable.
