Sony TRINITRON KV-A2121D - Page 21

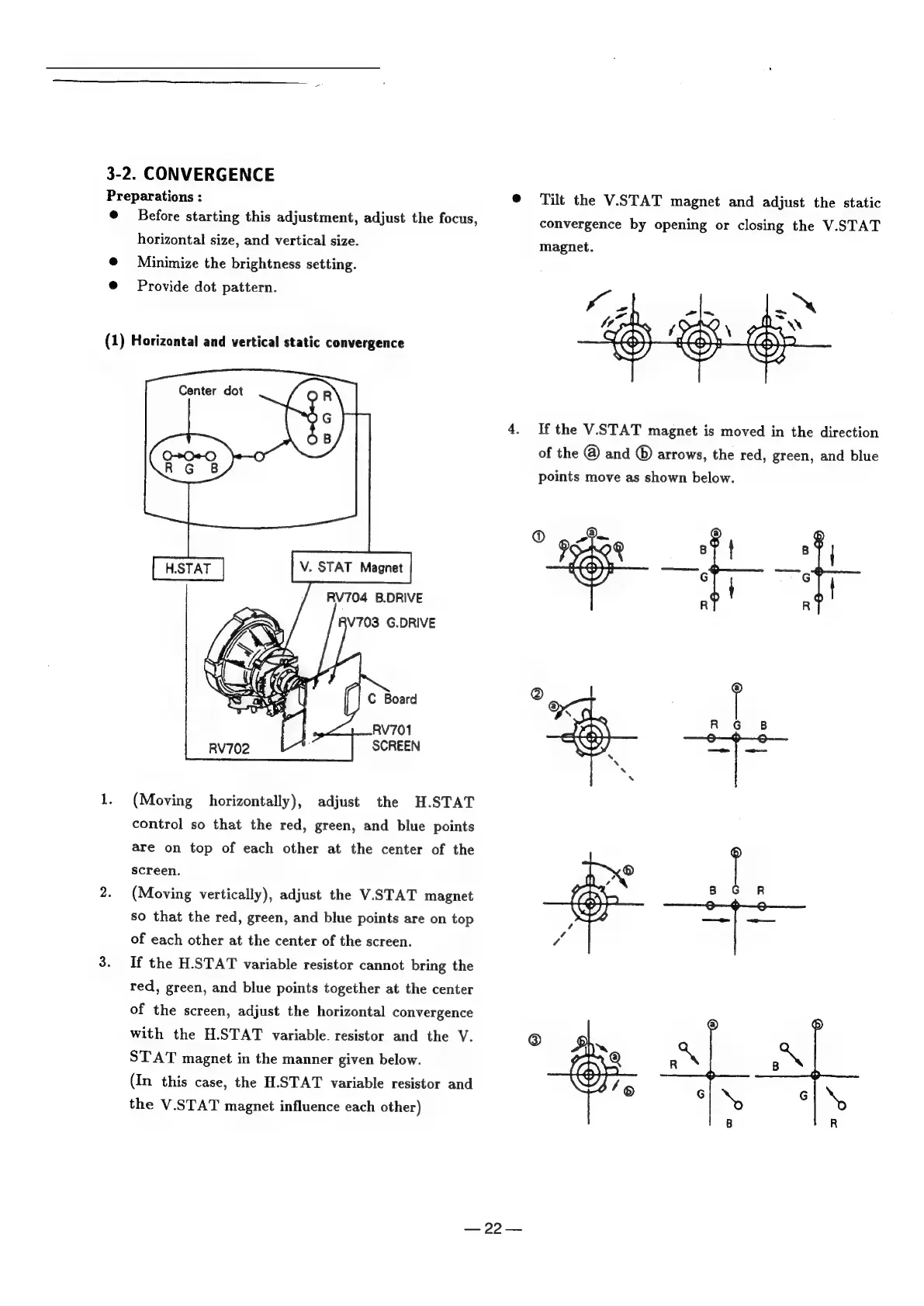

3-2. CONVERGENCE
Preparations
:
e
©
Before
starting
this
adjustment,
adjust
the
focus,
horizontal size, and vertical size.
@ Minimize the brightness setting.
®@ Provide dot pattern.
(1) Horizontal and vertical static convergence
Center dot
SCREEN
1. (Moving horizontally), adjust the H.STAT
control so that the red, green, and blue points
are on top of each other at the center of the
screen.
2.
(Moving
vertically),
adjust
the
V.STAT
magnet
so
that
the
red,
green,
and
blue
points
are
on
top
of
each
other
at
the
center
of
the
screen.
3.
If
the
H.STAT
variable
resistor
cannot
bring
the
red,
green,
and
blue
points
together
at
the
center
of
the
screen,
adjust
the
horizontal
convergence
with
the
H.STAT
variable.
resistor
and
the
V.
STAT
magnet
in
the
manner
given
below.
(In this case, the H.STAT variable resistor and
the V.STAT magnet influence each other)
295 =.
Tilt
the
V.SSTAT
magnet
and
adjust
the
static
convergence
by
opening
or
closing
the
V.STAT
magnet.
If the V.STAT magnet is moved in the direction
of
the
@
and
®
arrows,
the
red,
green,
and
blue
points move as shown below.
