SECTION 6
EXPLODED VIEWS
NOTE: g SS SS aR
« Items with no part number and no description are + Items marked "*” are not stocked since they # The components identified by shading andmark A #
not stocked because they are seldom required for are seldom required for routine service. Some af are critical for safety.
routine service. delay should be anticipated when ordering these e Replace only with part number specified.
« The construction parts of an assembled part are items. Shen ee eananatanatates
indicated with a collation number in the remark
column.

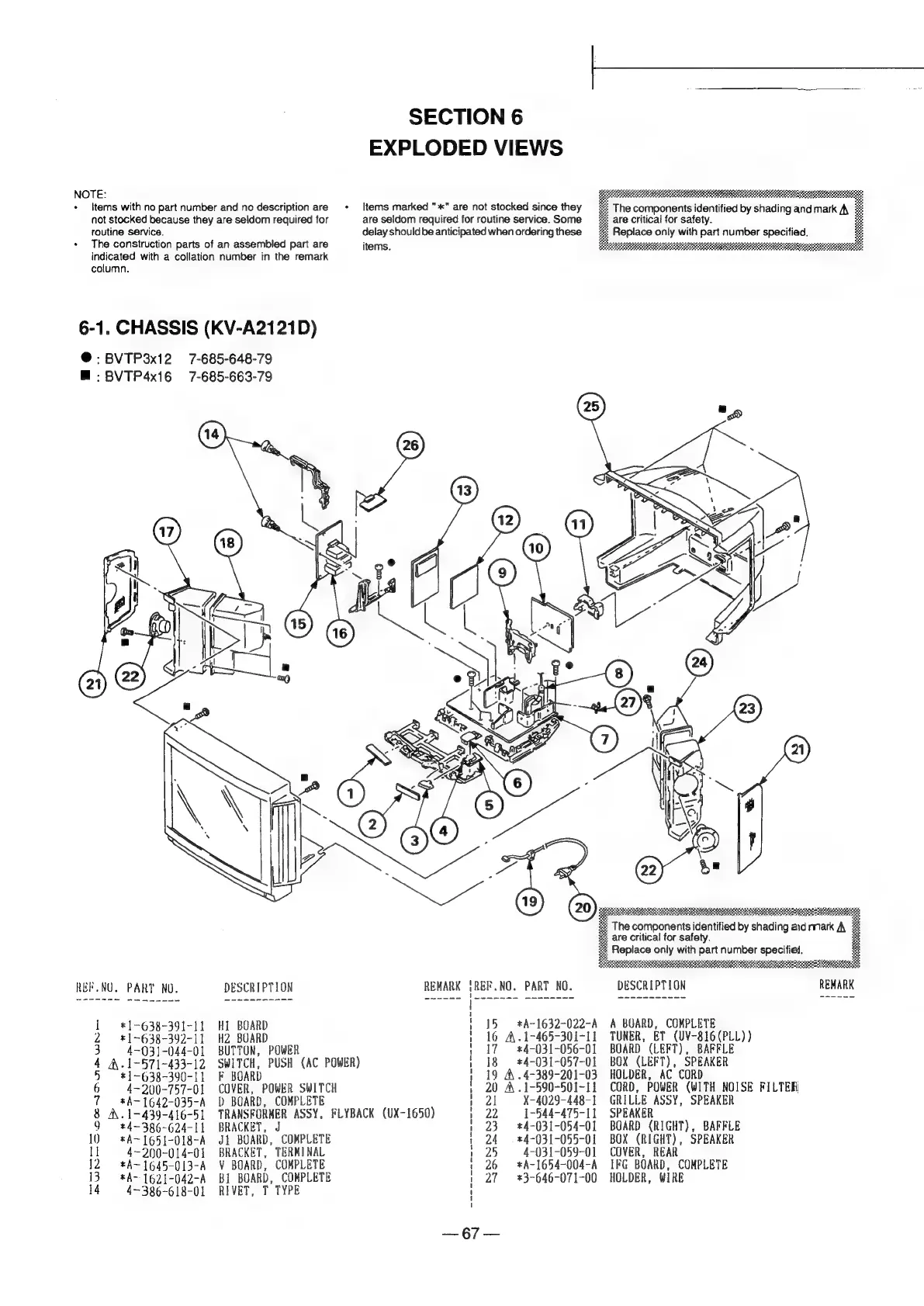

6-1. CHASSIS (KV-A2121D)
@ . BVTP3x12 7-685-648-79
@:BVTP4x16 7-685-663-79
[eamreers mone SE
# The components identified by shading and mnark A, @
Z are critical for safety. e
#2 Replace only with part number specified
eR
REFNO. PART NO. DESCRIPTION REMARK (REFNO. PART NO. DESCRIPTION REMARK
15 *A~1632-022-A A BUARD, COMPLETE
16 A.1-465-301-11 TUNER, ET (UV-816(PLL))
17 *4-031-056-01 BOARD (LEFT), BAFFLE
18 #4-031-057-01 BOX (LEFT), SPEAKER
19 A .4-389-201-03 HOLDER, AC CORD
20 A.1-590-501-11 CORD, POWER (WITH NOISE FILTER
21 X-4029-448-] GRILLE ASSY, SPEAKER
22 1-544-475-11 SPEAKER
23 #4-031-054-01 BOARD (RIGHT), BAFFLE
24 = *4-031-055-01 BOX (RIGHT), SPEAKER
25 —- 4-031-059-01 COVER, REAR
26 =*A-1654-004-A [FG BOARD, COMPLETE
27 ~—-#3-646-071-00 HOLDER, WIRE
1 #1-638-391-11 HI BOARD
2 #1-638-392-11 H2 BOARD
3 4-03]-044-01 BUTTON, POWER ;
4 A&.1-571-433-12 SWITCH, PUSH (AC POWER)
5 *1-638-390-11 F BOARD
6 4~200-757-01 COVER, POWER SWITCH
7 #A~1642-035-A D BOARD, COMPLETE
8 A.1-439-416-51 TRANSFORMER ASSY, FLYBACK (UX-1650)
9 #4~386-624-11 BRACKET, J
0 #*A-1651-018-A J1 BOARD, COMPLETE
L 4-200-014-01 BRACKET, TERMINAL
2 *A~1645-013-A V BOARD, COMPLETE
3 *A~1621-042-A B1 BOARD, COMPLETE
4 4~386-618-01 RIVET, T TYPE
67 =
