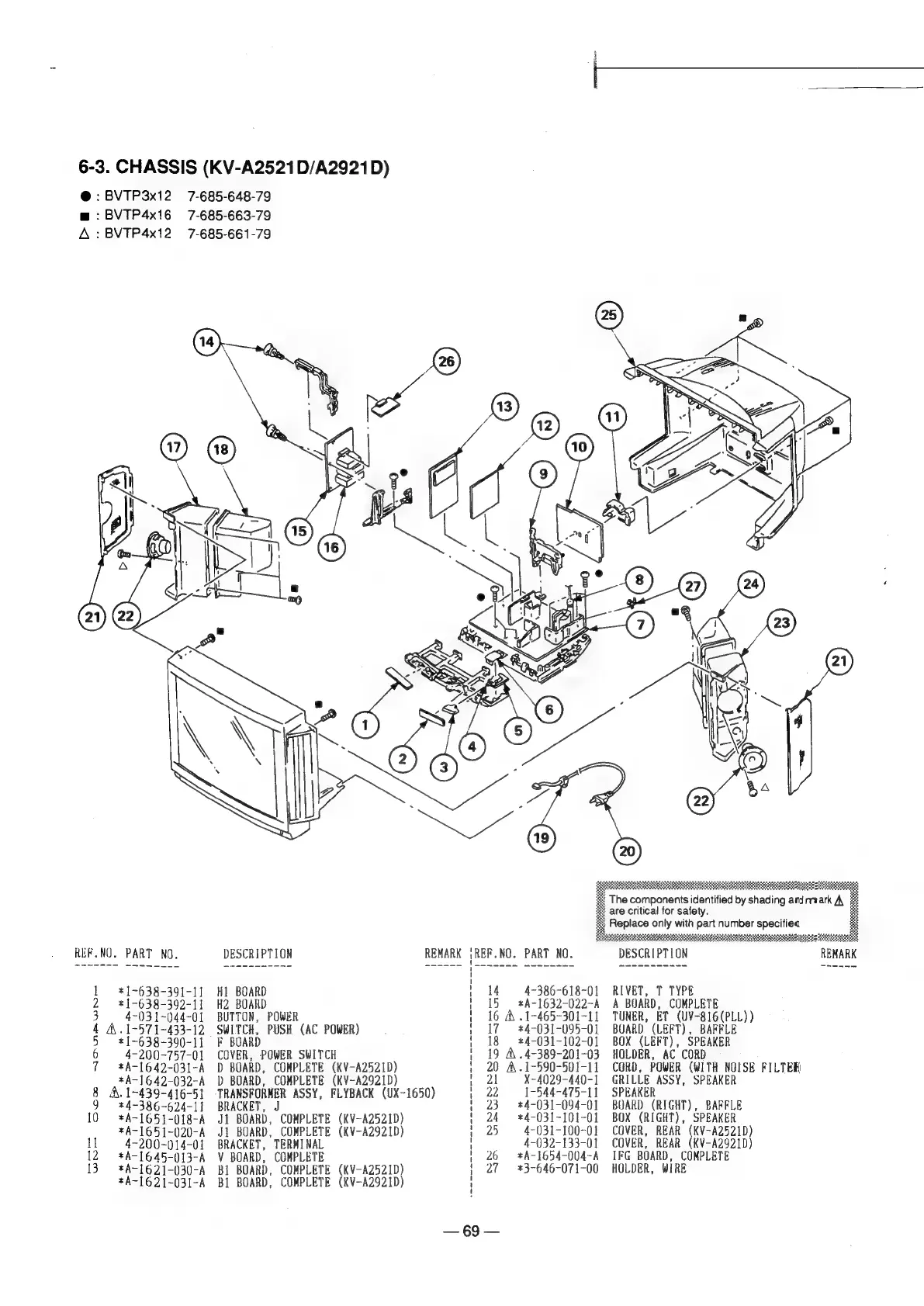

6-3. CHASSIS (KV-A2521D/A2921D)
@ : BVTP3x12 =7-685-648-79
wm : BVTP4x16 7-685-663-79
A : BVTP4x12 7-685-661-79
REFNO. PART NO.
*1-638-391-1]
*1-638-392-1]
4-031-044-01
A .1-571-433-12
*1~638-390-11
4-200-757-01
*A~1642-031-A
+*A-1642-032-A
A. 1-439-416-51
*4~386-624-1]
+A-1651-018-A
*A-1651-020-A
4-200-014-01
#A-1645-013-A
*A-1621-030-A
*A-1621-031-A
DESCRIPTION
H1 BOARD
H2 BOARD
BUTTON, POWER
SWITCH, PUSH (AC POWER)
F BOARD
COVER, POWER SWITCH
D BOARD, COMPLETE (KV-A2521D)
D BOARD, COMPLETE (KV-A2921D)
TRANSFORMER ASSY, FLYBACK (UX-1650)
BRACKET, J
Ji BOARD, COMPLETE (KV-A2521D)
Ji BOARD, COMPLETE (KV-A2921D)
BRACKET, TERMINAL
V BOARD, COMPLETE
Bi BOARD, COMPLETE (KV-A2521D)
BL BOARD, COMPLETE (KV-A2921D)
14
15
17
18
21
22
23
24
25
26
27
69.
REMARK |REF.NO. PART NO.
4-386-618-01
*A-1632-022-A
16 A .1-465-301-11
+4-031-095-01
*4-031-102-01
19 A.4-389-201-03
20 A.1-590-501-11
X-4029-440-]
1-544-475-11
*4-031-094-01
*4-031-101-01
4-31-100-01
4-032-133-01
*A-1654-004-A
+3-646-071-00
are critical for safety.
Replace only with part number specifie«
oR
DESCRIPTION
RIVET, T TYPE
A BOARD, COMPLETE
TUNER, ET (UV-816(PLL))
BUARD (LEFT), BAFFLE
BOX (LEFT), SPEAKER
HOLDER, AC CORD
CORD, POWER (WITH NOISE FILTER
GRILLE ASSY, SPEAKER
SPEAKER
BOARD (RIGHT), BAFFLE
BOX (RIGHT), SPEAKER
COVER, REAR (KV~A2521D)
COVER, REAR (KV-A2921D)
IFG BOARD, COMPLETE
HOLDER, WIRE
