Sony Trinitron PVM-14L2 Service Manual

1-4
PVM-14L2/20L2

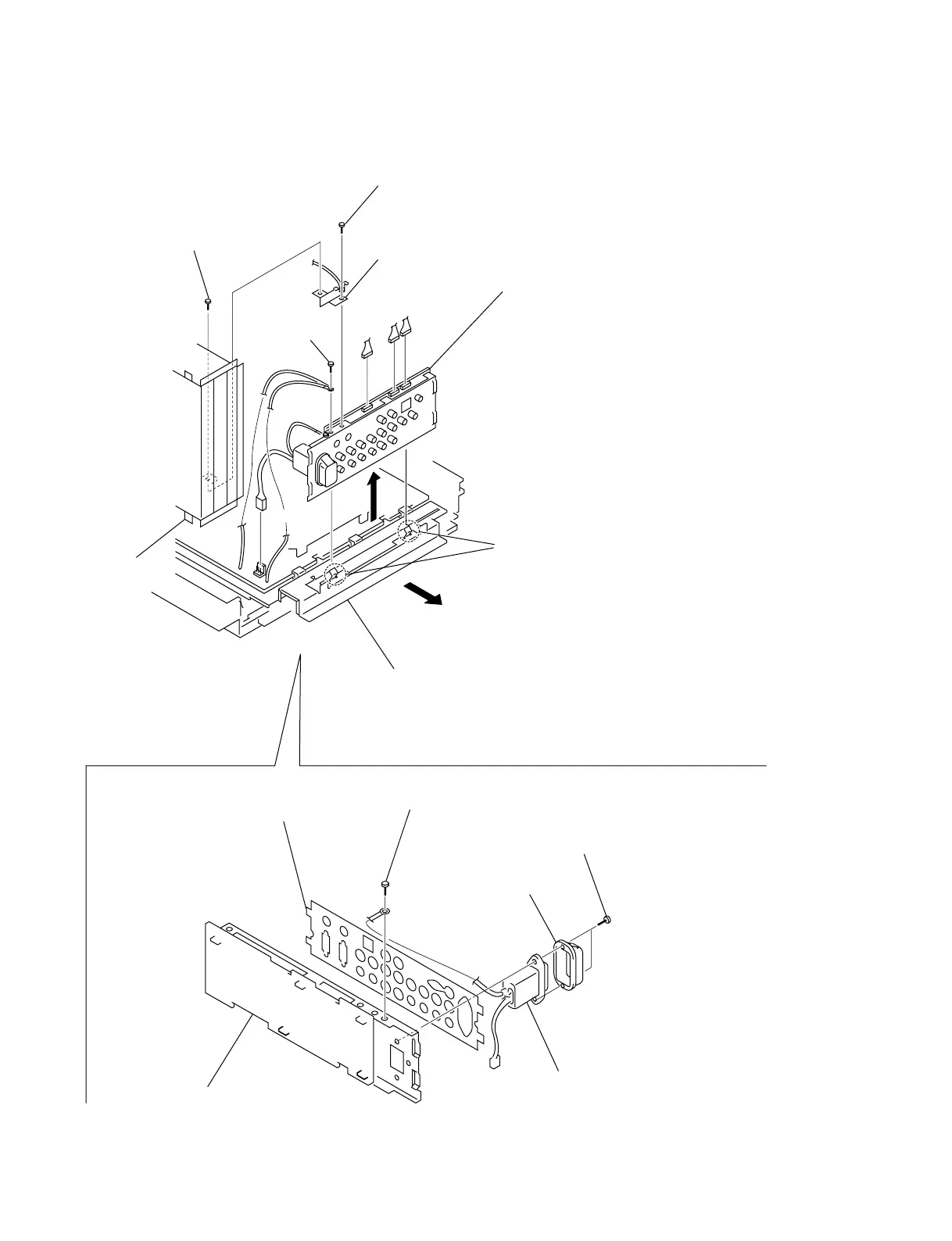

1-2-3. Q Board Removal (14 inch)
CN601
CN2705
CN2710
CN2707
6
Two claws
4
Remove the G board, main plate assy
in the direction of the arrow A.
0 Plug holder (A)
!=
Connector label
!-
AC inlet 3P
![
Q board
Shield assy
3
Ground plate
9 Two screws
(+PSW 3x12)
2
Screw
(+PS 4x8)
8
Screw
(+PS 4x8)
5
Screw
(+PS 4x8)
1
Screw (+PS 4x8)
A
B
7 Remove the Q block assy
in the direction of the arrow B.
