1-5
PVM-14L2/20L2

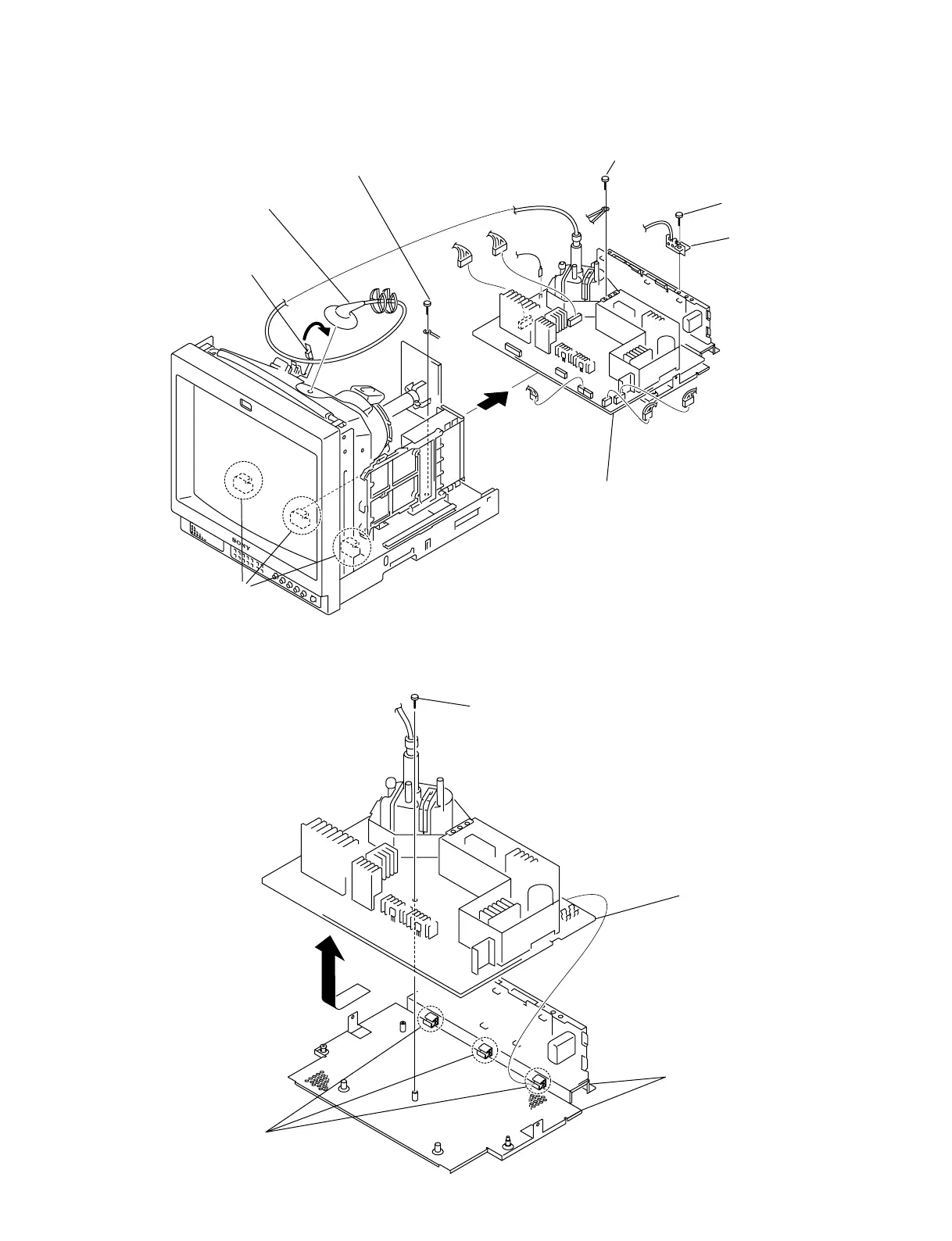

1-2-4. G and Q Block Assy Removal (14 inch)
2
Anode cap
CN509
CN607
CN1506
CN3502
CN608
CN602
7
Remove the G, Q block assy
in the direction of the arrow B.
1
Remove the lead holder
in the direction of the arrow A.
6
Screw
(+PS 4x8)
4
Screw
(+PS 4x8)
5
Ground plate
B
A
Three claws
3
Screw
(+PS 4x8)
1-2-5. G Board Removal (14 inch)
* Remove the G and Q block assy beforehand.
4
G board
3
Q block assy,
Main plate assy
1
Screw
(+BVTP3 x 12)
2
Three PC board holders
To Next Page
