Sony Trinitron PVM-14L2 Service Manual

1-6
PVM-14L2/20L2

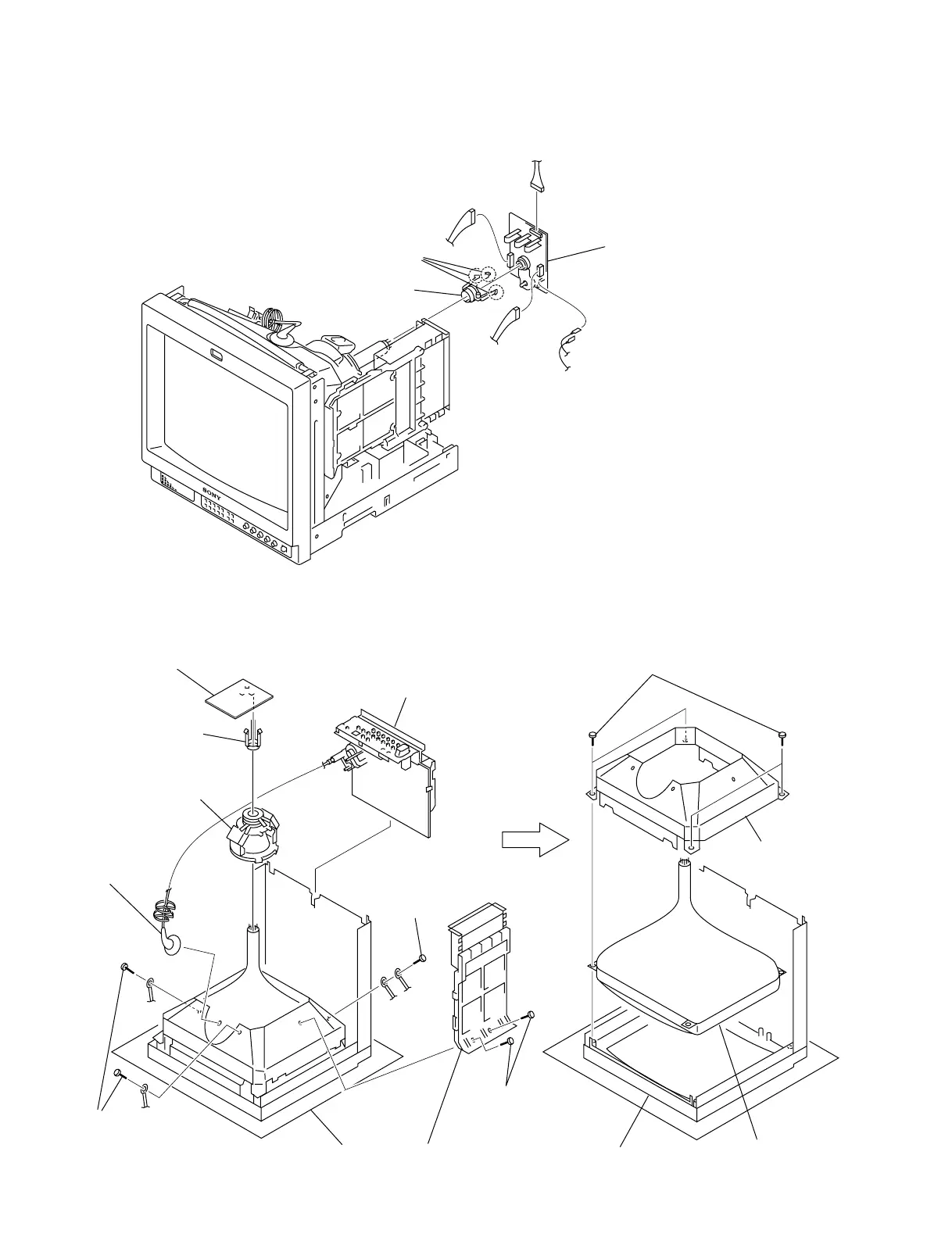

1-2-6. C Board Removal (14 inch)
1-2-7. Picture Tube and Bezel Assy Removal (14 inch)
5 Deflection yoke
7
B block assy
2
G, Q block assy
8 Screw
(+BVTT 4x8)
6 Two screws
(+BVTT 4x8)
9
Two screws
(+BVTT 4x8)
0
Four tapping (ST) screws (5)
4 C board
3 Fastening band
assy
1 Anode cap
!- CRT shield assy
!= Picture tube
![ Bezel assy
Cushion
1 Three claws
CN702
CN701
3
C board
CN705
CN706
CN704
2 Fastening band assy
