Sony Trinitron PVM-14L2 Service Manual

1-13
PVM-14L2/20L2

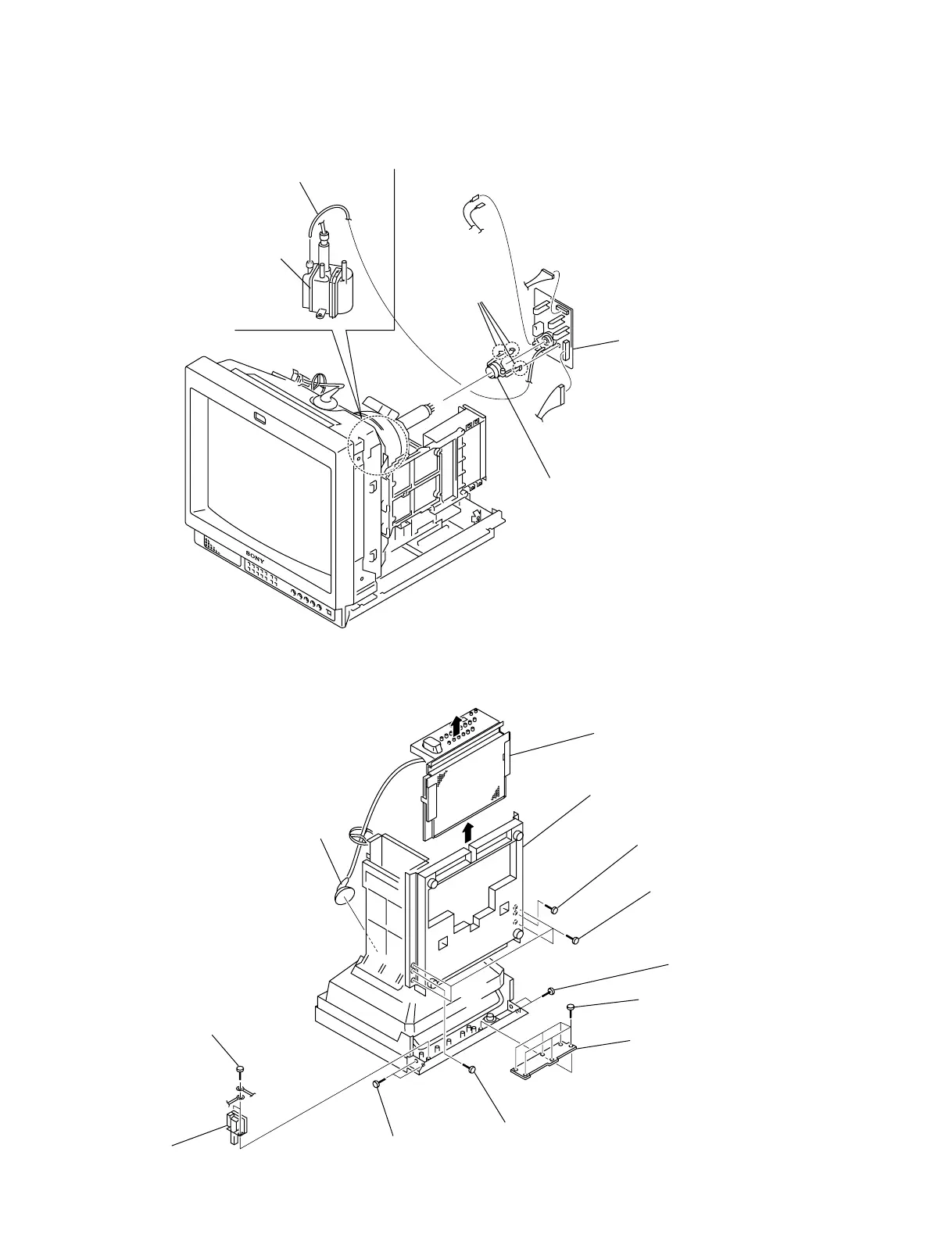

1-4-6. C Board Removal (20 inch)
1-4-7. J and H Boards Removal (20 inch)
1 Focus lead assy
CN703
CN705
CN701
3
C board
CN702
Three claws
FBT assy
2
Fastening band assy
!/ J board
!= H board
8 Bottom cabinet assy
2 G, B block assy
4
Four screws
(+BVTP 4x20)
5
Two screws
(+BVTT 4x12)
7
Two screws
(+BVTT 4x12)
9
Two screws
(+BVTP 3x8)
!-
Six screws
(+BVTP 3x8)
3
Screw
(+PS 4x8)
6
Screw (+PS 4x8)
1
Anode cap
