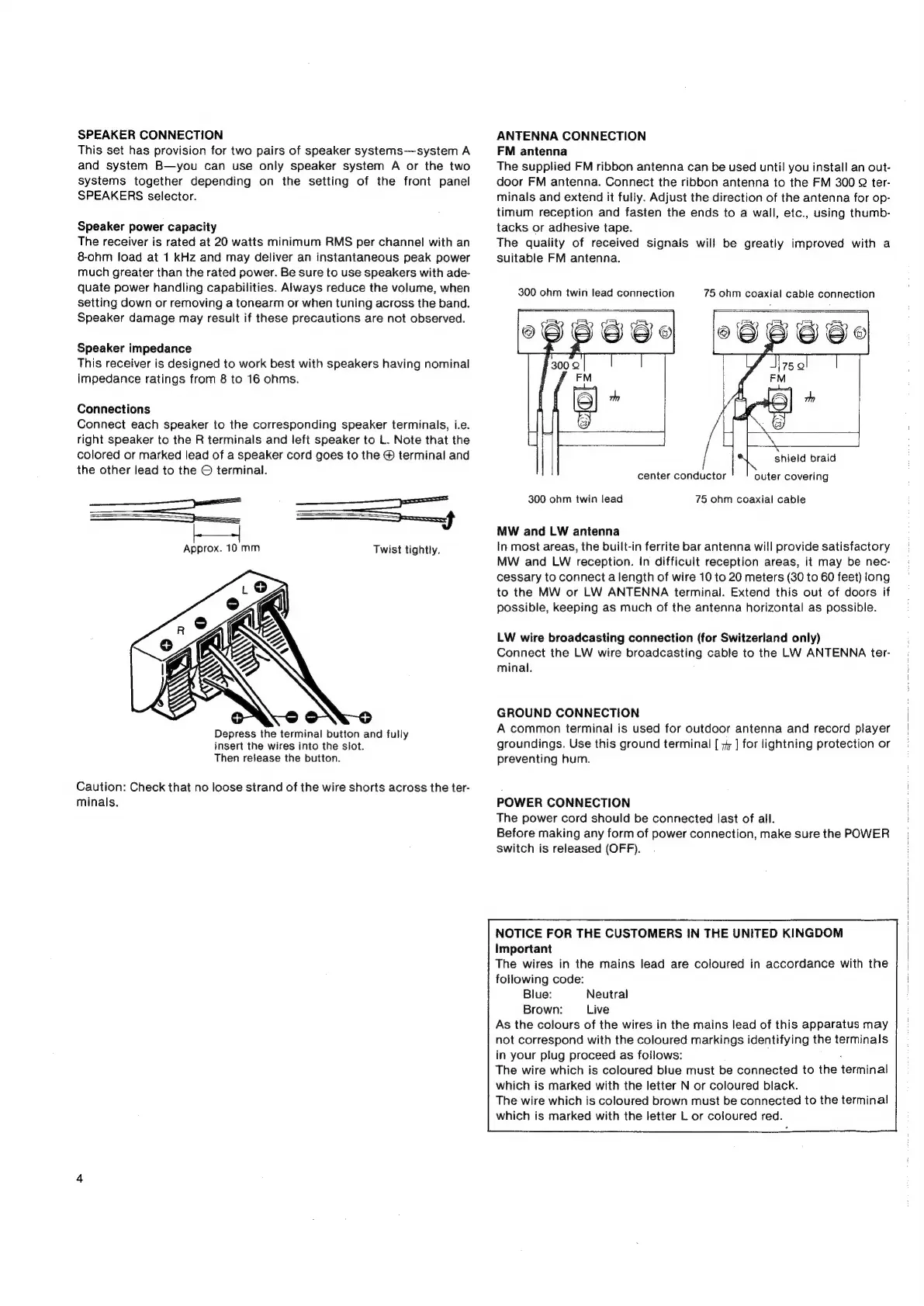

Sony XO-5 - Page 4

SPEAKER CONNECTION
This set has provision for two pairs of speaker systems—system A
and system B—you can use only speaker system A or the two
systems together depending on the setting of the front panel
SPEAKERS selector.
Speaker power capacity
The receiver is rated at 20 watts minimum RMS per channel with an
8-ohm load at 1 kHz and may deliver an instantaneous peak power
much greater than the rated power. Be sure to use speakers with ade-
quate power handling capabilities. Always reduce the volume, when
setting down or removing a tonearm or when tuning across the band.
Speaker damage may result if these precautions are not observed.
Speaker impedance
This receiver is designed to work best with speakers having nominal
impedance ratings from 8 to 16 ohms.
Connections
Connect each speaker to the corresponding speaker terminals, i.e.
right speaker to the R terminals and left speaker to L. Note that the
colored or marked lead of a speaker cord goes to the @ terminal and
the other lead to the © terminal.
SSS SS,
Approx. 10 mm
Twist tightly.
Depress the terminal button and fully
insert the wires into the slot.
Then release the button.
Caution: Check that no loose strand of the wire shorts across the ter-
minals.
ANTENNA CONNECTION
FM antenna
The supplied FM ribbon antenna can be used until you install an out-
door FM antenna. Connect the ribbon antenna to the FM 300 Q ter-
minals and extend it fully. Adjust the direction of the antenna for op-
timum reception and fasten the ends to a wall, etc., using thumb-
tacks or adhesive tape.
The quality of received signais will be greatly improved with a
suitable FM antenna.
300 ohm twin lead connection
75 ohm coaxial cable connection
shield braid
outer covering
center conductor
300 ohm twin lead
75 ohm coaxial cable
MW and LW antenna
In most areas, the built-in ferrite bar antenna will provide satisfactory
MW and LW reception. In difficult reception areas, it may be nec-
cessary to connect a length of wire 10 to 20 meters (30 to 60 feet) long
to the MW or LW ANTENNA terminal. Extend this out of doors if
possible, keeping as much of the antenna horizontal as possible.
LW wire broadcasting connection (for Switzerland only)
Connect the LW wire broadcasting cable to the LW ANTENNA ter-
minal.
GROUND CONNECTION
A common terminal is used for outdoor antenna and record player
groundings. Use this ground terminal [ 7, ] for lightning protection or
preventing hum.
POWER CONNECTION
The power cord should be connected last of all.
Before making any form of power connection, make sure the POWER
switch is released (OFF).
NOTICE FOR THE CUSTOMERS IN THE UNITED KINGDOM
Important
The wires in the mains lead are coloured in accordance with the
following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured markings identifying the terminals
in your plug proceed as follows: .
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal
which is marked with the letter L or coloured red.
