The buttons on the unit share the same
functions as those on the card remote
commander.

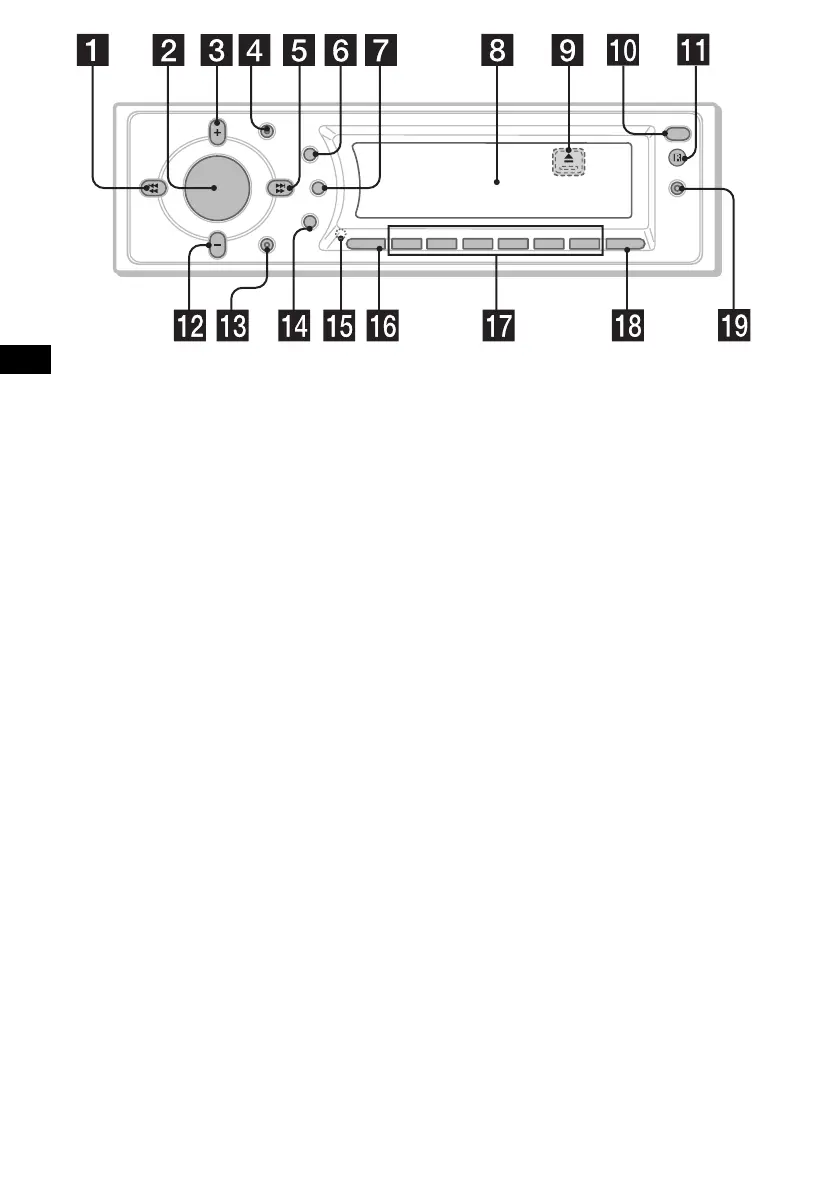

a 5 SEEK/AMS (.m/M>)
buttons
b Volume control dial/SOUND button
Rotate to:
– Adjust the volume.
– Adjust the sound settings.
Press to:
– Select the sound items.
3 qs DISC (ALBUM)/PRESET (+/–)
buttons
4 MODE button
6 DSO button
7 SCRL (scroll) button
8 Display window
9 Z (eject) button (located on the front side
of the unit, behind the front panel) 12
0 OPEN button 10, 12
qa Receptor for the card remote
commander
qd OFF (Stop/Power off) button*
qf EQ7 button
qg RESET button (located on the front side of
the unit, behind the front panel) 10
qh SOURCE button
qj Number buttons
qk AF/TA button 19, 20, 21
ql IMAGE button 28
* Warning when installing in a car without
an ACC (accessory) position on the
ignition switch
After turning off the ignition, be sure to press
and hold (OFF) on the unit until the display
disappears.
Otherwise, the display does not turn off and this
causes battery drain.
