Sony XR-55A80J User Manual

21
 (*) Parts are not stocked since they are seldom required for routine service. Some delays should be anticipated when
ordering these components.
 Picture provided in this section might have slight difference from the actual sets.
 The reference number beside the part indicates the disassembly sequence.
 Remove screws before disassembly. Unplug connectors before disassembly
• Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
• and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are repaired and/or replaced

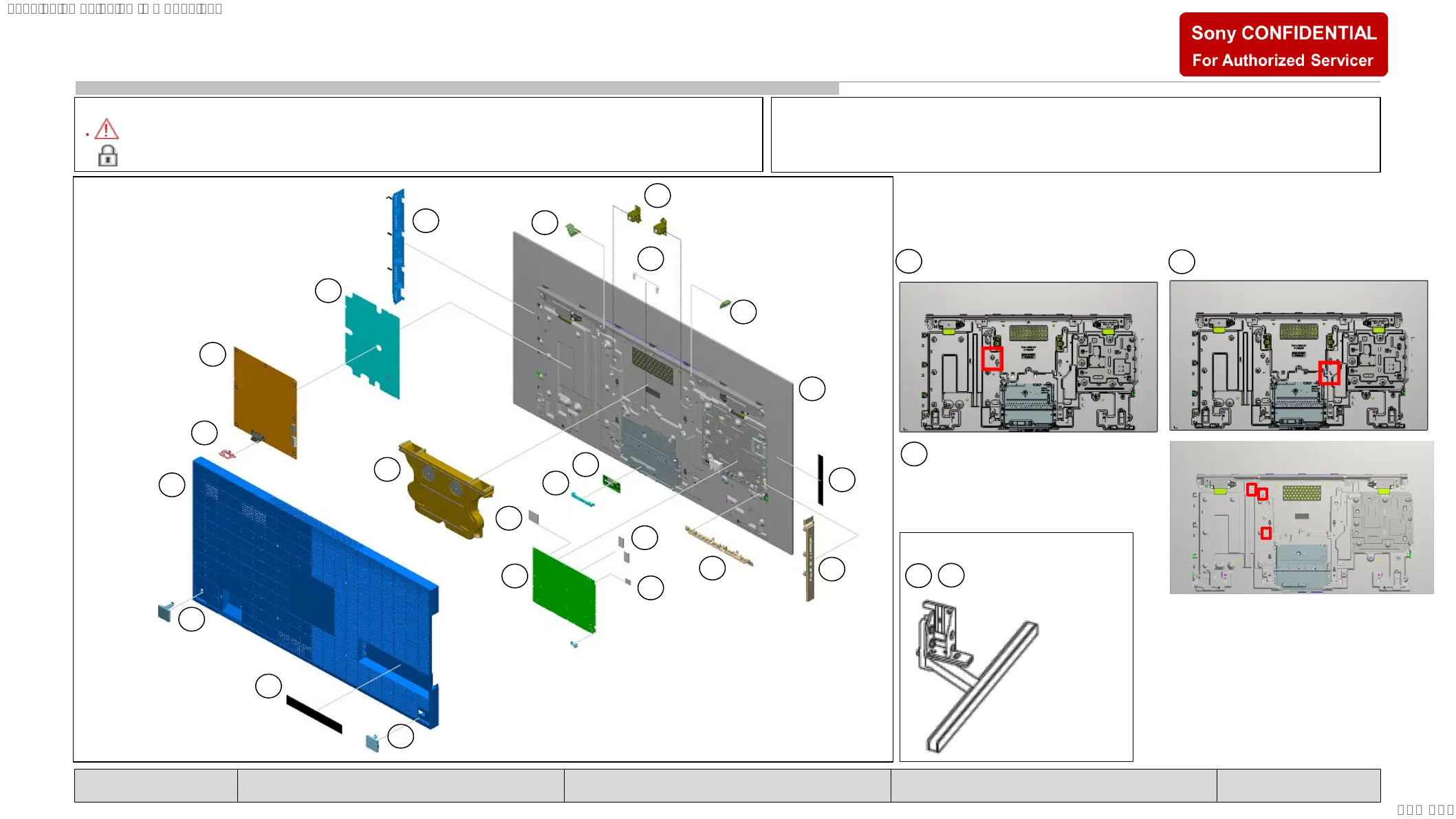

1-4 EXPLODED VIEW
AND PART LIST
1
3
6
13
5
12
14
7
8
15
10
4
9
11
1
Stand
26
27
* Only on limited region / country / TV model
SECTION 1
XR-55A8*J
2
19
TOOLS & EQUIPMENTS SECTION 1 SECTION 2 SECTION 3 SMART CORE
3
16
17
21
22
24
4-745-336-01 SLIDE, CLAMP(MINI)
2-650-770-21 SLIDE, CLAMP
*
20
23
5-009-031-02 CLAMPER,CABLE
S(BNN)
25
SYSSET
2022/05/1321:18:02(GMT+09:00)

Sony XR-55A80J Specifications

General

Tuner type	Analog & digital
Number of tuners	3 tuner(s)
Supported TV bands	UHF, VHF
Analog signal format system	NTSC 3.58, NTSC 4.43, PAL, PAL I, SECAM, SECAM B/G, SECAM D/K
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
DVI port	No
Common interface (CI)	-
S-Video inputs quantity	0
Common interface Plus (CI+)	Yes
Video apps	Google TV
Smart modes	Cinema, Custom, Game, Graphics, Photo, Standard, Vivid
Operating system version	10
App distribution platform	Google Play
Operating system installed	Android
Screen shape	Flat
Response time	- ms
Display diagonal	55 \
Display brightness	- cd/m²
Display technology	OLED
Native aspect ratio	16:9
Native refresh rate	100 Hz
Display diagonal (metric)	139 cm
Motion interpolation technology	XR Motion Clarity
Audio formats supported	ASF, FLAC, MP3, WAV
Image formats supported	JPEG
Video formats supported	3GPP, AVC, HEVC, MP4, MPEG, MPEG1, MPEG2, MPEG2-PS, MPEG2-TS, VP8, WEBM
Picture processing technology	Sony Dynamic Contrast Enhancer, Sony Live Colour, Sony TRILUMINOS Display
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Sound modes	Movie, Music, Sports, Standard
Audio decoders	DTS, Dolby Atmos
RMS rated power	30 W
Number of speakers	3
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Browser supported	Vewd
On Screen Display (OSD) languages	AFR, ALB, ARA, BEL, BOS, BUL, CAT, CZE, DAN, DEU, ENG, EST, GRE, HEB, HIN, HUN, IND, ITA, JPN, KAZ, KOR, LAV, LIT, MAC, PER, POL, POR, RUM, RUS, SLV, SRP, SWE
Energy efficiency scale	A to G
Product color	Black
Mercury content	0 mg
Harmonized System (HS) code	85287280
Repairability index	6.6
