ZS-RS70BT/RS70BTB
14

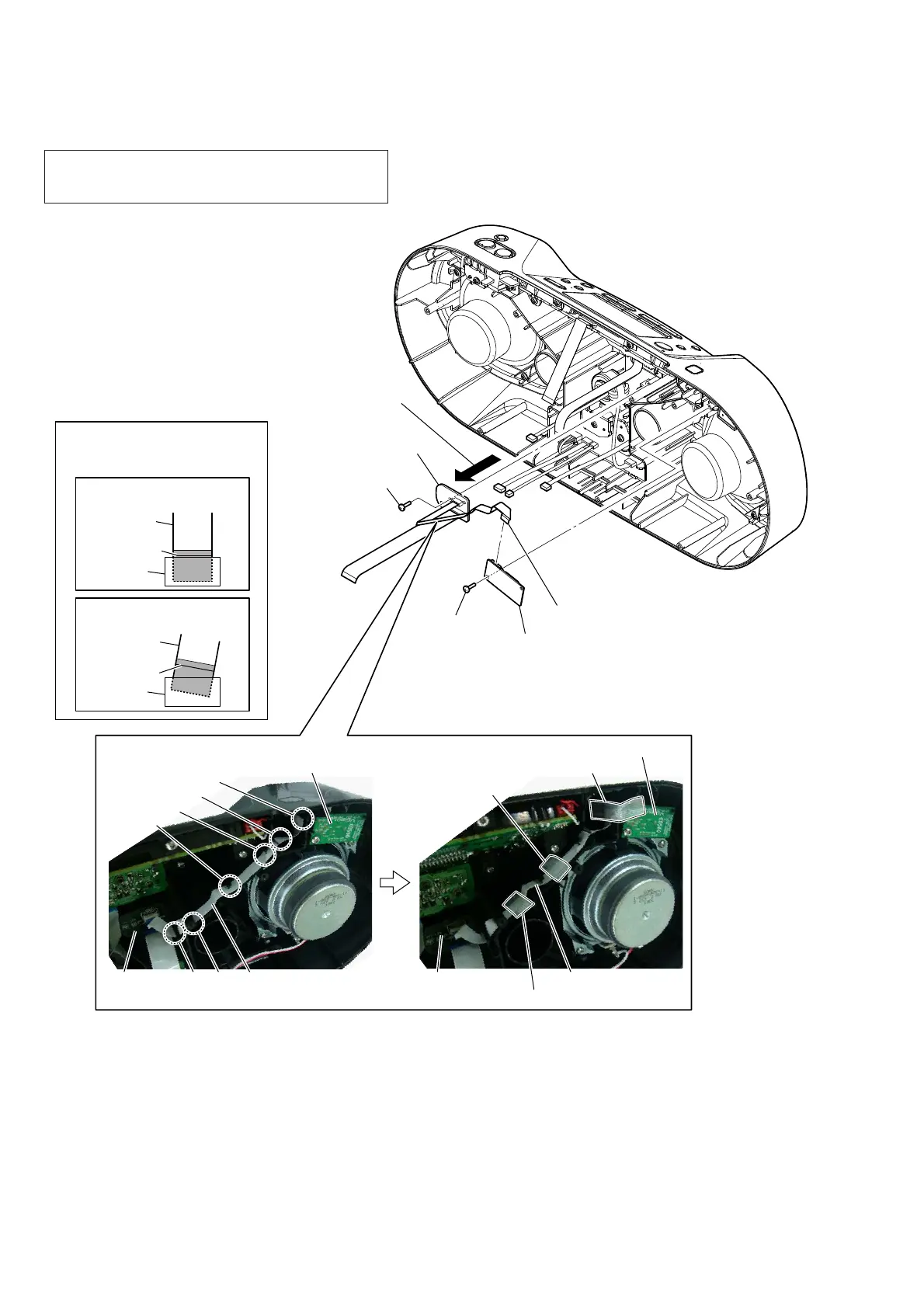

2-11. BLUETOOTH MODULE (BT1)
1 tapping screw
(BV B2.6)
2 tapping screw
(P B2.6)
– Cabinet (front) block rear view –
3 Remove the SOFT board block
in the direction of an arrow.
5 SOFT board block
6 bluetooth module (BT1)
4 flexible flat cable (14P)
colored line
colored line
Insert is straight to the interior.
Insert is incline
flexible flat
cable
flexible flat
cable
connector
connector
OK
NG
Note 2:
When installing the flexible flat
cable, ensure the colored line.
No slanting after insertion.
Flexible flat cable (14P) setting
SOFT board
bluetooth module (BT1)
bluetooth module (BT1)
rib
flexible flat cable (14P)
SOFT board
rib
flexible flat cable (14P)
rib
rib
rib
rib
tape (sub material)
tape (sub material)
tape (sub material)
Note 1: When Bluetooth module is replaced, refer to “NOTE OF
REPLACING THE Bluetooth MODULE OR RC-S711
(NFC)” on page 5.
