Soosan SB121 - Ring Bush Wear Limits; Rod Pin Wear Limits

Soosan H
y
draulic Breaker
Soosan Heav
y
Industries Co.
,
Ltd

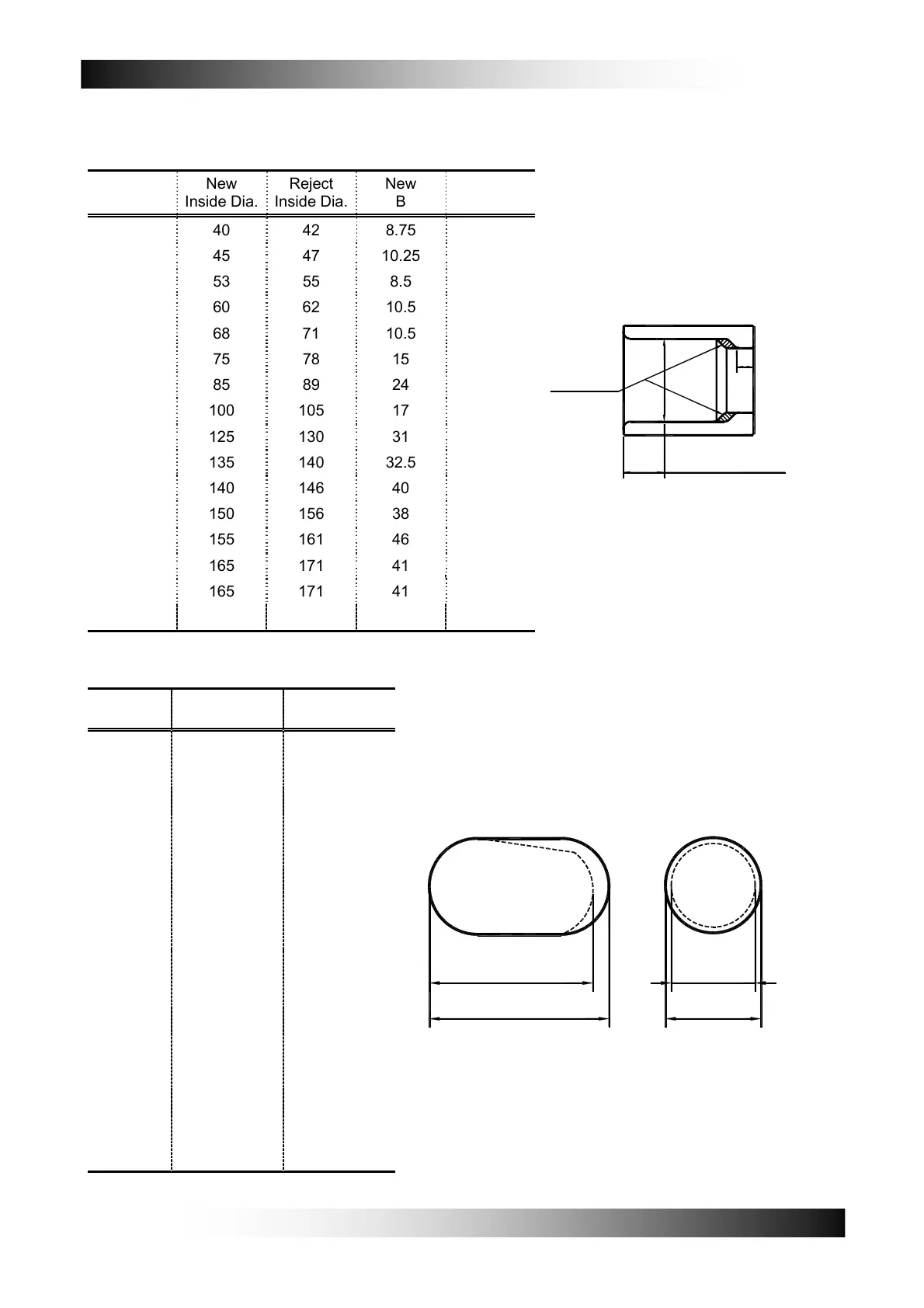

7.3 Ring bush
Unit(mm)
MODEL
New
Inside Dia.
Reject
Inside Dia.
New
B
Reject
SB10II 40 42 8.75 7
SB20II 45 47 10.25 8
SB30II 53 55 8.5 6
SB35II 60 62 10.5 7.5
SB40II 68 71 10.5 7.5
SB43II 75 78 15 12
SB45 85 89 24 21
SB50 100 105 17 14
SB60 125 130 31 28
SB70 135 140 32.5 29.5
SB81 140 146 40 37
SB100 150 156 38 35
SB121 155 161 46 43
SB130 165 171 41 38
SB140 165 171 41 38
SB151 175 171 53.5 50.5
Wear area
Measure at 30mm
A
B
7.4 Rod pin
Unit(mm)
MODEL
NEW
Length
REJECT
Length
SB10II 28 26
SB20II 28 26
SB30II 32 30
SB35II 36 34
SB40II 38 36
SB43II 42 40
SB45 54 51
SB50 60 57
SB60 75 72
SB70 82 79
SB81 88.5 85.5
SB100 94 91
SB121 96 93
SB130 96 93
SB140 96 93
SB151 99 95
Wear limit
New part
Wear limit
New part
