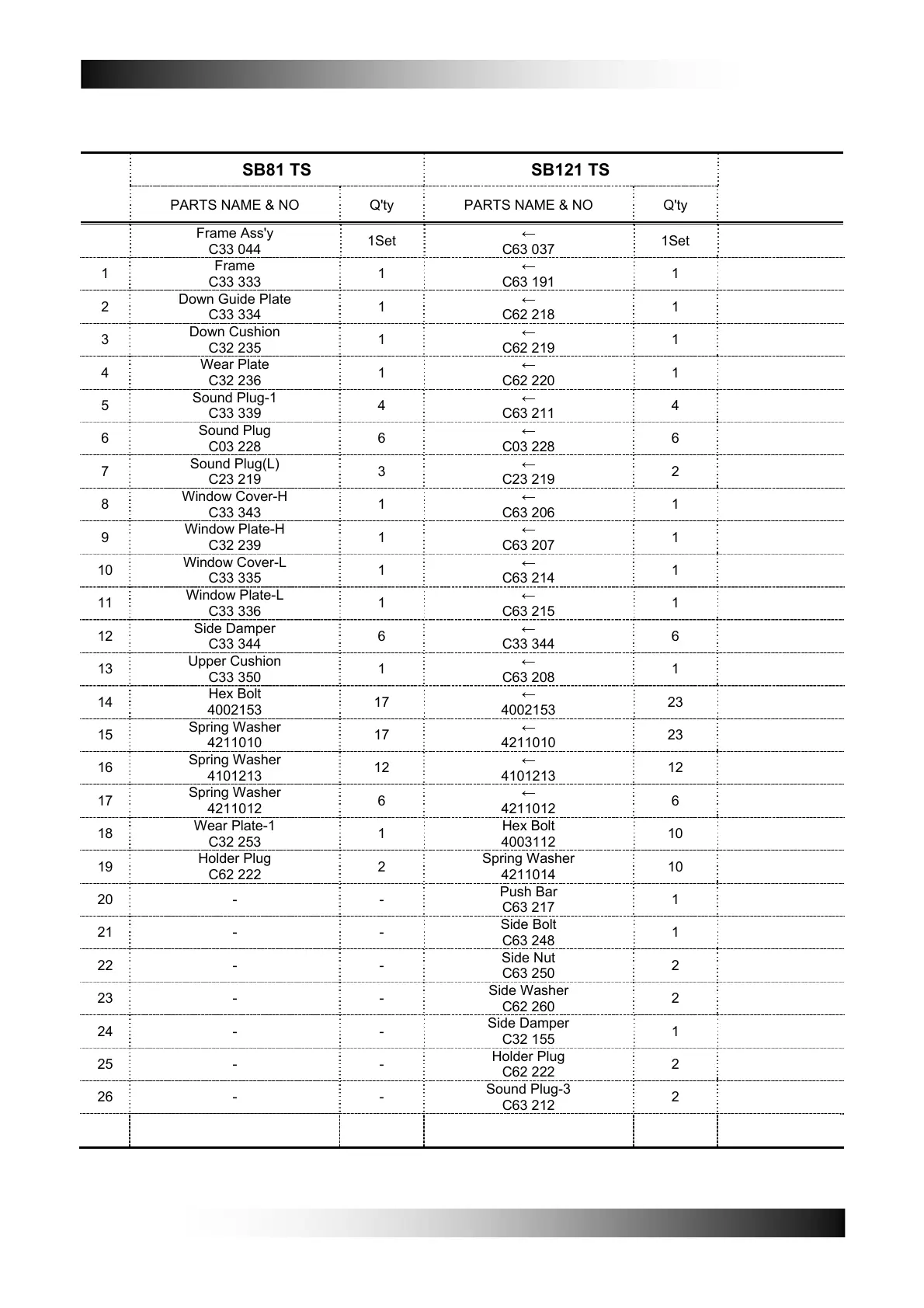

■ TS TYPE (SB81TS ~ SB121TS)
SB81 TS SB121 TS
NO
PARTS NAME & NO Q'ty PARTS NAME & NO Q'ty
REMARK
Frame Ass'y
C33 044
1Set
←
C63 037
1Set
1
Frame
C33 333
1
←
C63 191
1
2
Down Guide Plate
C33 334
1
←
C62 218
1
3
Down Cushion
C32 235
1
←
C62 219
1
4
Wear Plate
C32 236
1
←
C62 220
1
5
Sound Plug-1
C33 339
4
←
C63 211
4
6
Sound Plug
C03 228
6
←
C03 228
6
7
Sound Plug(L)
C23 219
3
←
C23 219
2
8
Window Cover-H
C33 343
1
←
C63 206
1
9
Window Plate-H
C32 239
1
←
C63 207
1
10
Window Cover-L
C33 335
1
←
C63 214
1
11
Window Plate-L
C33 336
1
←
C63 215
1
12
Side Damper
C33 344
6
←
C33 344
6
13
Upper Cushion
C33 350
1
←
C63 208
1
14
Hex Bolt
4002153
17
←
4002153
23
15
Spring Washer
4211010
17
←
4211010
23
16
Spring Washer
4101213
12
←
4101213
12
17
Spring Washer
4211012
6
←
4211012
6
18
Wear Plate-1
C32 253
1
Hex Bolt
4003112
10
19
Holder Plug
C62 222
2
Spring Washer
4211014
10
20 - -
Push Bar
C63 217
1
21 - -
Side Bolt
C63 248
1
22 - -
Side Nut
C63 250
2
23 - -
Side Washer
C62 260
2
24 - -
Side Damper
C32 155
1
25 - -
Holder Plug
C62 222
2
26 - -
Sound Plug-3
C63 212
2
27 - -
Wear Plate-1
C62 253
1
