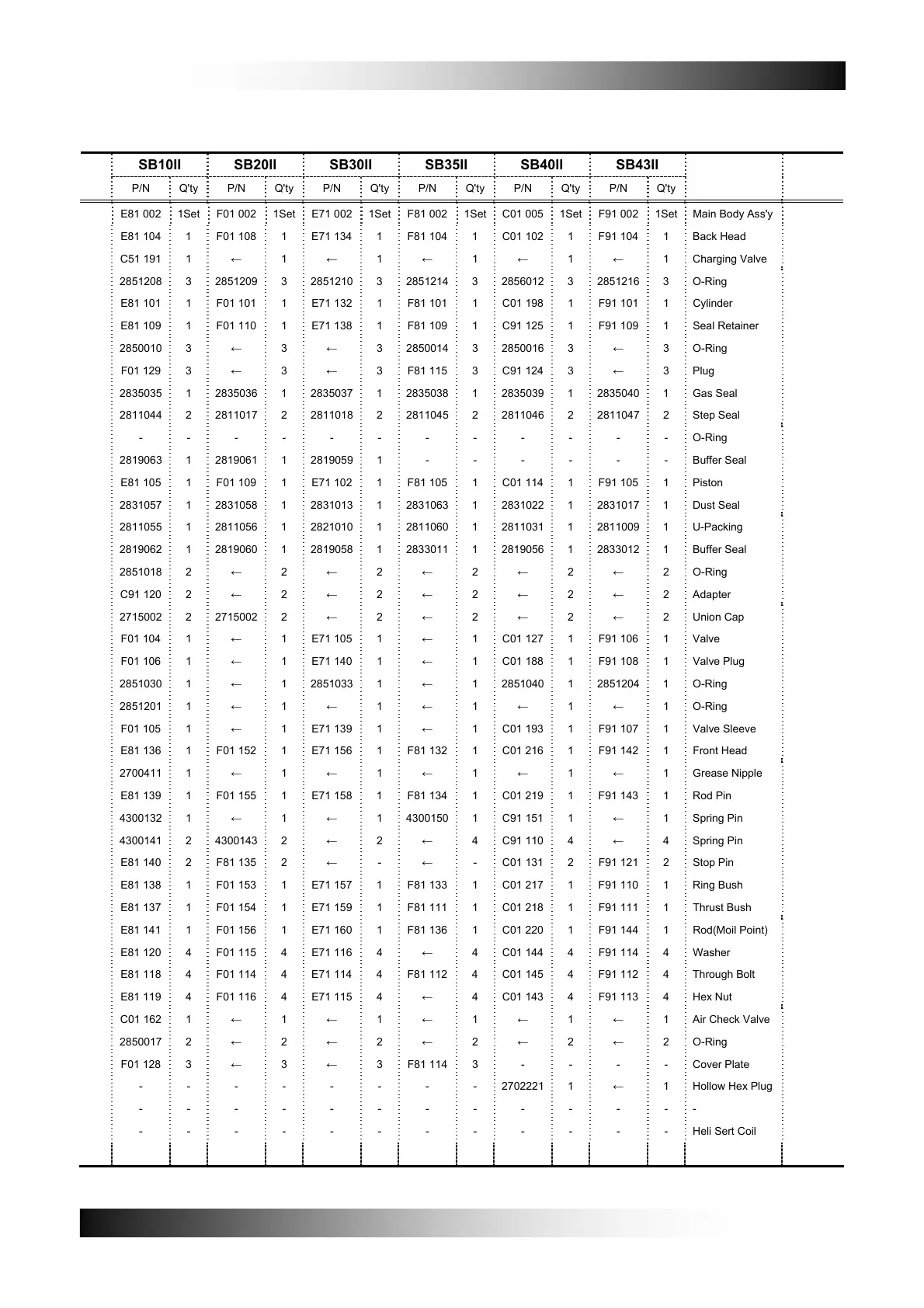

■ MAIN BODY (SB10II,20II,30II,35II,40II,43II)
SB10II SB20II SB30II SB35II SB40II SB43II
NO
P/N Q'ty P/N Q'ty P/N Q'ty P/N Q'ty P/N Q'ty P/N Q'ty
PARTS NAME REMARK
E81 002 1Set F01 002 1Set E71 002 1Set F81 002 1Set C01 005 1Set F91 002 1Set Main Body Ass'y
1 E81 104 1 F01 108 1 E71 134 1 F81 104 1 C01 102 1 F91 104 1 Back Head
2 C51 191 1 ← 1 ← 1 ← 1 ← 1 ← 1 Charging Valve
3 2851208 3 2851209 3 2851210 3 2851214 3 2856012 3 2851216 3 O-Ring
4 E81 101 1 F01 101 1 E71 132 1 F81 101 1 C01 198 1 F91 101 1 Cylinder
5 E81 109 1 F01 110 1 E71 138 1 F81 109 1 C91 125 1 F91 109 1 Seal Retainer
6 2850010 3 ← 3 ← 3 2850014 3 2850016 3 ← 3 O-Ring
7 F01 129 3 ← 3 ← 3 F81 115 3 C91 124 3 ← 3 Plug
8 2835035 1 2835036 1 2835037 1 2835038 1 2835039 1 2835040 1 Gas Seal
9 2811044 2 2811017 2 2811018 2 2811045 2 2811046 2 2811047 2 Step Seal
10 - - - - - - - - - - - - O-Ring
11 2819063 1 2819061 1 2819059 1 - - - - - - Buffer Seal
12 E81 105 1 F01 109 1 E71 102 1 F81 105 1 C01 114 1 F91 105 1 Piston
13 2831057 1 2831058 1 2831013 1 2831063 1 2831022 1 2831017 1 Dust Seal
14 2811055 1 2811056 1 2821010 1 2811060 1 2811031 1 2811009 1 U-Packing
15 2819062 1 2819060 1 2819058 1 2833011 1 2819056 1 2833012 1 Buffer Seal
16 2851018 2 ← 2 ← 2 ← 2 ← 2 ← 2 O-Ring
17 C91 120 2 ← 2 ← 2 ← 2 ← 2 ← 2 Adapter
18 2715002 2 2715002 2 ← 2 ← 2 ← 2 ← 2 Union Cap
19 F01 104 1 ← 1 E71 105 1 ← 1 C01 127 1 F91 106 1 Valve
20 F01 106 1 ← 1 E71 140 1 ← 1 C01 188 1 F91 108 1 Valve Plug
21 2851030 1 ← 1 2851033 1 ← 1 2851040 1 2851204 1 O-Ring
22 2851201 1 ← 1 ← 1 ← 1 ← 1 ← 1 O-Ring
23 F01 105 1 ← 1 E71 139 1 ← 1 C01 193 1 F91 107 1 Valve Sleeve
24 E81 136 1 F01 152 1 E71 156 1 F81 132 1 C01 216 1 F91 142 1 Front Head
25 2700411 1 ← 1 ← 1 ← 1 ← 1 ← 1 Grease Nipple
26 E81 139 1 F01 155 1 E71 158 1 F81 134 1 C01 219 1 F91 143 1 Rod Pin
27 4300132 1 ← 1 ← 1 4300150 1 C91 151 1 ← 1 Spring Pin
28 4300141 2 4300143 2 ← 2 ← 4 C91 110 4 ← 4 Spring Pin
29 E81 140 2 F81 135 2 ← - ← - C01 131 2 F91 121 2 Stop Pin
30 E81 138 1 F01 153 1 E71 157 1 F81 133 1 C01 217 1 F91 110 1 Ring Bush
31 E81 137 1 F01 154 1 E71 159 1 F81 111 1 C01 218 1 F91 111 1 Thrust Bush
32 E81 141 1 F01 156 1 E71 160 1 F81 136 1 C01 220 1 F91 144 1 Rod(Moil Point)
33 E81 120 4 F01 115 4 E71 116 4 ← 4 C01 144 4 F91 114 4 Washer
34 E81 118 4 F01 114 4 E71 114 4 F81 112 4 C01 145 4 F91 112 4 Through Bolt
35 E81 119 4 F01 116 4 E71 115 4 ← 4 C01 143 4 F91 113 4 Hex Nut
36 C01 162 1 ← 1 ← 1 ← 1 ← 1 ← 1 Air Check Valve
37 2850017 2 ← 2 ← 2 ← 2 ← 2 ← 2 O-Ring
38 F01 128 3 ← 3 ← 3 F81 114 3 - - - - Cover Plate
39 - - - - - - - - 2702221 1 ← 1 Hollow Hex Plug
40 - - - - - - - - - - - - -
41 - - - - - - - - - - - - Heli Sert Coil U81 175
42 - - - - - - - - - - - - Hex Head Plug 2702193
* ( ) is applied to SB40.
