2. Mount and connect the device
Mount the antennas
Connect the provided antennas to the connectors on the back of your appliance and
align them in a vertical position.
Connect the ports to the internal and external networks.
1. Connect the Port 1/LAN port via a hub or switch to the internal network. For
this purpose, please use the RJ45 Ethernet cable of the scope of supply. Note
that your administration client PC must also be connected to this network.
2. Connect the Port 2/WAN to the external network. The connection
to the WAN depends on the type of Internet access.
The XG devices are shipped with the following default settings:
Ethernet Port IP Address Zone
1 172.16.16.16/255.255.255.0 LAN
2 DHCP WAN
Admin Console Username admin Default Gateway DHCP
Admin Console Password admin DNS proxy Enabled
CLI Console Password admin DHCP service Enabled
Mount the appliance to the rack
If you want to mount the device within a rack please use the optionally available
rackmount kit for this device.

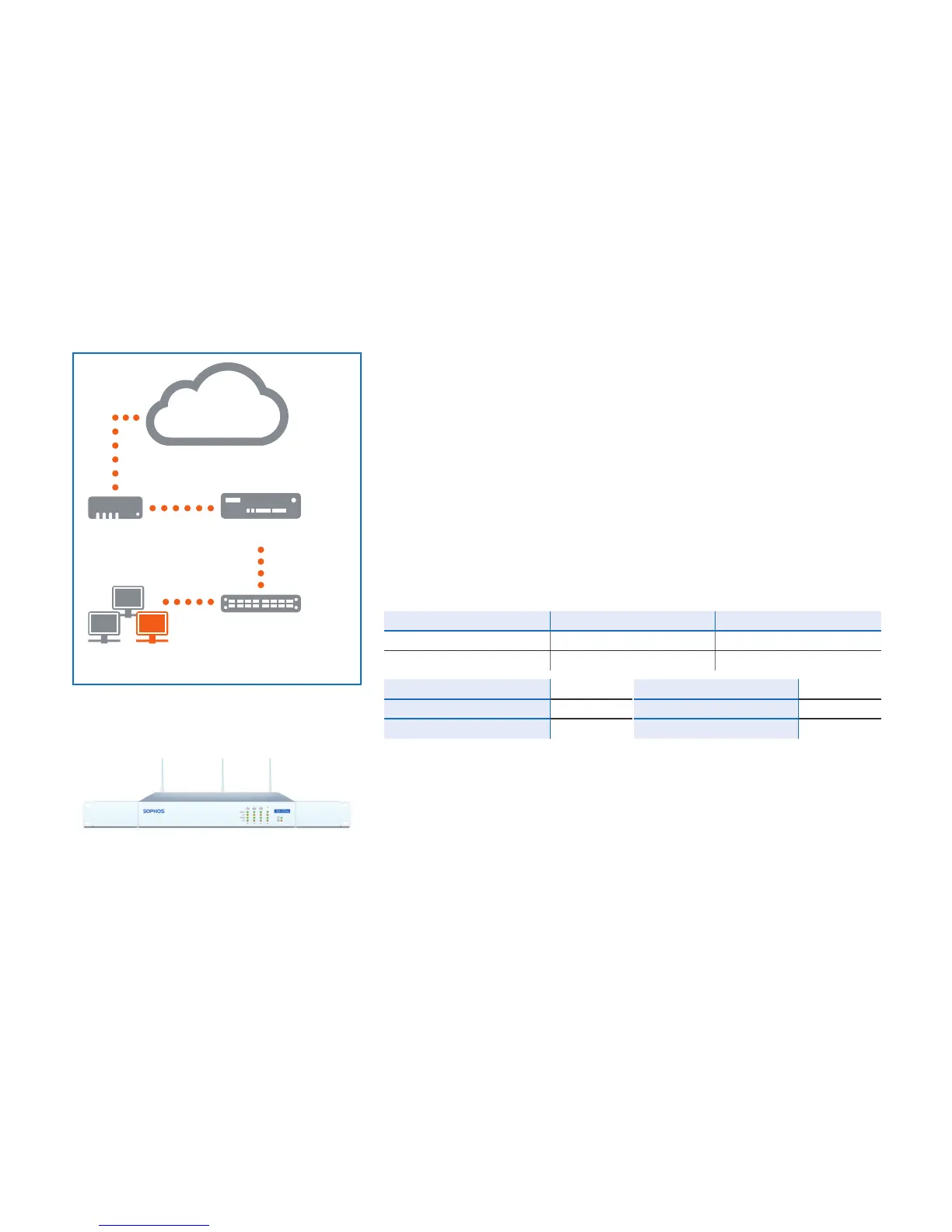

Quick Start Guide XG 85w/105w/115w/125w/135w
Internet
e.g.,
DSL modem
Internal network
admin client PC
XG Appliance
Switch
Port 2/WAN
Port 1/LAN
