Sound LAB G742BB - Page 6

Make this unit and all connecting units are switched off before connecting
microphones and all controls are set to zero.
Complies with: EN 60065 EN 55103
Fus
e: T3.15A. A/S 250V 5x20mm
(Ref
No. F126N)
230
V~50Hz 360VA
Ta
max - 35ºC
THI
S UNIT MUST BE EARTHED
2 x 100W @ 4
Right
Lef
t
2 x 75W @ 8
FOR PROFESSIONAL U
ONLY
2
3

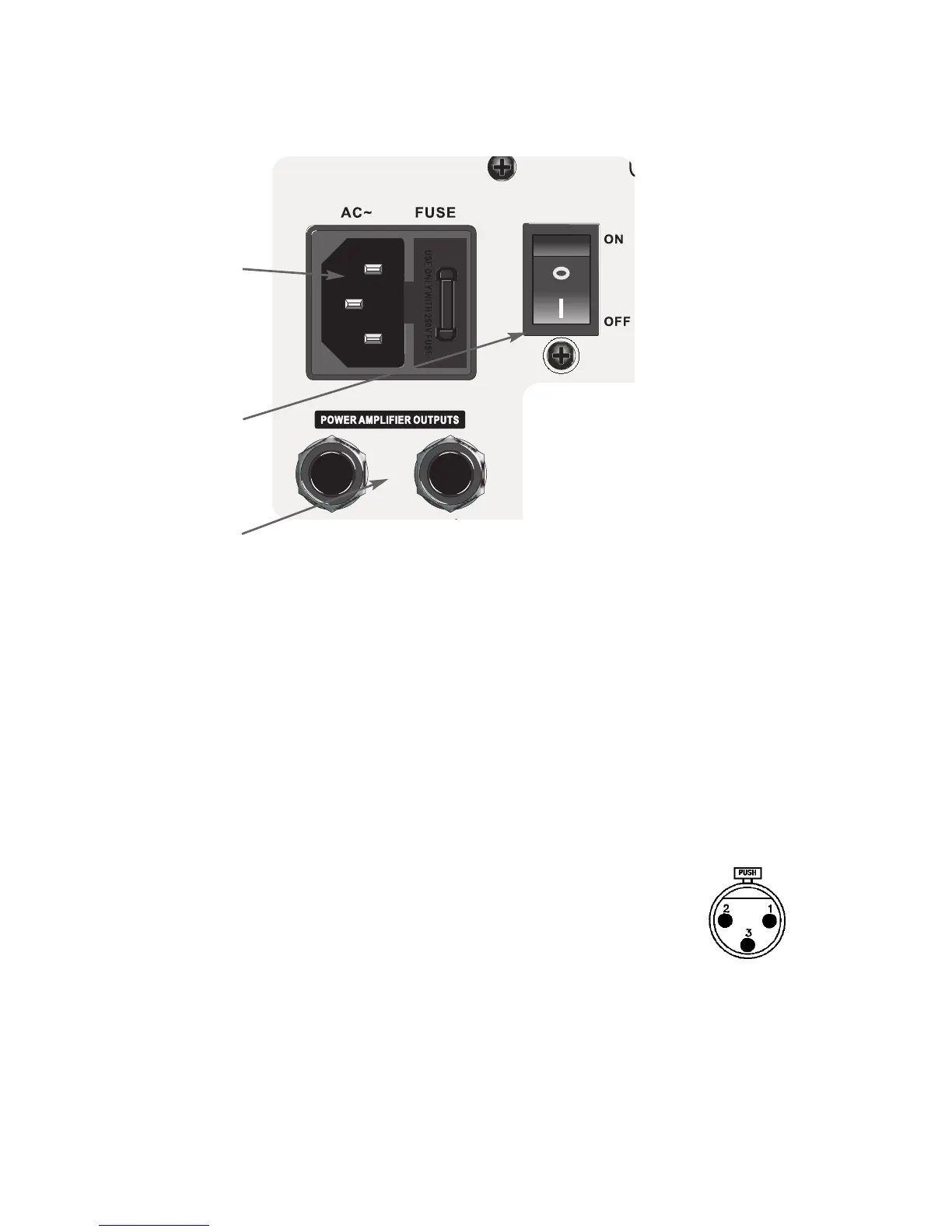

Rear of Unit (Diag. 5)
1. AC inlet. Power inlet for use with IEC mains lead
2. On/off switch. Press this switch to turn the unit on.
3. Power outputs to speakers.
Microphone Connections
1
Balanced Operation Unbalanced Operation
Pin 1 Screen Pin 1 Screen
Pin 2 Signal (Live) Pin 2 Signal
Pin 3 Signal (Return) Pin 3 Short to pin 1
Diag. 5
