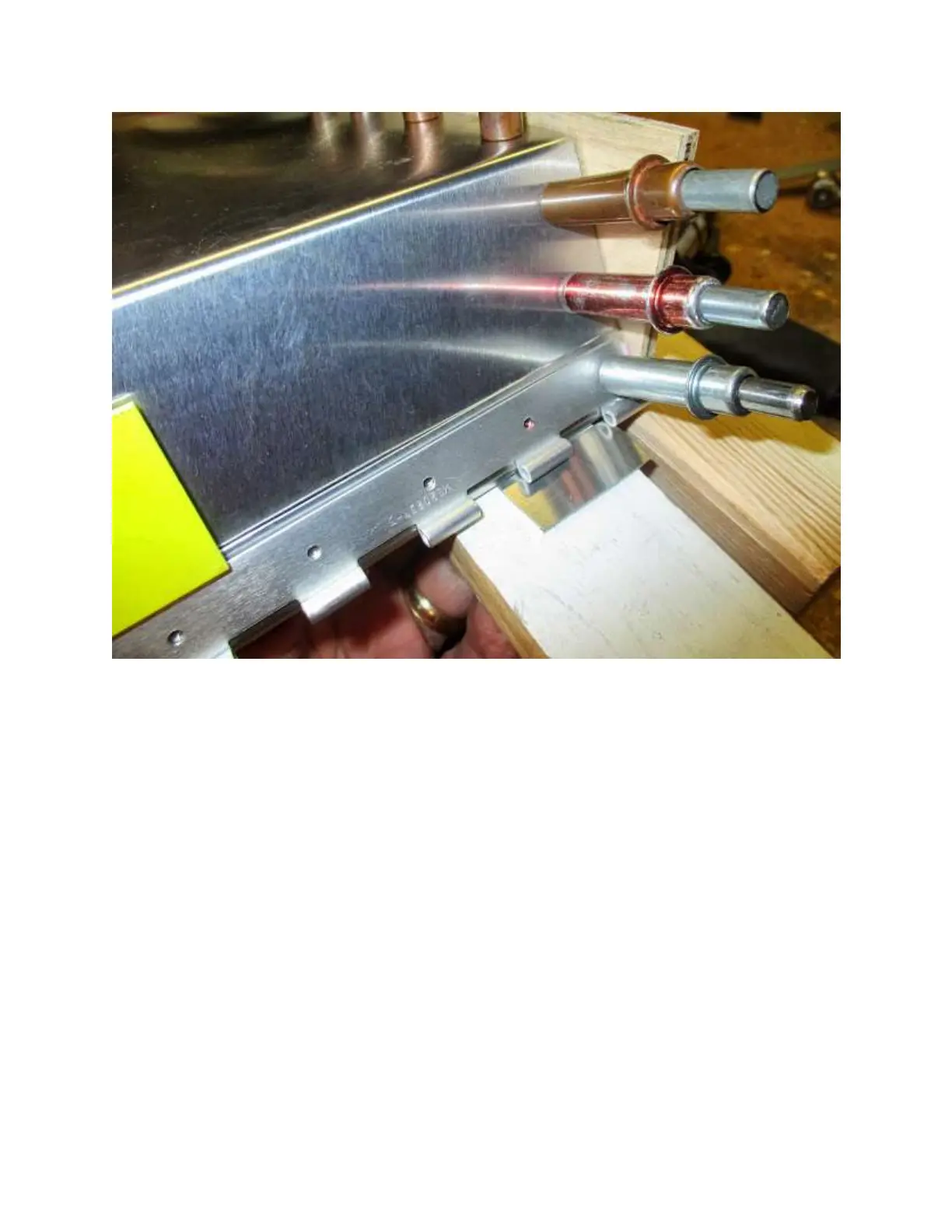

10. Remove the clecos from the hinge and right side of rudder and return the skin front
to under the shorter flange and re-cleco rudder and hinge. With rudder on flat
surface up drill all holes to #30 cleco-ing as you go.
*NOTE again use care when drilling hinge and the aft of the skin to ribs to
prevent damage to outer adjacent skin surface!
11. Disassemble, debur and dimple as needed.
12. Re-assemble and rivet with rudder on flat surface except rib 3.
13. With all other rivets installed un-cleco rib 3 and remove the fixture block, then re-
install rib and rivet.
14. Install and rivet the rudder horn (fitted in step one, but not riveted until now)
