SPALDING M316001 - Page 12

12
ID# M316001 01/07
1.
8
6
10
32
32
10
30
30
30
30
10
6

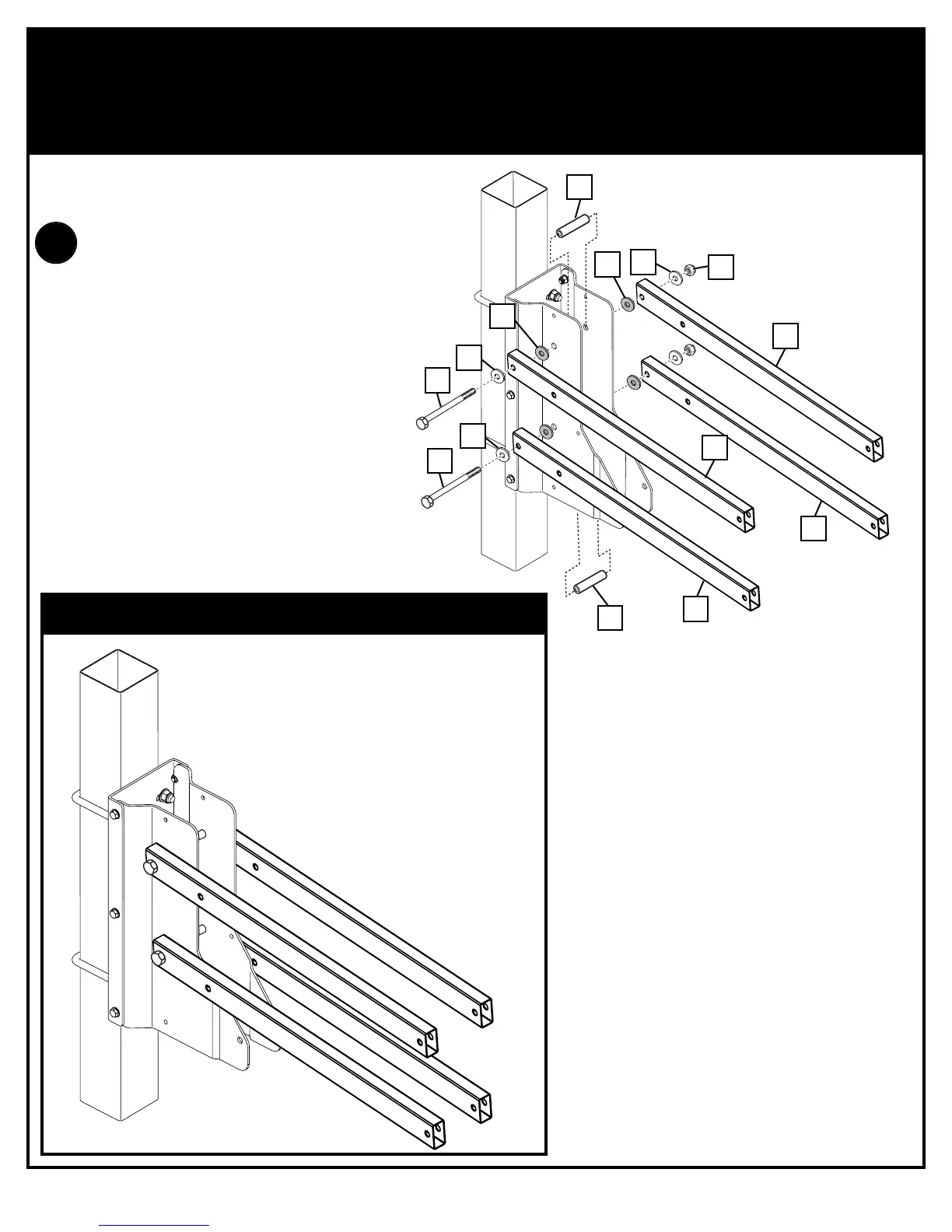

Attach elevator tubes (30) to the
jack support brackets (18 & 19)
using bolts (6), washers (10),
spacers (31 & 32) and nuts (8)
as shown.
31
31
Completed Assembly
SECTION B:
FROM THIS SECTION FORWARD
THE ASSEMBLIES ARETHE SAME FOR SQUARE AND ROUND POLE, WALL MOUNT, AND
ROOF MOUNT
