SPALDING M316001 - Page 4

4
ID# M316001 01/07
Item
Qty. Part No. Description
1 2 205807 U-Bolt, Round 3/8-16 x 4.68
2 2 202675 Clamp, Saddle
3 6 203589 Bolt, Hex Head, 5/16-18 x 1-1/4” Long
4 1 201129 Spacer, 1.8 Long
5 1 240017 Bolt, Hex Head, 1/4-20 x 2-1/4" Long
6 5 205678 Bolt, Hex Head, 1/2-13 x 7" Long
7 1 588000 Label, Warning
8 9 206340 Locknut, Hex Head, 1/2-13
9 12 203218 Washer, Flat, 5/16
10 10 202651 Washer, Flat, 1/2
11 6 203099 Locknut, Nylon Insert, 5/16
12 1 509000 Label, Height-Adjustment
13 1 240027 Nut, Hex, Locking 1/4-20
14 2 265500 Bolt, Hex Head, 1/2-13 x 1" Long
15 4 202587 Spacer, Plastic, 1" Long
16 3 206269 Spacer, Metal, .75 O.D., 4” Long
17 1 908525 Bracket, Pole
18 1 908528 Bracket, Jack Support, RIGHT
Item
Qty. Part No. Description
19 1 908529 Bracket, Jack Support, LEFT
20 2 900846 Bracket, Elevator
21 1 206234 Sleeve, Plastic, Height-Indicator
22 1 806259 Handle Assembly, Crank
23 2 906206 Struts, Board Support
24 1 818093 Screw Jack Assembly
25 2 204620 Spacer, Plastic, .73 O.D., 1.7” Long
26 1 906349 Bracket, Angle, RIGHT
27 1 906350 Bracket, Angle, LEFT
28 1 211236 Label, Height-Indicator
29 2 220150 U-Bolt, Square, 1/2-13 x 5
30 4 901883 Tube, Elevator
31 2 201656 Spacer, Metal .3.5” Long
32 4 265533 Washer, Flat, Nylon
33 4 205593 Locknut, Nylon Insert, 3/8-16
34 4 203232 Washer, 3/8

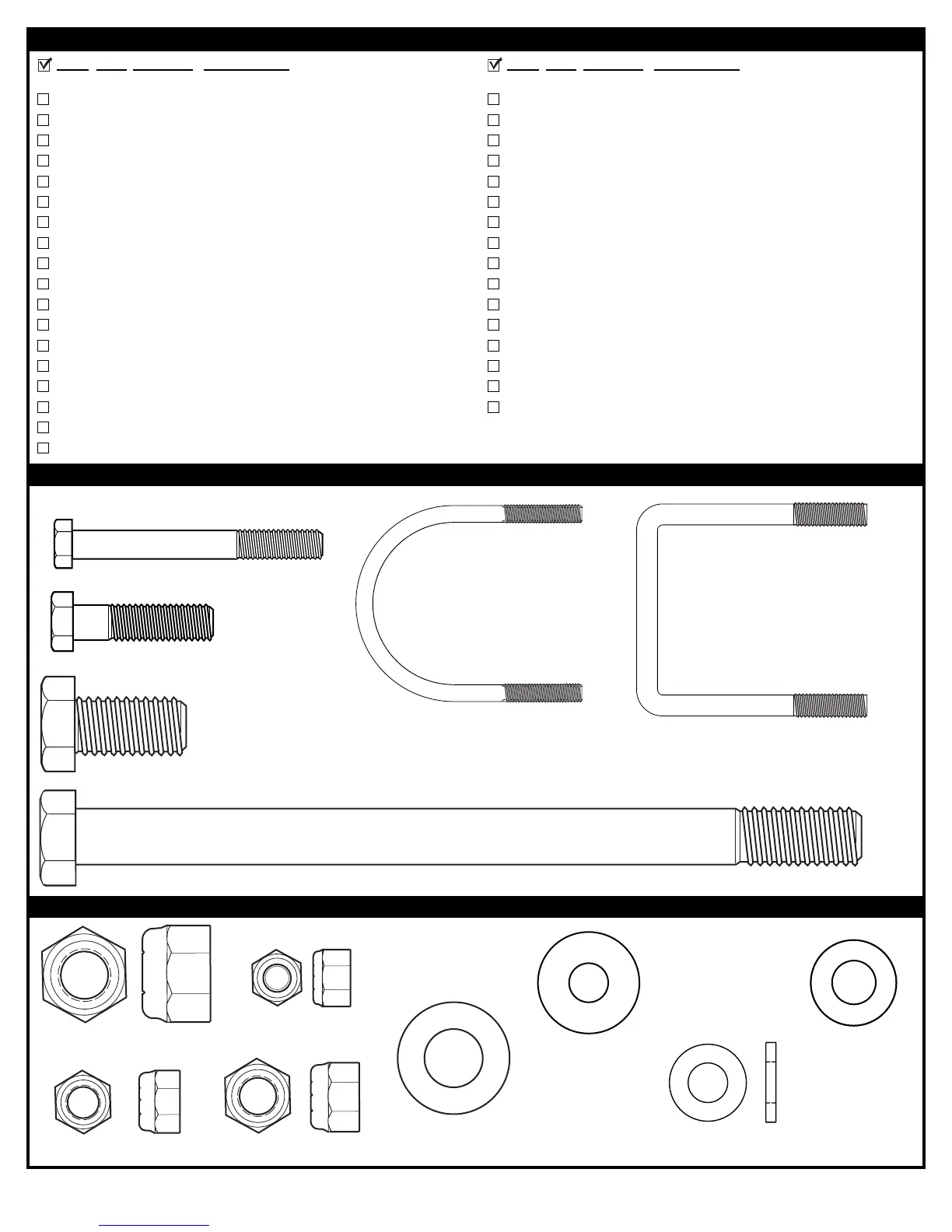

PARTS LIST - See Hardware Identifier
#8 (9)
#9 (12)
#34 (4)
#10 (10)
#11 (6)
#33 (4)
#13 (1)
#6 (5)
#5 (1)
#14 (2)
#1 (2) -
(NOT ACTUAL SIZE)
#29 (2) - (NOT ACTUAL SIZE)
#3 (6)
HARDWARE IDENTIFIER - ACTUAL SIZE (BOLTS AND SCREWS)
HARDWARE IDENTIFIER (NUTS AND WASHERS)
#32 (4)
