Tick Spa Configuration Button A Button B Button C
No small circ pump
P1 & P2 = 1 speed
Jet pump 1 :
On/Off/Auto
Jet pump 2:
On / Off
No Function
No small circ pump
P1, P2 & P3 = 1 speed
Jet pump 1 :
On/Off/Auto
Jet pump 2:
On / Off
Jet pump 3:
On / Off
No small circ pump
P1 = 2 speed
Jet pump 1 :
Low / Off / Auto
Jet pump 1:
High / Low
No Function
No small circ pump
P1 = 2 speed, P2 fitted
Jet pump 1 :
Low / Off / Auto
Jet pump 1:
High / Low
Jet pump 2:
On / Off
Small circ pump fitted
P1 & P2 = 1 speed
Small circ pump :
On/Off/Auto
Jet pump 1:
On / Off
Jet pump 2:
On / Off
Small circ pump fitted
P1, P2 & P3 = 1 speed
Jet pump 1 :
On / Off
Jet pump 2:
On / Off
Jet pump 3:
On / Off
Small circ pump fitted
P1 = 2 speed
Small circ pump :
On/Off/Auto
Jet pump 1:
Low / Off
Jet pump 1:
High / Low
Small circ pump fitted
P1 = 2 speed, P2 fitted
Small circ pump :
On/Off/Auto
Jet pump 1:
Low / High / Off
Jet pump 2:
On / Off

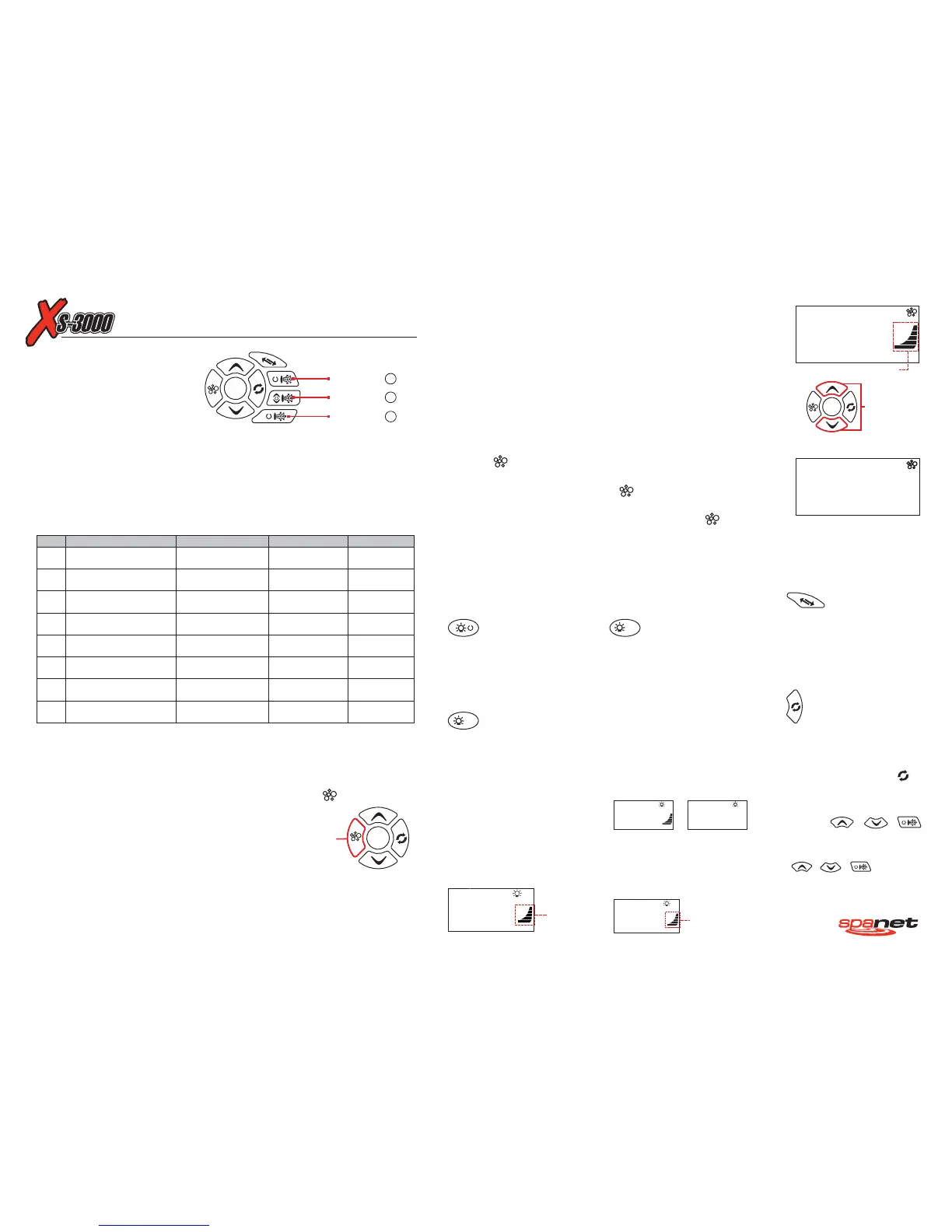

The functions of the three buttons change depending on pump / controller configuration. The
intention is to make best possible use of these buttons for all possible configurations. For
every press of a pump button, the display will temporarily show the selected pump state:
then revert to the default display mode. All possible pump
configurations & button sequences are referenced in the table below.
ON / OFF / LOW / HIGH / AUTO
(Please tick your spa
configuration for ease of future reference). If left ON pumps will automatically time-out after 20 mins
There are three pump buttons on
the right hand side of the touch pad.
Button-A, Button-B and Button-C
(refer aside).
Pump Operation
The XS-3000 features a variable speed blower. Press the ( ) button to toggle the
blower The button is backlit green when the blower is ON.
BLOWER
ON / OFF.
When the blower is first turned on the screen
displays its operating mode (ie VARI) and then
switches to the (blower speed) adjustment screen where the bar graph illustrates
current speed
B.SPD
B.SPD UP
DOWN
(refer picture top right). Whilst the screen is displayed use the and
buttons to adjust the blower speed. Once your desired speed has been selected
Blower Operation
Variable-Speed Mode (VARI)
OK
Use to adjust
blower speed
°C
°F
MODE
SPD
BRT
SPDSPD
OFF
ON
6.S PD
Bargraph indicates blower speed
Three light buttons are used to control the many features of the colour LED spa
light. The button functions are described below.
Light Operation
Quick Start
GUIDE
press the button to confirm or wait for the 10 second screen time
out where the screen reverts to the default display mode. The blower speed
adjustment screen is only shown when the blower is first turned ON.
To adjust the blower speed once the blower is already running you must turn
the blower OFF and then back ON to get to the adjustment.
OK B.SPD
(B.SPD)
B.SPD
Note: The last used blower speed will be remembered and used as the default speed the next
time the blower is turned on in this mode
.
Press to toggle light and .
The button is backlit green to indicate
when the light has been turned on.
The backlight turns off with the light.
ON OFF
I
Light ON / OFF
Whilst this menu is displayed use the
or button to adjust light brightness.
UP
DOWN
Light Brightness (L.BRT)
AM
PM
OFF
ON
°C
°F
MODE
SPD
BRT
SATSUNMONTUEWEDTHUFRI
L.6RT
Bargraph
indicates
brightness
MOD
Light COLOUR MODE
AM
PM
OFF
ON
°C
°F
MODE
SPD
BRT
SAT SUN MON TUE WED THU FRI
PRTY
Bargraph
indicates
colour mode
Press to activate the
menu. The current light mode will be
displayed . Use the and
buttons to step through the
five colour modes
. Press to
confirm selection and exit menu or
wait for the 10 sec idle menu timeout
where the screen reverts to the
default display mode.
L.MOD
UP
DOWN
(WHTE / U.CLR /
FADE / STEP / PRTY) OK
(light mode)
(refer below)
Some XS-3000 models feature blower mode. If RAMP mode is available the
( ) button will toggle as follows: If RAMP mode
is selected the blower speed is continually ramped between low and high speeds.
To access RAMP mode press the ( ) button twice when the blower is
first turned ON. The display will show VARI on the first button press and then RAMP
on the second press. Once running a further press of the ( ) button
will turn the blower OFF.
RAMP
BLOWER VARI / RAMP / OFF.
BLOWER
BLOWER
Inactivity Timer: If spa in manual use blower will time-out 20 mins after the last button press
Oscillating Mode (RAMP) - Model Dependant
Special Function Buttons
Press to display 180 for
ease of use when in spa. The
and button functions also
invert to match the new display.
INVERT
UP
DOWN
o
INVERT Display
Blower mode display screen
°C
°F
MODE
SPD
BRT
MODE
SPD
BRT
OFF
ON
AM
PM
AM
PM
RA MP
SPD/
CLR
Light SPEED / COLOUR
AM
PM
OFF
ON
°C
°F
MODE
SPD
BRT
SAT SUN MON TUE WED THU FRI
L.SPD
AM
PM
OFF
ON
°C
°F
MODE
SPD
BRT
MODE
SPD
BRT
SAT SUN MON TUE WED THU FRI
CL
:
01
L.SPD Menu U.CLR Menu
Press to activate the /
menu. The current
light speed OR colour number will be
displayed . Use the and
buttons to adjust the light speed
OR select from 30 colour choices. Press
to confirm selection or wait for the
10 sec idle menu timeout where the
screen steps to the
adjustment.
L.SPD
U.CLR
UP
DOWN
OK
L.BRT
(light speed)
(user colour)
(refer below)
(light brightness)
( If WHTE mode is selected
this button has NO function).
Note:
Manufactured by
I
Whilst the default display mode is shown
press and hold
( + + ) for 2 secs to
pad. Repeat the button sequence to
and restore button functions.
UP + DOWN + PUMP A
LOCK
UNLOCK
I
Key Lock
+
+
OneTOUCH Clean
Press once after spa use to
activate a sanitisation & clean up cycle
to restore and refresh water quality. If
cycle running, cycle can be cancelled
by pressing the
button
OneTOUCH ()
again.
OK
Press to toggle
ON / OFF
I
I
I
OK
Pump Button
Pump Button
Pump Button
A
B
C
Note: In some configurations if heater is ON activating multiple pumps OR turning the blower ON may cause the spa control to
load shed and turn heater OFF. This is to keep the system within its maximum power load.
