INSTALLATION
INSTALLATION
Receiver Clip
DC 24V/4.75A
ANT
SUB OUT
1
2
3
4
ID CODE
SA 2.1 Receiver
SPEAKER LEVEL OUTPUTS
Push the SA 2.1 Receiver
Down so the Receiver Clip
slides into the
Mounting Bracket
Subwoofer or
Equipment Cabinet
Side Wall
Receiver Clip
Mounting Bracket
Position Antenna Full Vertical
Attach Mounting Bracket to
Subwoofer or Equipment
Cabinet side wall.
(Screws not included.)

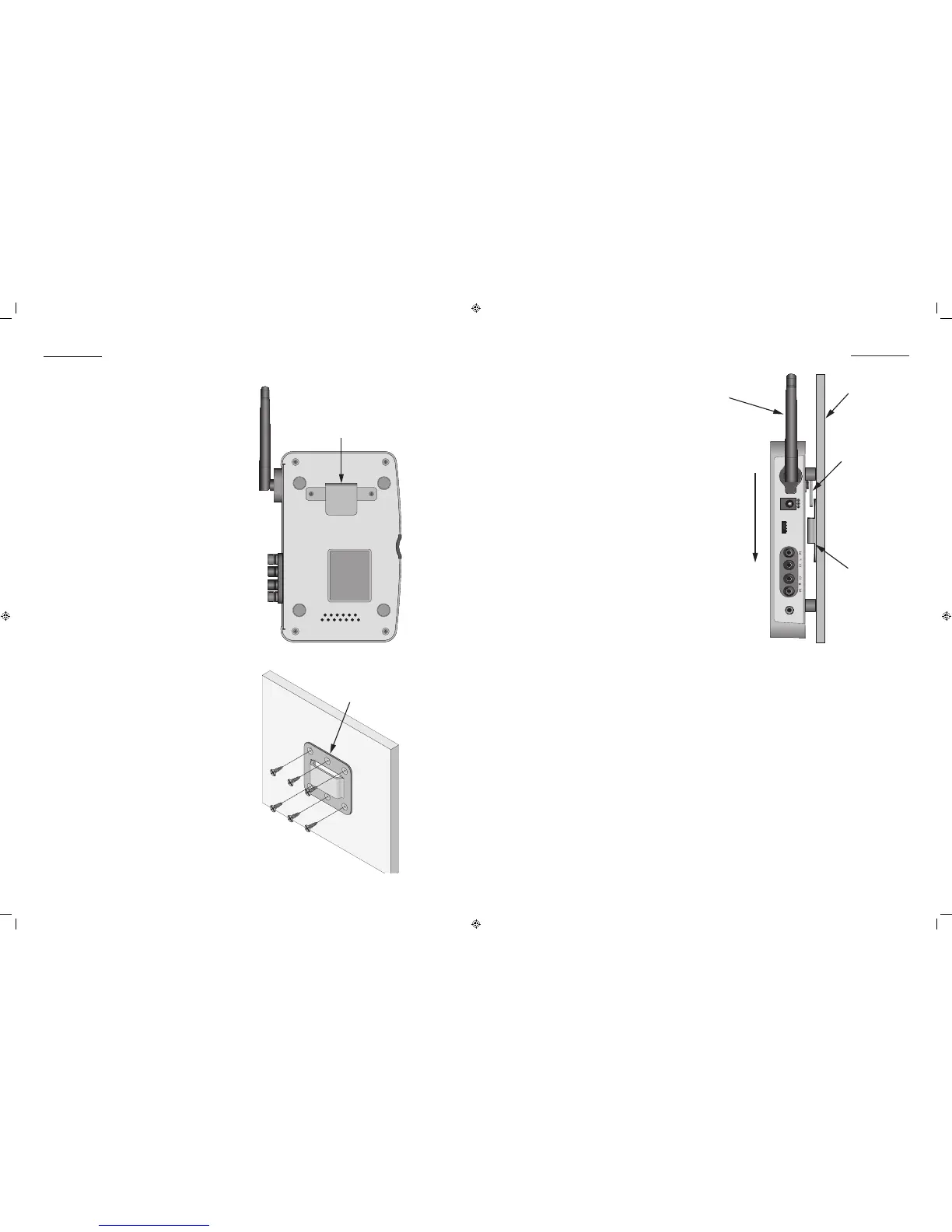

Figure 7 SA 2.1 Receiver Clip
Figure 8 SA 2.1 Receiver Mounting Bracket
Figure 9 Mounting the SA 2.1 Receiver
Mounting the SA 2.1 Receiver (Optional)
The included Mounting Bracket can be used
to conveniently and inconspicuously mount
the SA 2.1 Receiver directly to a subwoofer
or cabinet sidewall.
This allows greater exibility in subwoofer
placement options by eliminating the restric-
tion of the sub having to be directly hard-
wired to the A/V Receiver.
Attaching the SA 2.1 Receiver to the sub
also creates a cleaner looking setup by
eliminating the audio cable running around
the baseboards from the A/V Receiver to
the sub.
All SpeakerCraft powered subwoofers fea-
ture audio sensing that will automatically
turn the sub ON/OFF (standby) when audio
signals are output from the SA 2.1 Receiver.
Additionally, all SpeakerCraft powered subs
have variable volume and crossover con-
trols for optimization of low frequency audio
signals.
Be sure that the subwoofer is turned OFF and
disconnected from AC power before attach-
ing the Mounting Bracket.
1. Align the Mounting Bracket in a proper
vertical position on the subwoofer or
cabinet sidewall as shown in Figure 8.
2. Attach the Mounting Bracket to the sub-
woofer or cabinet sidewall as shown in
Figure 8. (Screws not included.) Be sure
to use appropriate wood screws that will
rmly attach the Mounting Bracket, but
will not protrude out the other side of the
mounting surface. Do not overtighten
the screws.
3. Align the SA 2.1 Receiver Clip over the
Mounting Bracket as shown in Figure 9.
4. Carefully slide the SA 2.1 Receiver Clip
into the Mounting Bracket.
5. Position subwoofer to its normal location.
6. Extend the SA 2.1 Receiver Antenna to a
full vertical position as shown in Figure 9.
7. Proceed to Connection Sections.
8. Do not reconnect AC power to the sub
until all system connections are com-
plete.
9. After all connections have been made
and conrmed and the sub has been
reconnected to AC power, set the sub-
woofer Power Switch to AUTO (or other
audio sensing position as dened by
brand). Please refer to the Subwoofer’s
Owners Manual for additional informa-
tion.
