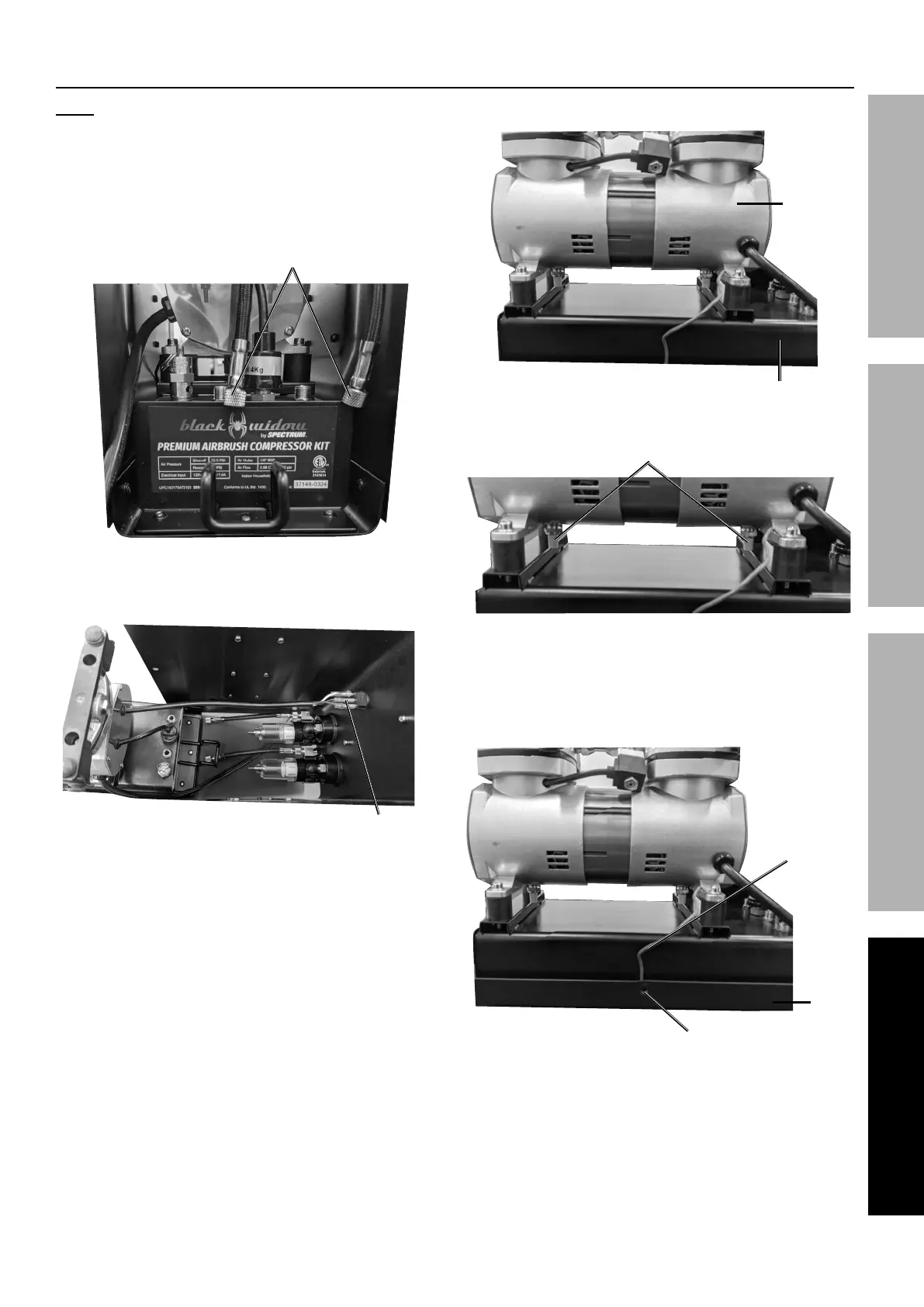

Replacing Mufflers
Note: Only use sintered bronze muffler, 1/8″ Male
NPT, 1.13″ overall length, 0.7 Cv, Norgren MS001A or
equivalent.
1. Remove Screws on Cover using Torx-type
screwdriver (not included).
2. Remove Air Hoses.
Air Hoses
3. Tilt Cover away from Tank, then remove
Power Switch wires from Cover, noting
correct orientation of wire colors.
Power Switch Wires
4. Remove Pump from Tank.
Pump
Tank
5. Remove and Replace Mufflers.
Mufflers
6. Replace Pump.
7. Replace Power Switch wires.
8. Align ground wire with middle screw
hole on Base. Replace Cover.
Middle Screw Hole
Base
Ground
Wire
9. Replace Air Hoses.
