Spike Flow - NPT Flow Assembly Components

SPIKE FLOW USER GUIDE5

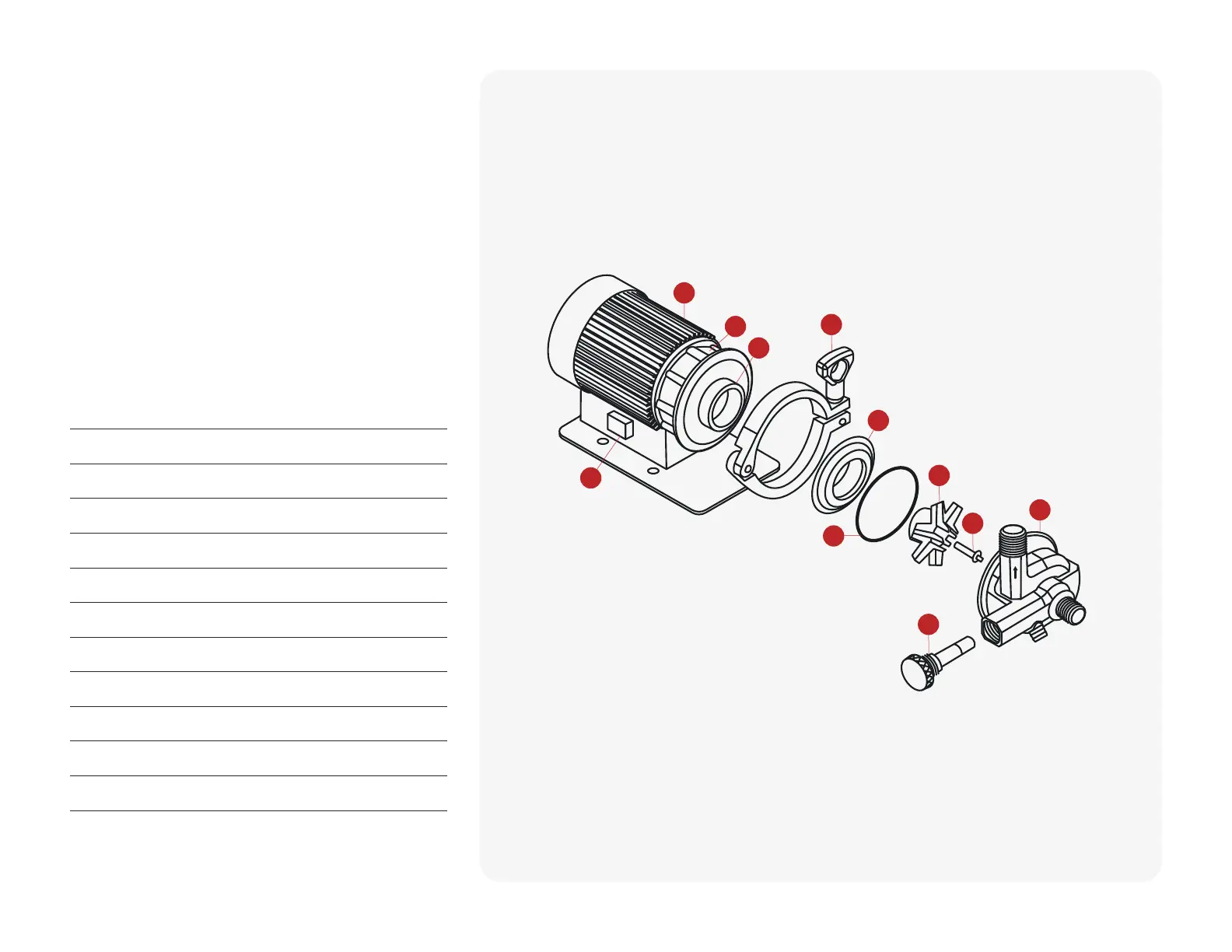

ITEM DESCRIPTION QTY
A Pump Motor 1
B Drive Magnet 1
C Motor Adapter 1
D Rear Housing 1
E Impeller 1
F 3” Tri Clamp 1
G Front Housing 1
H Front Housing Seal 1
I Impeller Shaft 1
J ARV - Air Release Valve 1
K Power Switch 1
A
C
D
G
H
E
J
I
F
K
B
Assembly –
Flow NPT
Outlet
Inlet
Note: wrap the threads with pipe tape to ensure a leak
free connection.
