STAND WALLS
8
1. TWO PEOPLE requrired to avoid damaging walls.

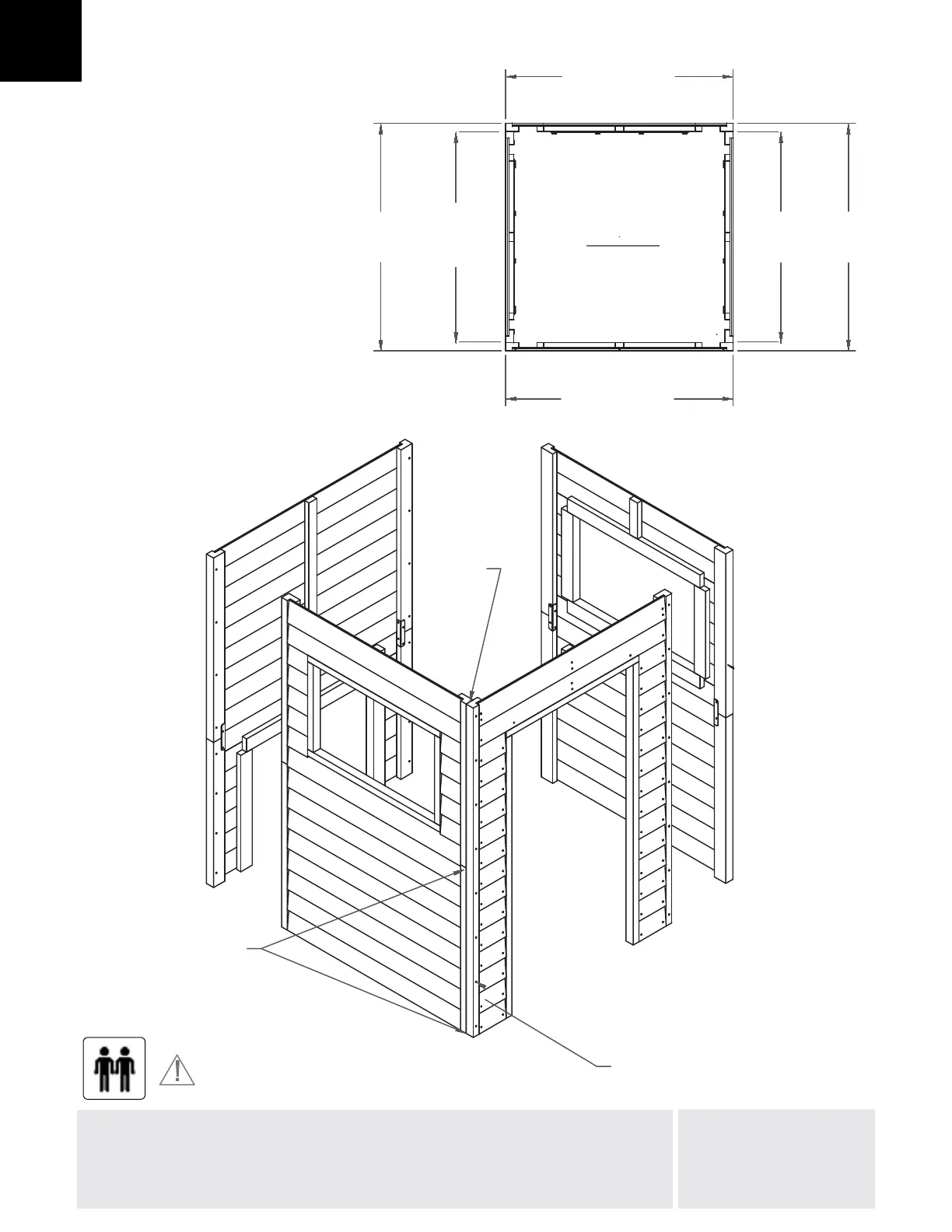

2. Stand any two walls and align to adjacent wall as shown.
3. Stand and attach remaining two walls and maintain 35” square size as shown.
NOTE: IF THE PLAY HOUSE WILL BE
INSTALLED ONTO THE PLAY DECK XXL, IT’S
RECOMMENDED TO STAND WALLS ON THE DECK
Parts Required:
Wall Assemblies X4
1. TWO PEOPLE required to avoid damaging walls
2. Stand any two walls and align flush to adjacent wall as shown
3. Stand and attach remaining two walls and maintain 35" square size as shown
#8 x 2.25" Wood Screw
X32
Frames
flush
35.000
[889.0]
35.000
[889.0]
32.500
[825.5]
35.000
[889.0]
35.000 [889.0]
35.000 [889.0]
Frames flush along
seams and top/bottom
8 STAND WALLS
Parts Required:
WALL ASSEMBLIES X4
Back Wall
Side Wall
Door Wall
