Spimbey 2004 - Assembly Procedures; Walls Assembly

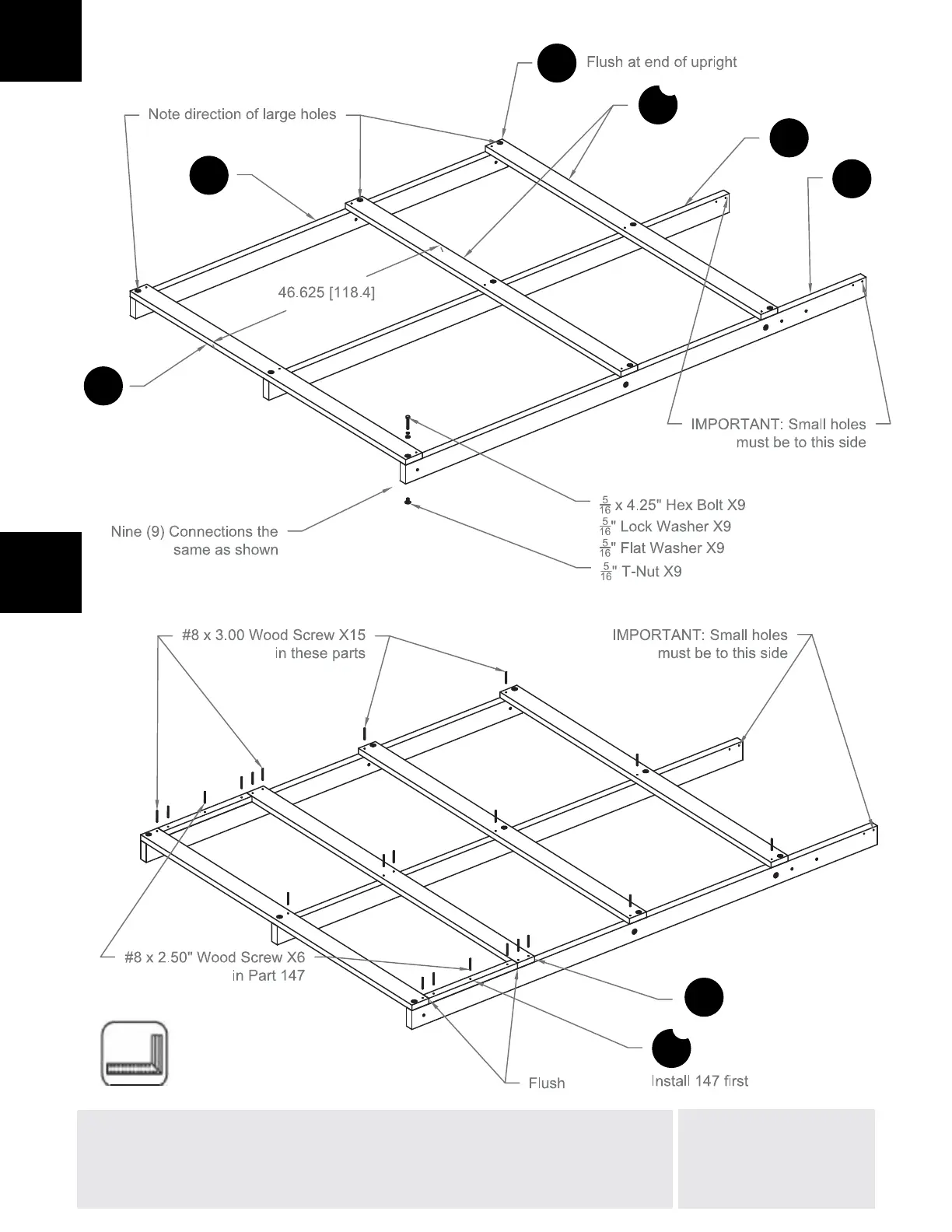

1. Layout parts and assemble as shown.
2. IMPORTANT - SEE SMALL HOLE ORIENTATION ON UPRIGHTS.
3. After walls are square install #8 wood screws.
Parts Required:
127 X1
128 X1
142 X1
143 X1
144 X1
147 X2
148 X2
WALLS
1
WALLS
2
1. Layout parts and assemble as shown.
2. IMPORTANT - SEE SMALL HOLE ORIENTATION ON UPRIGHTS.
3. After walls are square install #8 wood screws.
Parts Required:
127 X1 143 X1 148 X2
128 X1 144 X1
142 X1 147 X2
2
Part 143
Part 147 X2
#8 x 3.00 Wood Screw X15
in these parts
#8 x 2.50" Wood Screw X6
in Part 147
Important - Square wall
IMPORTANT: Small holes
must be to this side
Important - Square wall
147
2x
148
2x
148
142
127
143
144
128
