Spinder TX2 - Page 14

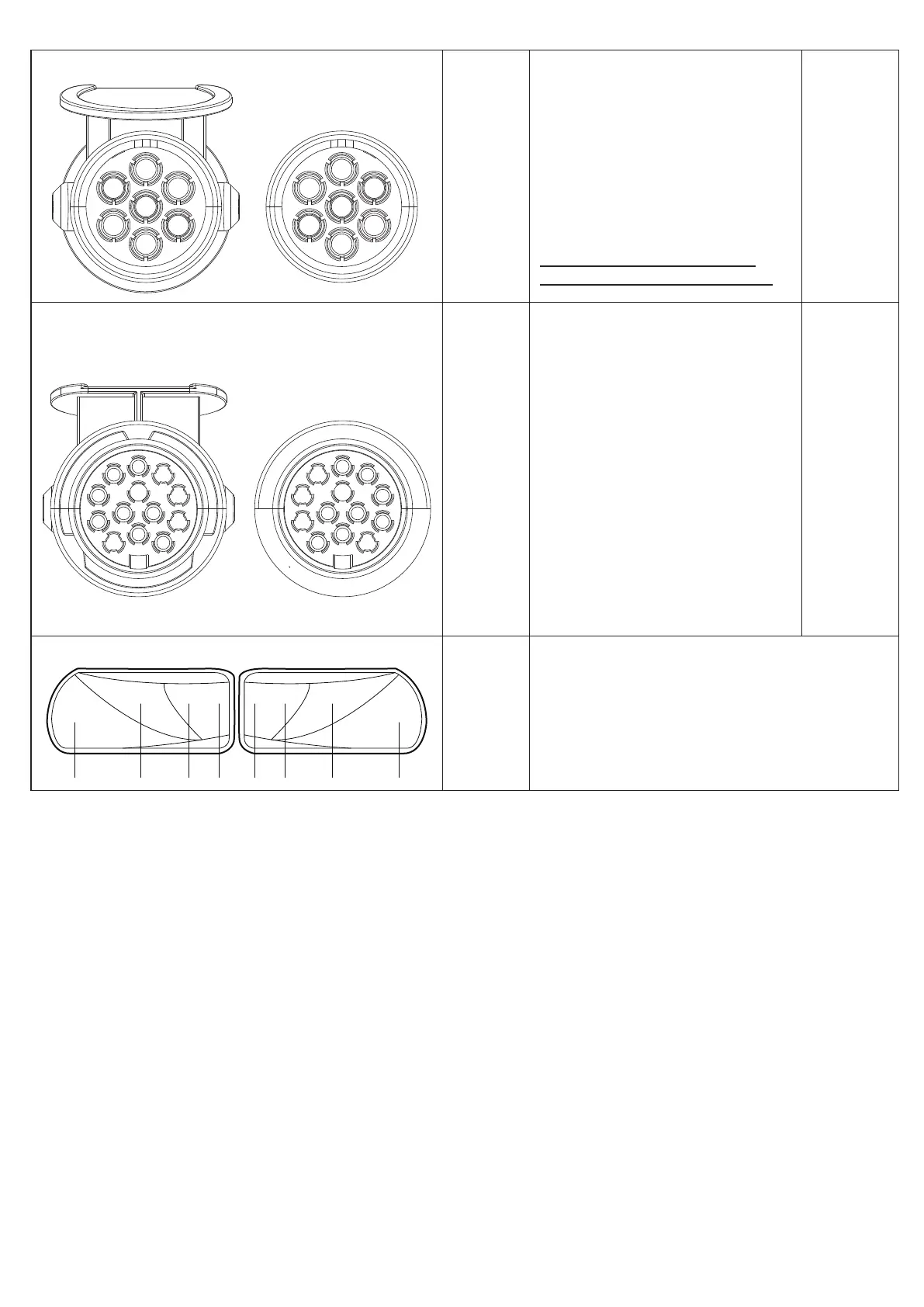

Universal system 7 pin
1/L
2/54G
3/31
4/R
5/58R
6/54
7/58L
Indicator left
Rear fog light
Ground
Indicator right
Rear light right
Stop lights
Rear light left
The reversing light is not
working via the 7-pin plug!
yellow
blue
white
green
brown
red
black
Jaeger system 13 pin
(DIN 72.570)
1
2
3
4
5
6
7
8
9
10
11
12
13
Indicator left
Rear fog light
Ground
Indicator right
Rear light right
Stop lights
Rear light left
Reversing light
Not used
Not used
Not used
Ground
Not used
yellow
blue
white
green
brown
red
black
gray
1/L
2/54G
3/31
4/R
7/58L
6/54
5/58R
1/L
2/54G
3/31
4/R
7/58L
6/54
5/58R
1
2
3
4
5
6
7
8
9
10
11
12 13
1
4
3
2
11
10
9
8
7
6
5
13 12
12V Bulb
1
2
3
4
12V 21/5W BAY15d
12V 21W BAY15d orange
12V 21W BAY15d
12V C5W
1 12 23 34 4
