SPRI IGNITE 07-71054 - Parts List; Assembly Steps; Step 1: Connecting Pipes and Stabilizers

21
24
25
22
24
13
19
19
15
35
34
5
17
25
22
19
22
34
26
19
22
26
26
1
4
2
26
32
32
26
26
27
3
15
17
35
25
25

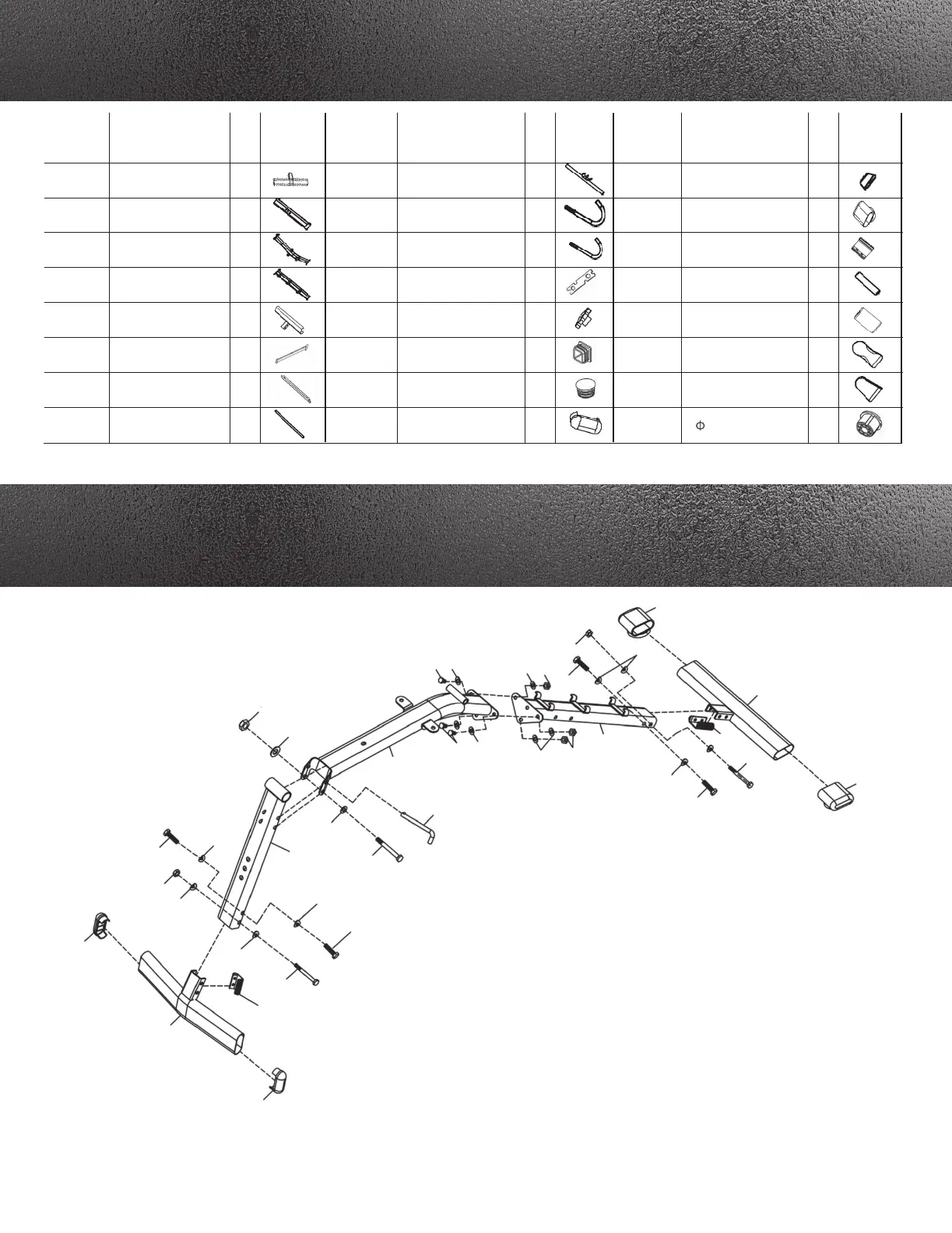

PARTS LIST continued
ADJUSTMENTS
PART NO. DESCRIPTION QTY
1 Front stabilizer 1
2 Front support pipe 1
3 Seat support pipe 1
4 Rear support pipe 1
5 Rear stabilizer 1
6 Backrest adjust pipe 1
7 Backrest Frames 2
8 Long pad tube 1
PART NO. DESCRIPTION QTY
9 Short pad tube 1
10 Long dumbbell hook 2
11 Short dumbbell hook 2
28 Wrench 2
29 Knob 1
30 Square plug 2
31 Globose plug 4
32 Oval plug 2
PART NO. DESCRIPTION QTY
33 Cushion pad 1
34 Cap 2
35 Connecting pipe over 2
36 Cover 2
37 Foam Pads 4
39 Backrest 1
40 Seat 1
41
10 Nylon bearing 2
STEP 1
1. Attach the Connecting pipe cover (35) to the Front stabilizer
(1) then attach them to the Front support pipe (2) with 1 Hex
head bolt M8*80 (15) 4 Curve washer M8 (26) and 1 Nylon
locknut M8 (22) and 2 hex head bolt M8*30 (19).
2. Attach the Connecting pipe cover (35) to the Rear stabilizer
(5) then attach them to the Rear support pipe (4) with 1 Hex
head bolt M8*80(15) 4 Curve washer M8 (26) 1 Nylon locknut
M8 (22) and 2 hex head bolt M8*30 (19).
3. Attach the Seat support pipe (3) to the Front support pipe
(2) with 1 Hex head bolt M10*90 (13) and 1 L-bolt (27) and
please take note of that the L-bolt is in the top hole.
4. Attach the Seat support pipe (3) to the Rear support pipe
(4) with 3 Hex head bolt M8*20mm (17) 6 Flat washer M8
(25) and 3 Nylon locknut M8 (22)
NOTE: Make sure you fasten the bolts securely to avoid shaking and discomfort
when using the equipment.
