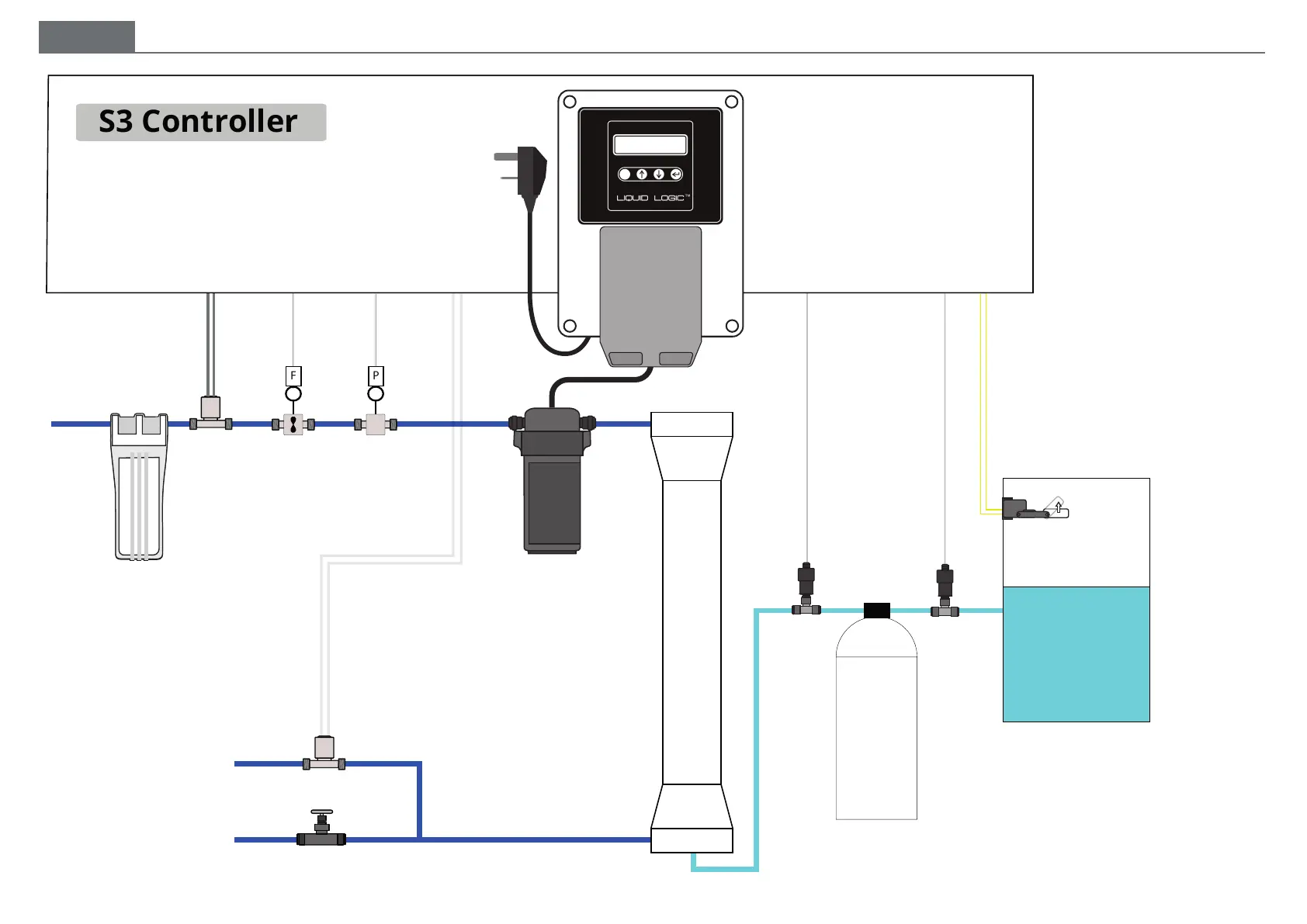

S3 Controller
FILL
WATER
IN
CARBON +
SEDIMENT
FILTERS
WASTE
WASTE
RO
FILTER
DI
VESSEL
WATER TANK
230Vac
BOOSTER
PUMP
RO INLET
SOLENOID
VALVE
FLOW
METER
PRESSURE
SENSOR
AUTOFLUSH
VALVE
MANUAL FLOW
RESTRICTOR
VALVE
TDS RO
TDS DI
HIGH LEVEL
SWITCH
AUTOFILL CONTROL
TDS DI
YELLOW
YELLOW
TDS RO
AUTOFLUSH
SOLENOID 2
PRESSURE
SENSOR
FLOW METER
FILL
SOLENOID 1
WHITE
WHITE
PLUGABLE
CONNECTOR
PLUGABLE
CONNECTOR
GREY
GREY
S3 Pump Controller
Overview
F
230Vac
PUMP
MAINS
SOCKET
P
F
230Vac
PUMP
MAINS
SOCKET
