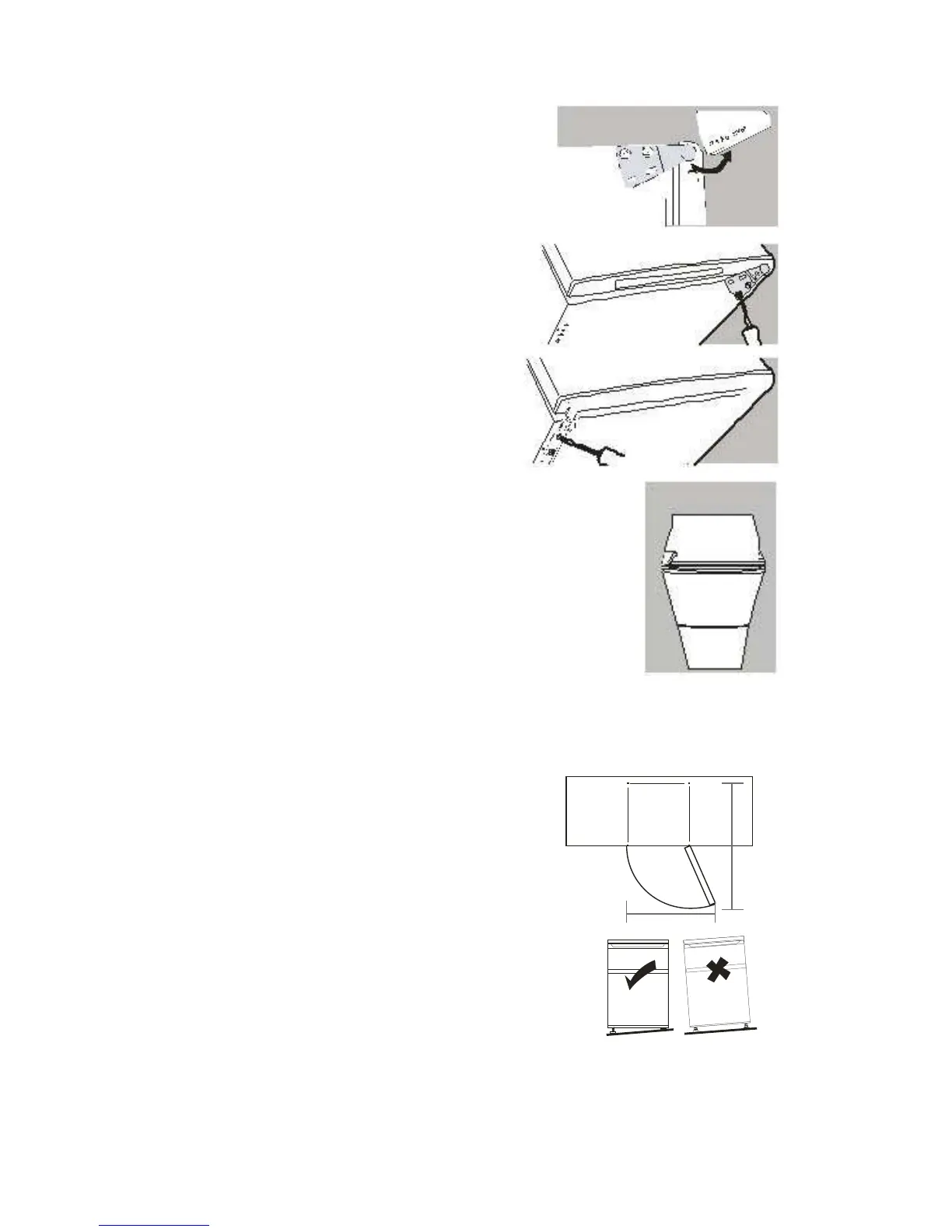

4) Remove plastic cover from the door hinge and
unscrew the two screws from the top bracket
and transfer to the other side.
5) Install top bracket with the two screws on the
other side. Slide the door onto the top hinge. Be
sure the door is the right way up. Install the
plastic cover over the top bracket by pressing
down until it clicks into position
6) Install the bottom hinge with the two screws on
the on the new side. Install foot on the other
side
7) Check and make sure door is aligned horizontally
and vertically and that the seals are closed on all
sides before final tightening of the bottom hinge.
Adjust the leveling feet as needed.
2.3 Door Space Requirements
The unit's door must be able to open fully as shown.
W×D≥31.5 in.×30.7 in.
2.4
Leveling the Unit
Adjust the two leveling feet at the front of the unit.
If the unit is not leveled, the door and magnetic seal alignments
will not be covered properly.
W
D
