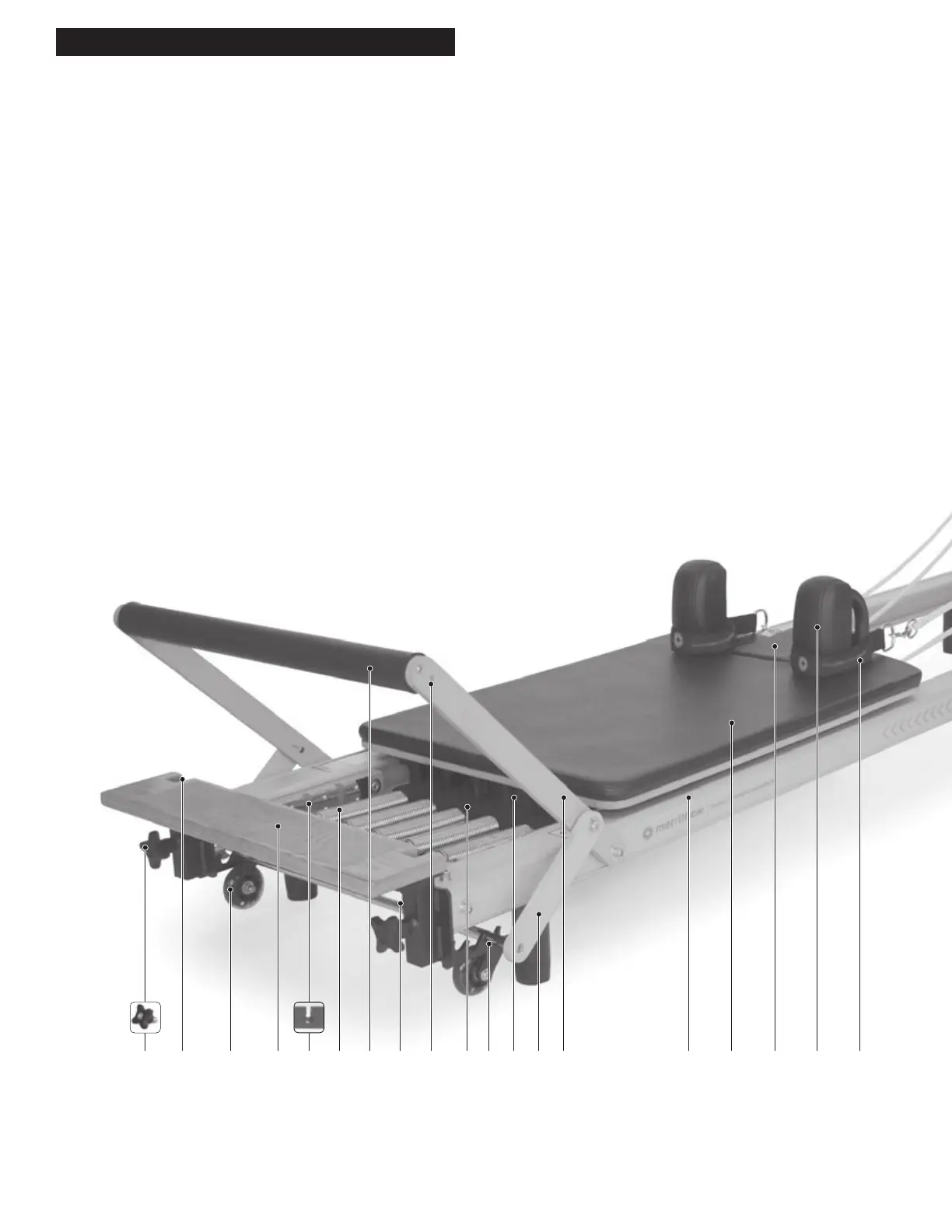

Front End
1 2 5 6 7 18 19179 10 12 13 14 15 161183 4
At Home SPX
®
Reformer
1 Star Knobs 1/2"
2 Accessory Board Receptacles
3 Easy-Roll Wheels
4 Wooden Standing Platform
5 Gearbar Slots [fig. B]
6 Springs [fig. B]
7 Footbar
8 Chrome Adjuster Bar
9 1/4" Socket Head Cap Screws
10 Spring Sleeves
11 Footbar Adjustment Cradles
12 Spring Holder [fig. E]
13 Small Swing Arm Bars
14 Large Swing Arm Bars
15 Aluminum Rails
16 Carriage
17 Adjustable Headrest
18 Shoulder Rests
19 Double Loop Straps [fig. F]
20 Serial Number Sticker
21 Star Knobs 3/8" [fig. C & G]
22 Traditional Ropes
23 Traditional Pulleys
24 Stand Up Pulley Springs
25 Pulleys
26 Gearbar [fig. B]
27 Rope Guide Tubes [fig. C]
28 5/8" Bronze Bushings [fig. D]
29 Floating Rollers [fig. D]
30 Fixed Rollers [fig. E]
31 Rubber Carriage Stopper [fig. A]
32 Carriage Stopper Positions [fig. A]
33 Stopper Plates [fig. G]
34 Pulleybar Receptacles [fig. G]
Note: Parts may not be exactly as shown.
