Ss Brewtech Jacketed Unitank User Manual

PT 100 THERMOPROBE
Page 10
5. Loosen set screws marked 1 and 2 and feed one temperature sensor wire into one of the ports.
There is no polarity, so either wire can be used in either port (one wire per port). Tighten set screws to
secure wires in place.
6. Reinstall face plate into plug receptacle and plug back in to the PT100 Thermoprobe. Secure assembly
with screw.
1. Disconnect/unplug units from any power outlets.
2. Remove screw and unplug receptacle from the PT100 Thermoprobe.
3. Use the at head screwdriver slot to remove face of receptacle.
4. Feed temperature sensor wires through receptacle.

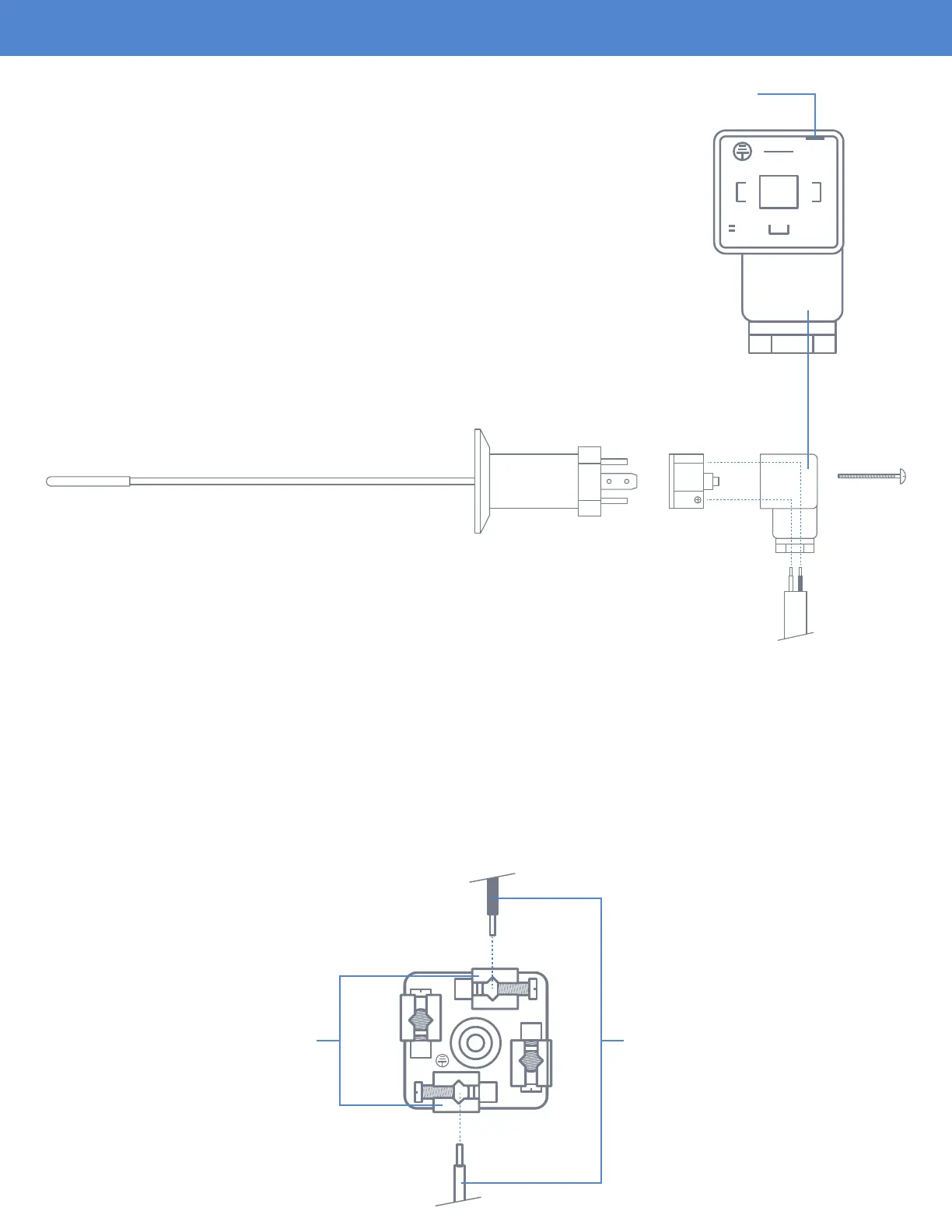

WIRING INSTRUCTIONS
1
2
MSD 3
3
10A
250V
22
3
1
1.5” TC PT100 Thermoprobe Plug Receptacle
Screw
Temperature Sensor
Wires
Use Ports 1 & 2 Temperature Sensor Wires
Screwdriver Insert Slot
