3) CIRCUIT DESCRIPTION

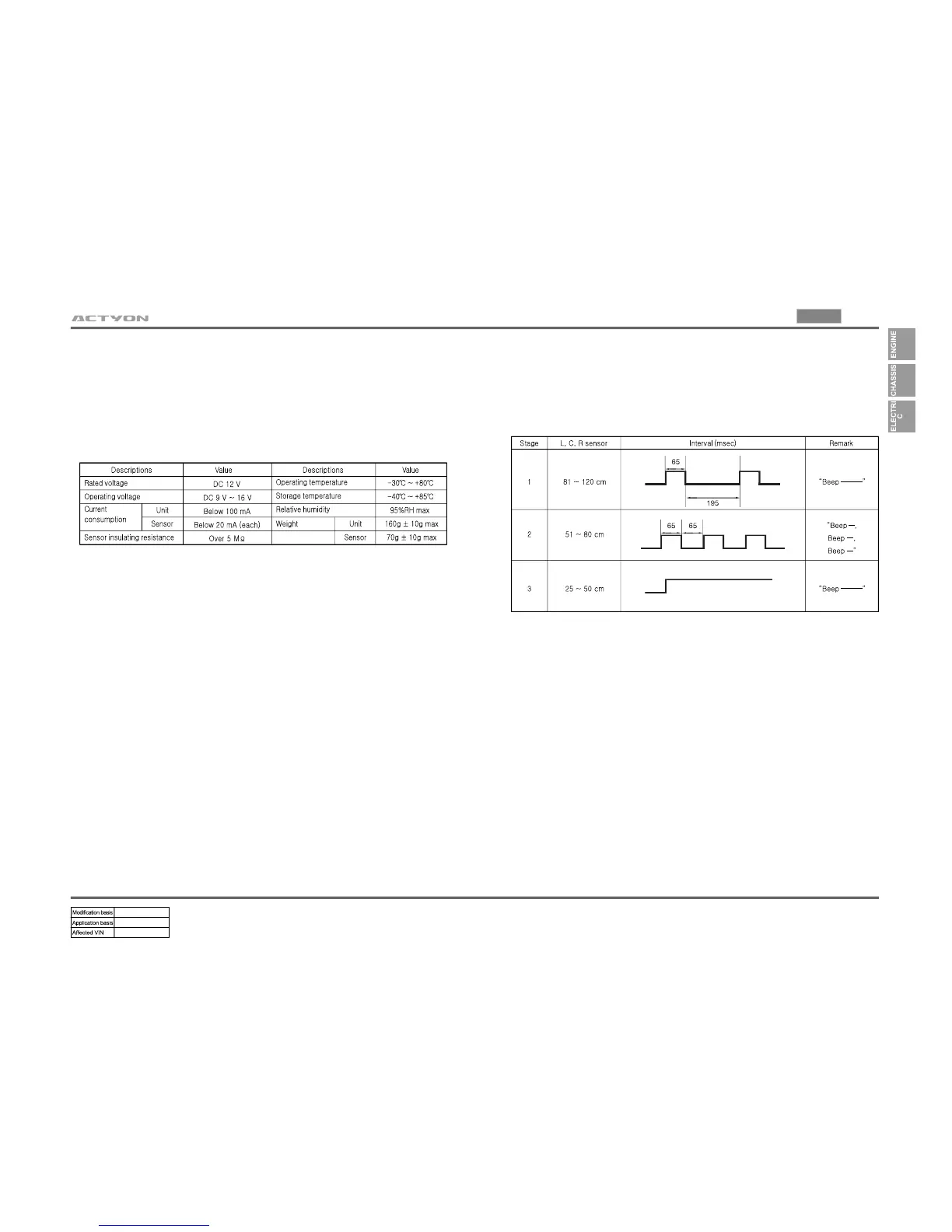

(1) COMPONENT SPECIFICATIONS
The parking aid system emits the supersonic wave signals from the sensors on the rea
selector lever is in “R” position.
The number of displaying bars is decreased and the alarm interval becomes faster as the
obstacle approaches.
This supplementary system is to secure the safety distance for parking.
A. Parking aid unit
Detecting type: Super sonic wave
Detecting distance: 25 ~ 120 cm (distance between sensor and obstacle)
B. Parking aid sensor
Type: Piezo ceramic element
Frequency: 40 KHz ± 2 KHz
Detecting range (13.5 V)
-
-
-
Horizontal: Min. 20° at 110 ± 5 cm Min. 100° at 50 ± 5 cm
Vertical: Min. 20° at 110 ± 5 cm Min. 60° at 50 ± 5 cm
·
·
(2) ALARM INTERVAL
Alarm interval and display changes according to the distance as below:
While reversing, if obstacles are within stage 1, the warning beep sounds with long intervals.
If within stage 2, the warning beep sounds with short intervals and if within stage 3, the
warning beep sounds continuously.
