CTYON 2006.03
3410-01
CIRCUIT
3) CIRCUIT DESCRIPTION
(1) OVERVIEW
The part time transfer case achieves direct connection from the power of the rear wheels to
the power of the front wheels by the lock up hub when selecting 4WD "HIGH" and the powe
is supplied by the sealant chain in the transfer case.
The simple operation of switches on instrument panel allows to shift between “2H” and
“4H” easily while driving.
The warning lamp warns the driver when the system is defective.
The 4WD system integrated in KYRON does not have big difference in comparison to the
conventional part time transfer case, but the changes in comparison to the conventional
transfer case are as follows
No additional coding is required when replacing TCCU.
Delete the devices (tone wheel, wiring etc.) related to the speed sensor in the transfe
case.
This system receives the speed signals from ABS/ESP HECU or instrument panel
(for non-ABS vehicle(Note)) through the CAN communication.
Delete the pin related to the speed sensor from TCCU pins.
Change the transfer case wiring connector from No.4 pin to No.1 pin. (Power and
ground related to the speed sensor)
The new TCCU is available to install on the vehicle with the conventional DI engine
part time TCCU.
-
-
-
-

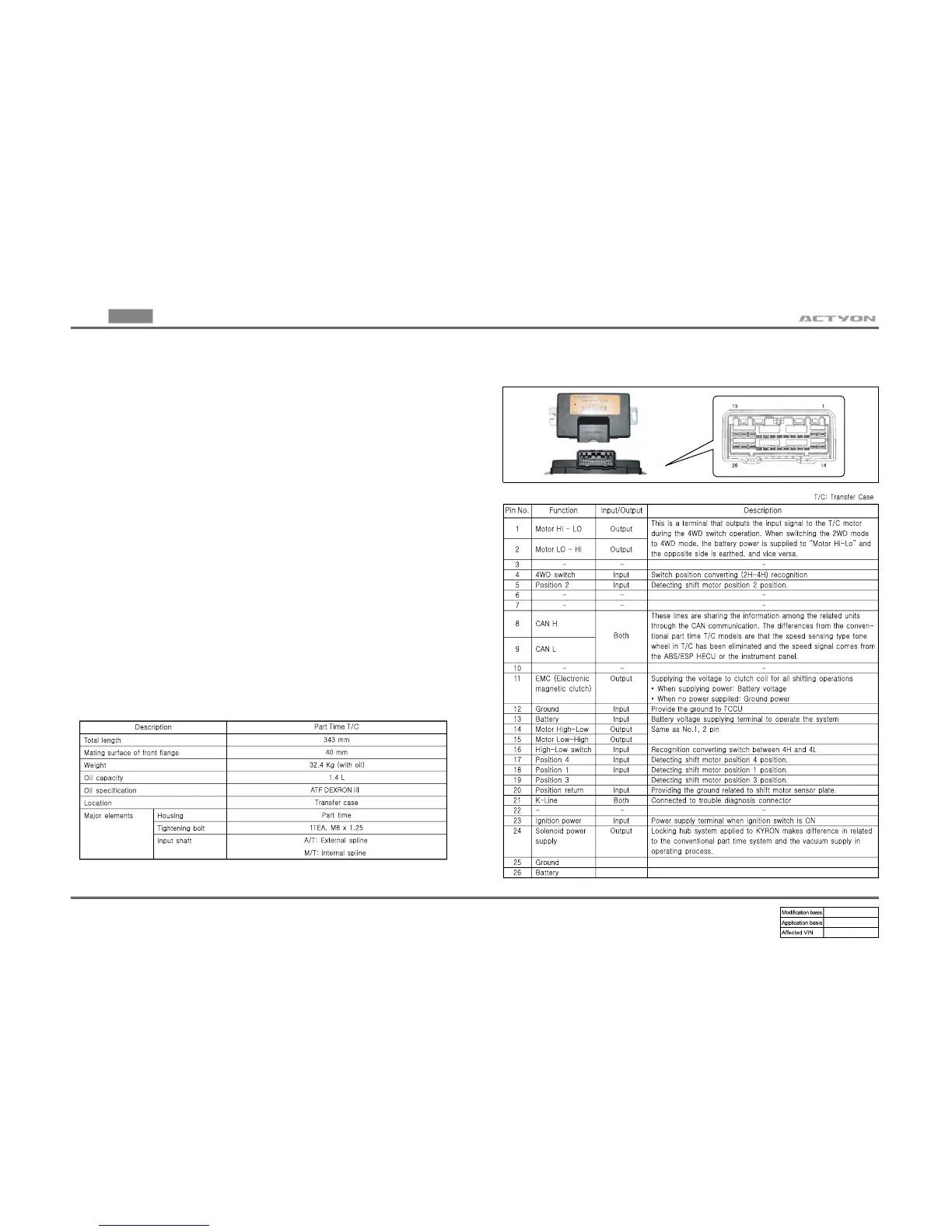

(2) TCCU PIN NUMBERS AND DESCRIPTION
Delete 4L (LOW 4WD)
-
Delete the planetary gear, reduction hub and shift fork.
Add the coupling according to the deletion of the planetary gear.
·
·
SPECIFICATIONS
▶
