CTYON 2006.03
4892-01
CIRCUIT

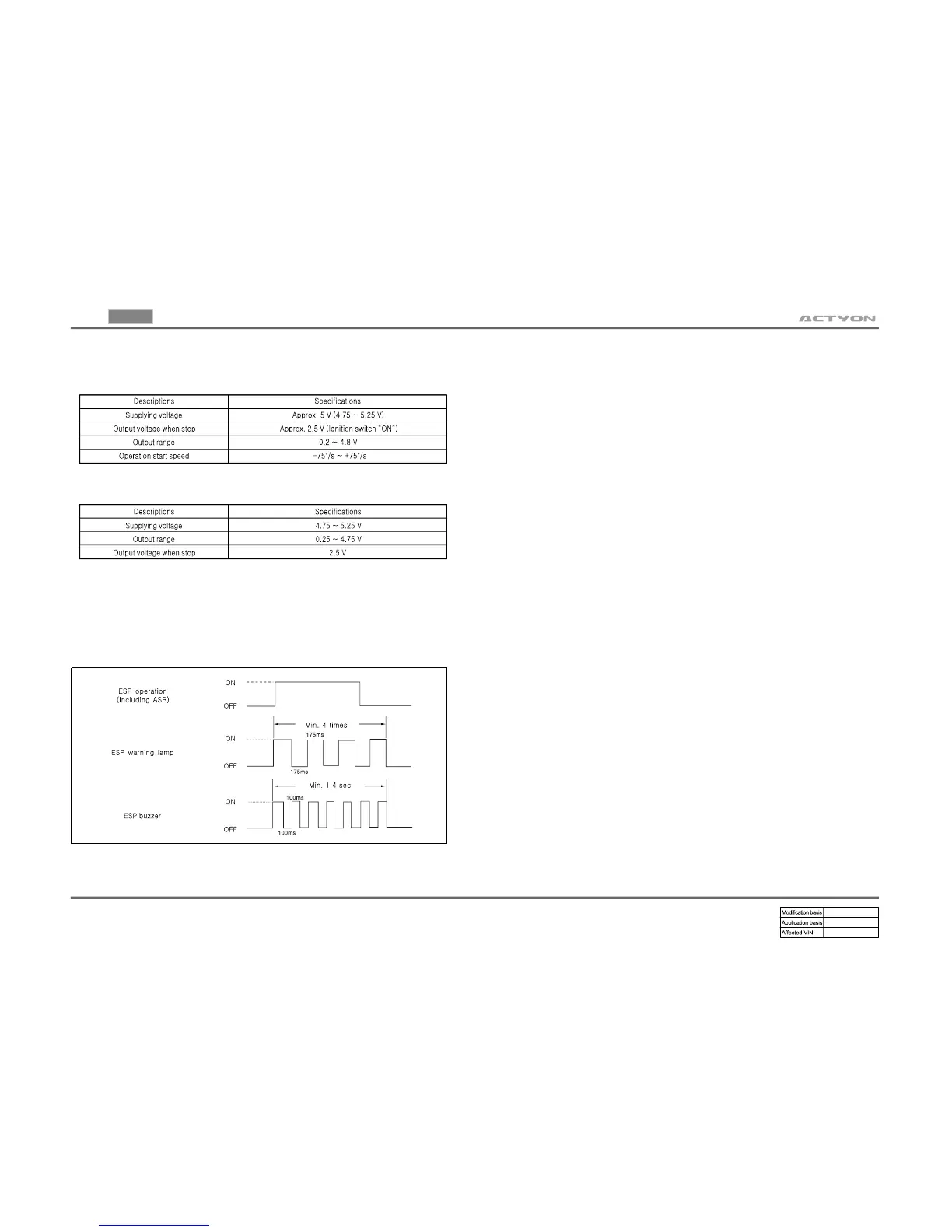

I. SENSOR CLUSTER (YAW RATE SENSOR + LATERAL ACCELERATION SENSOR +
LONGITUDINAL ACCELERATION SENSOR)
J. PRESSURE SENSOR
Specificatons
▶
K. ESP WARNING LAMP BLINKING IN CONTROL
ESP warning lamp blinks when ESP control is activated. If the activation reaches a certain
limitation, a beep sounds to warn the driver.
The ESP warning lamp goes off when ESP function is deactivated.
Even when the ESP is operated for a very short period of time, the ESP warning lamp blinks
minimum of 4 times every 175 milliseconds and the buzzer sounds for at least 1.4 seconds
with 100 ms interval.
L. ESP SYSTEM CANCELLATION USING THE ESP OFF SWITCH
When the ESP switch at the center switch panel is pushed (for over approximately 150 ms),
the ESP system will be cancelled and the vehicle will be driven regardless of the output
values from the corresponding sensors.
Then, the ESP warning lamp on the instrument panel comes on.
M. RESUMING THE ESP SYSTEM BY USING THE ESP OFF SWITCH
The ESP system will be resumed and the ESP warning lamp at the instrument panel goes of
when the ESP switch at the center switch panel is pushed (for over approximately 150 ms)
while the ESP system is not operating.
