Function Check

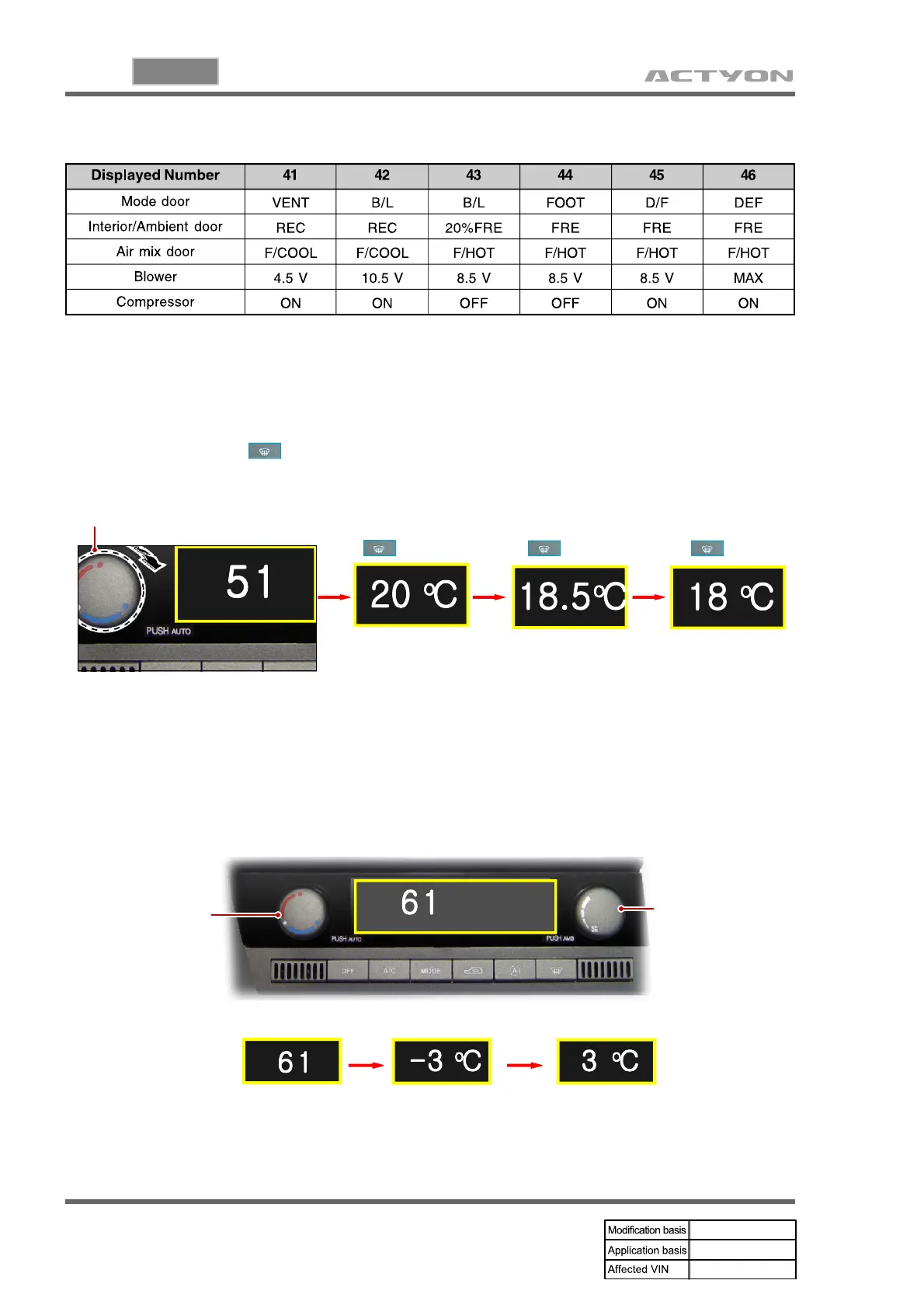

5) Set in Trouble Diagnosis Step 5
In this step, check the conditions of temperature related sensors.
Slightly turn the TEMP switch in step 4 until "51" is displayed on the display window. When
pressing DEF switch , displayed temperature changes as shown below in turns.
Slightly turn to right to set
in
trouble diagnosis step 5.
Ambient air
temperature
Interior air
temperature
Intake air
temperature
Press Press Press
6) Set in Trouble Diagnosis Step 6
In this step, the temperature can be compensated within the range of  to in the
control process according to the temperature to air conditioner controller. The step 6 initiates
when slightly rotating the fan speed switch (other than TEMP switch) in step 5.
Step 6
Min. temperature
compensation value
Max. temperature
compensation value
Compensates the
temperature by
turning TEMP
dial.
Starts the trouble
diagnosis step 6
by turning fan
speed dial.
